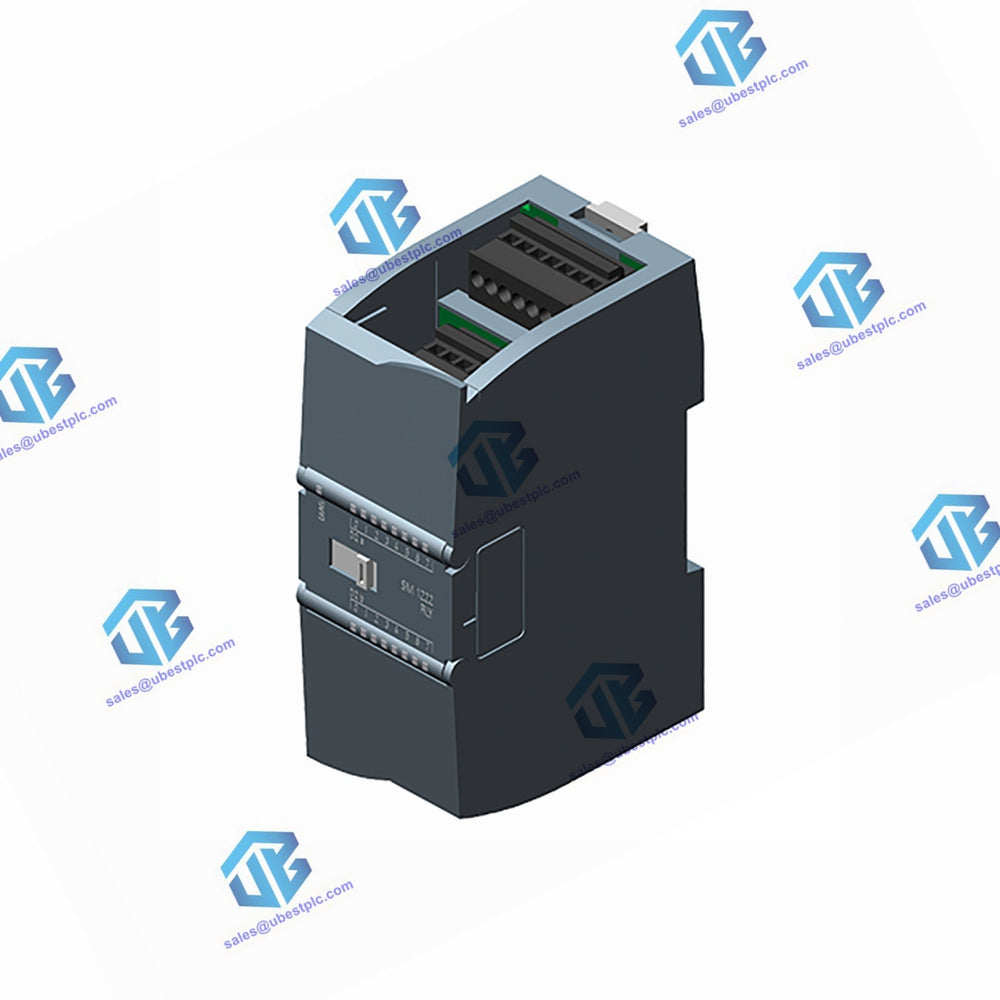

Siemens 6ES7223-1BL32-0XB0: Compact Digital I/O Solution

The 6ES7223-1BL32-0XB0 module adds powerful I/O capabilities to your S7-1200 system. This versatile unit handles both input and output signals efficiently. It connects sensors and actuators to your automation project seamlessly. The compact design saves valuable control cabinet space.

Quick Start Benefits

• Easy installation on S7-1200 PLC systems
• Simple wiring with standard front connector
• Fast configuration in TIA Portal software
• Clear status LEDs for quick troubleshooting

Product Identification

• Brand: Siemens
• Series: SIMATIC S7-1200
• Module Type: Digital I/O SM 1223
• Part Number: 6ES7223-1BL32-0XB0
• I/O Configuration: 16 DI + 16 DO
• Voltage Level: 24V DC standard
• Current Rating: 0.5A per output

Electrical Specifications

• Supply Voltage: 20.4V to 28.8V DC range
• Input Signal: 15V minimum for "1" state
• Input Current: 4mA typical per channel
• Output Capacity: 0.5A maximum per point
• Power Consumption: 4.5W typical loss
• Backplane Current: 185mA at 5V DC

Performance Features

• Configurable input filters from 0.2ms to 12.8ms
• Fast output switching under 200 microseconds
• Support for interrupt-driven applications
• Diagnostic alarm capability for maintenance
• Sink/source input wiring flexibility
• Transistor outputs for long service life
• Grouped isolation for safety

Physical Dimensions

• Width: 70 millimeters compact
• Height: 100 millimeters standard
• Depth: 75 millimeters including connector
• Unit Weight: Approximately 310 grams
• Enclosure Material: Durable plastic
• Protection Rating: IP20 finger-safe

Environmental Ratings

• Operating Range: -20°C to +60°C horizontal
• Storage Temperature: -40°C to +70°C maximum
• Humidity Level: 95% at 25°C non-condensing
• Shock Resistance: 0.3 meter drop tested
• Air Pressure: 660hPa to 1080hPa range

Wiring & Installation

• Cable Length: 500m shielded, 300m unshielded
• Connector Type: Standard front plug
• Wiring Groups: Inputs in pairs, outputs individual
• Isolation Voltage: 500V AC tested separation
• Lamp Load: 5W maximum per output

Global Certifications

• CE Mark for European compliance
• UL and cULus for North America
• CSA certification for Canada
• FM approval for hazardous areas
• RCM for Australia/New Zealand
• KC Mark for Korean markets
• Marine approval for shipboard use

Package Contents

• One complete I/O module unit
• Installation documentation set
• Quality verification documents
• Protective shipping materials

Shipping & Support

• Fast worldwide delivery available
• FedEx express shipping options
• UPS ground and air services
• DHL international express
• Real-time package tracking
• 12-month product warranty

Expert Technical Support

• What applications suit this I/O module best?
• This module works perfectly for machine control, conveyor systems, and packaging equipment with mixed I/O needs.
• How do I protect the outputs from short circuits?
• You must add external fuses or circuit breakers since the module lacks built-in short circuit protection.
• Can I use this module in cold environments?
• Yes, it operates reliably down to -20°C, making it suitable for refrigerated areas and outdoor installations.
• What wiring configuration do the inputs support?
• The inputs work with both sink and source wiring methods, giving you maximum installation flexibility.
• How many outputs can activate simultaneously?
• All 16 outputs can operate together if the total group current stays below the 8A maximum rating.
