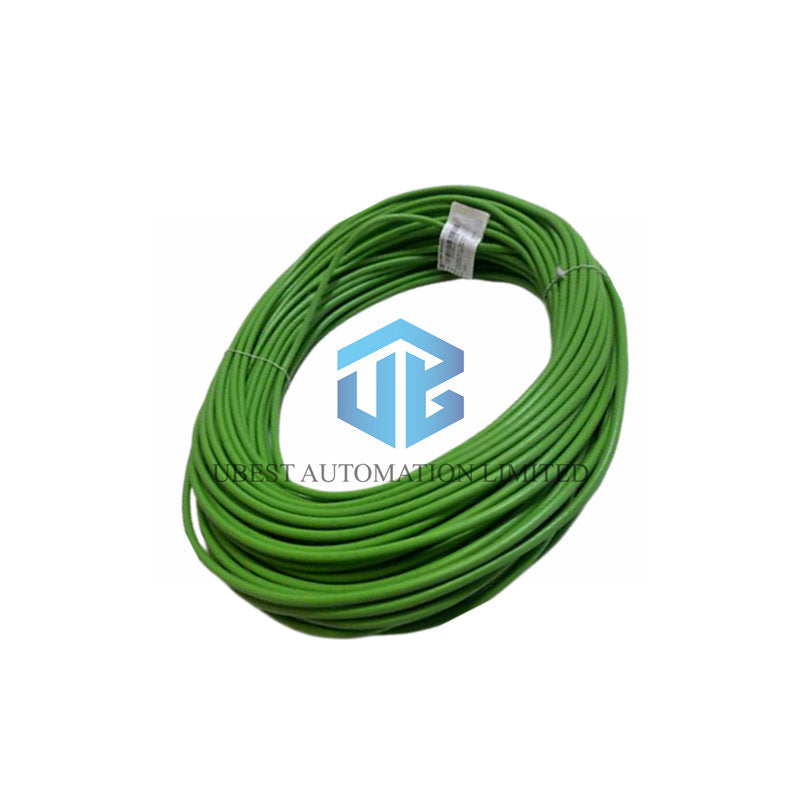

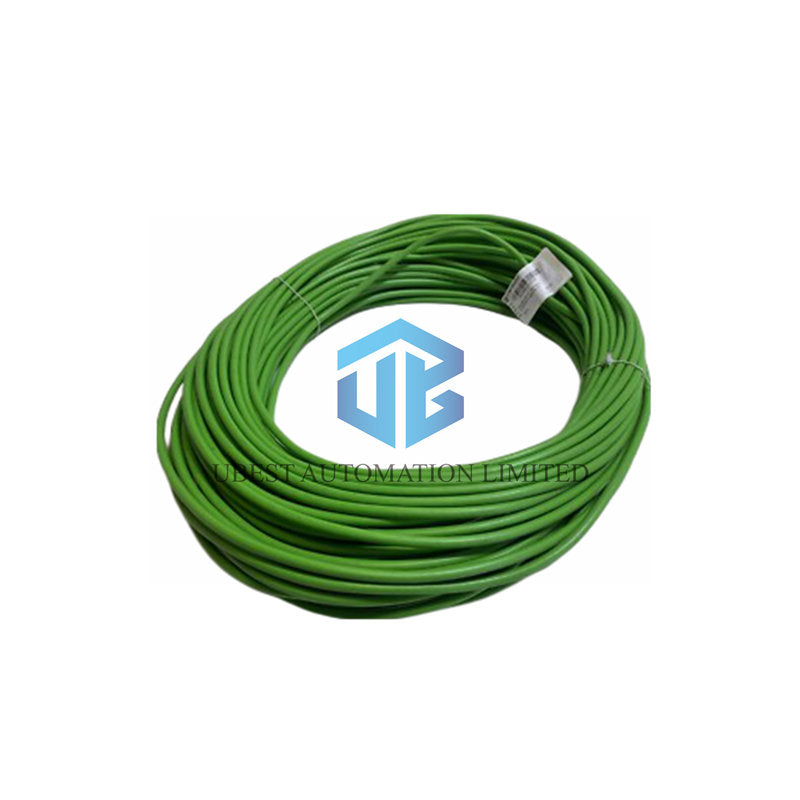

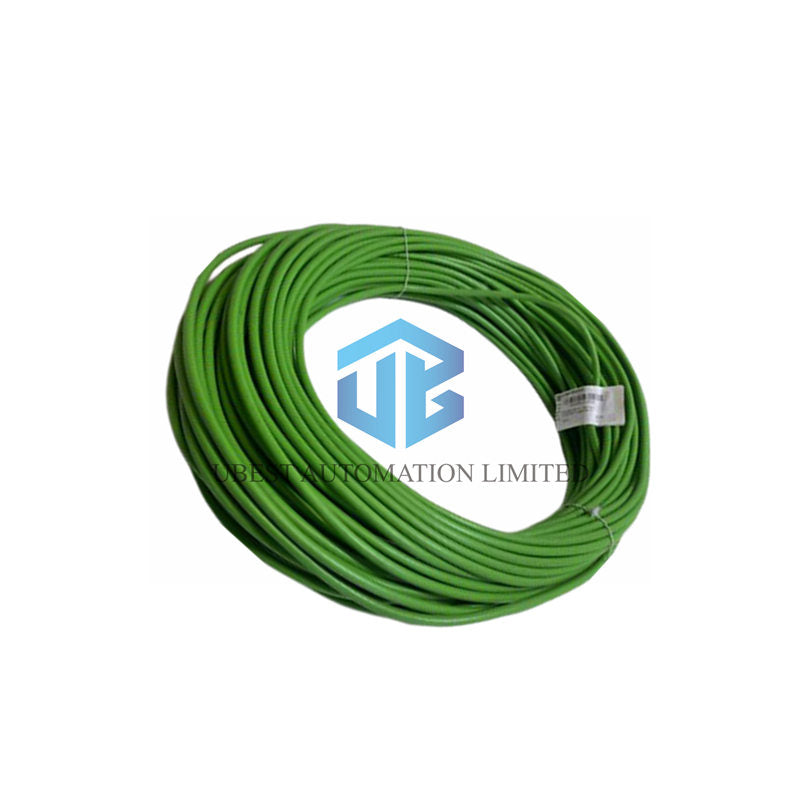

Siemens 6XV1850-0BN30 Industrial Ethernet ITP Cable

The Siemens 6XV1850-0BN30 provides reliable network connectivity for industrial automation systems. This preassembled ITP cable features robust construction for harsh factory environments. Its 30-meter length offers flexible installation between network components and terminals.

Electrical Performance Specifications

• Characteristic Impedance: 100Ω consistent from 1MHz to 300MHz
• Attenuation Performance: Only 0.057dB/m at 10MHz frequency
• Maximum Frequency: Supports up to 300MHz data transmission
• Operating Voltage: 165V RMS with 225V maximum rating
• Loop Resistance: Low 124mΩ/m for efficient power delivery
• Transfer Impedance: 2mΩ/m at 10MHz for excellent EMI protection
• Insulation Resistance: High 5000GΩ·m for superior isolation

Mechanical Construction Details

• Cable Length: 30 meters preassembled ready-to-use design
• Connector Configuration: 9-pin and 15-pin D-sub connectors
• Conductor Size: AWG22 with 0.64mm core diameter
• Shielding System: Double shielded with foil and braided protection
• Cable Diameter: 9.2mm width with 6mm thickness compact design
• Minimum Bend Radius: 30mm for single bend installation
• Maximum Tensile Load: 80N force resistance for durability

Environmental Durability Features

• Temperature Range: -40°C to +70°C full operation capability
• Flame Resistance: Complies with IEC 60332-1 safety standard
• Oil Resistance: Meets IEC 60811-2-1 mineral oil resistance
• IP Protection: IP20 rating for basic environmental protection
• Material Quality: Silicon-free construction with PVC sheath
• Chemical Resistance: Conditional grease resistance for industrial use
• Cable Color: Green sheath for easy identification in panels

Installation & Application Guide

• Network Compatibility: Perfect for Industrial Twisted Pair networks
• Connection Purpose: Links ITP terminals to active network components
• Wire Configuration: 4-core twisted pair with precise twisting
• Installation Tip: Maintain minimum bend radius during routing
• Usage Environment: Suitable for automation cabinets and control rooms

Packaging & Shipping Information

• One complete 6XV1850-0BN30 30-meter ITP cable unit
• Industrial-grade packaging ensuring complete protection
• Worldwide express delivery via FedEx, UPS, and DHL
• Secure packaging prevents damage during transportation
• Quick order processing with same-day dispatch available

Frequently Asked Questions

• What devices can I connect with this cable?
• This cable connects ITP terminals to active network components in SIMATIC systems.
• How does the double shielding improve performance?
• The combined foil and braid shield provides superior EMI/RFI protection in noisy plants.
• Can I use this cable in high-temperature areas?
• Yes, it maintains full performance across the entire -40°C to +70°C temperature range.
• What makes this suitable for industrial use?
• Its oil resistance, flame retardancy, and robust construction meet factory requirements.
• How do I ensure optimal signal quality?
• Respect the minimum bend radius and avoid sharp bends during installation for best results.
