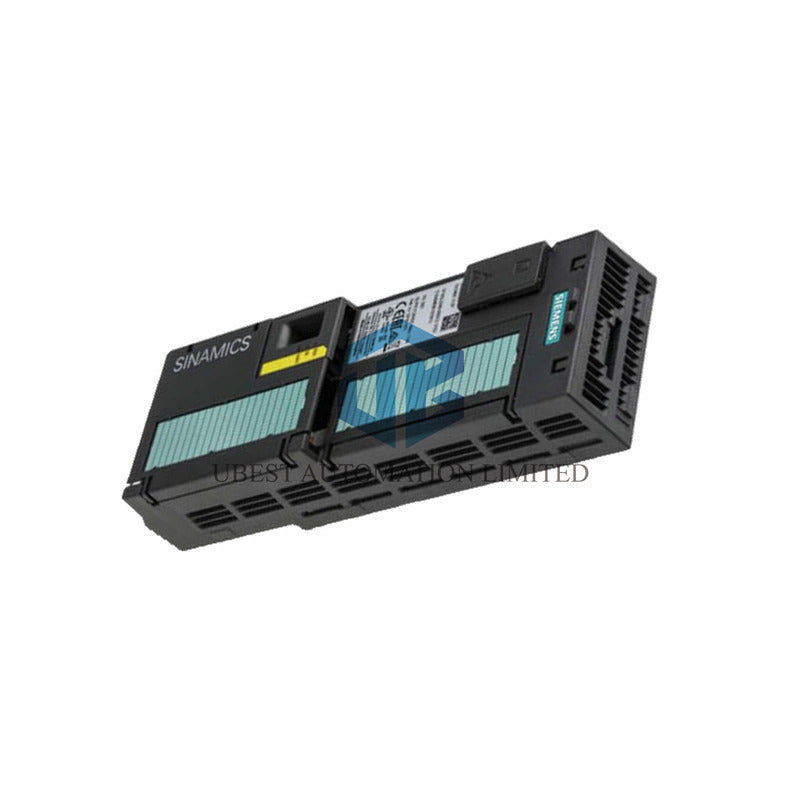

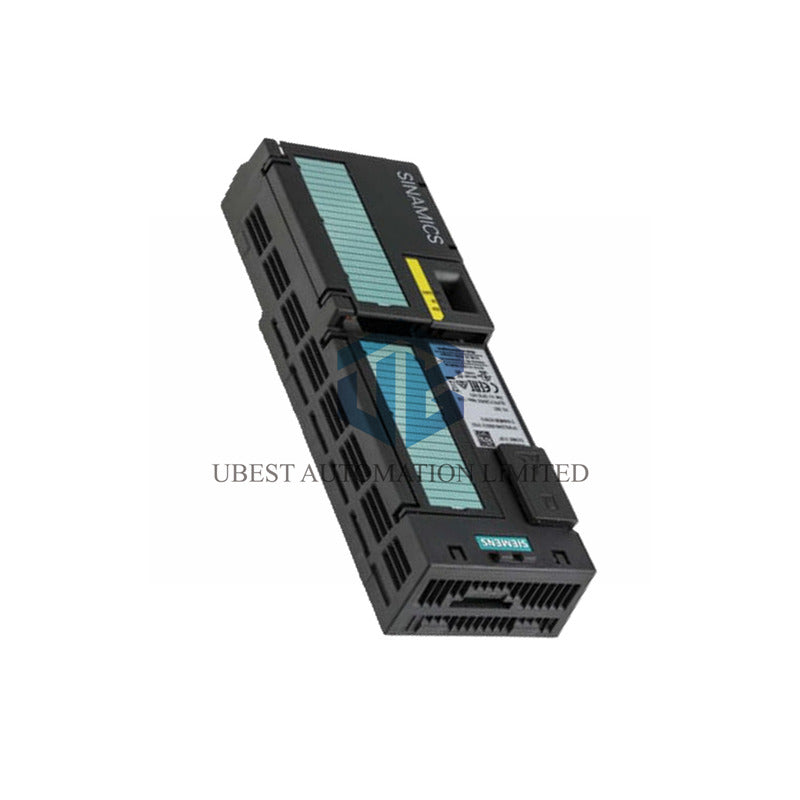

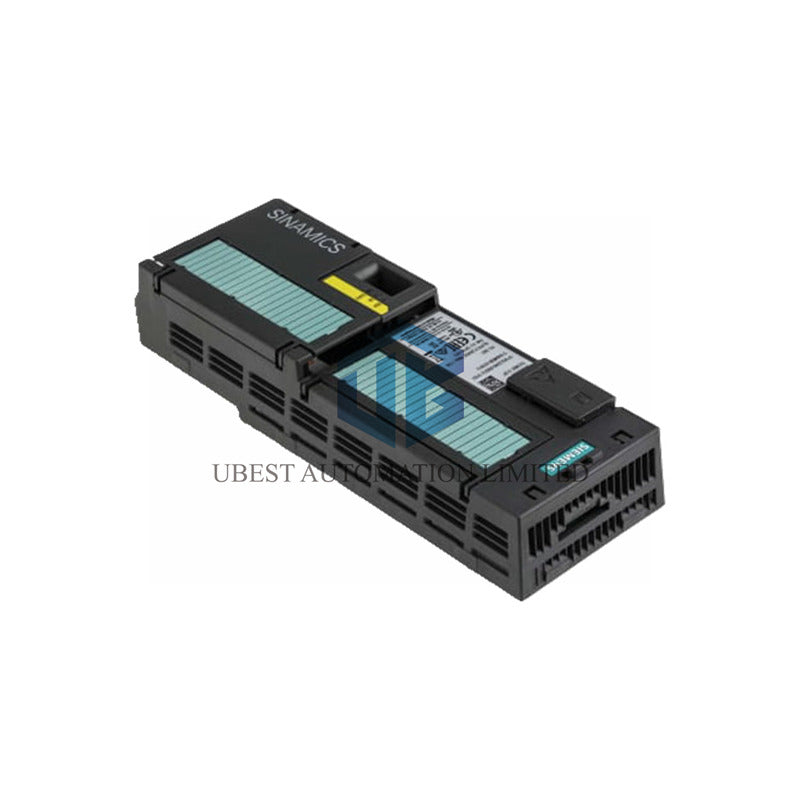

Siemens SINAMICS 6SL3244-0BB12-1PA1 - DP Control Unit
UBEST – Pembekal Alat Ganti Automasi Global yang Dipercayai
Kami menawarkan pelbagai alat ganti automasi industri yang tersedia dalam stok. Semua produk datang dengan jaminan 12 bulan dan pemulangan wang dalam 30 hari untuk isu kualiti.
SINAMICS CU240E-2 DP Control Unit: Reliable Motor Control Solution
- PROFIBUS DP Connectivity: Seamless integration with industrial networks
- Advanced Safety Feature: Includes one fail-safe digital input
- Space-Saving Design: Compact unit for efficient cabinet use
Product Overview
The SINAMICS CU240E-2 DP control unit (6SL3244-0BB12-1PA1) offers precise motor control. It connects via PROFIBUS DP network. Ideal for industrial automation and drive applications.
Technical Specifications
- Article Number: 6SL3244-0BB12-1PA1
- Power Supply Range: DC 20-29 V
- Maximum Current: 0.5 A
- Heat Dissipation: 5.5 W
- Network Protocol: PROFIBUS DP
- Digital Inputs: 6 standard + 1 fail-safe
- Input Voltage Levels: 11V (ON) / 5V (OFF)
- Relay Outputs: 2 changeover contacts
- Analog Interfaces: 2 inputs, 2 outputs
- Control Methods: V/f, FCC, ECO, sensorless vector
- Temperature Range: -10°C to +55°C
- Wire Size: 0.05-1.5 mm² (AWG 28-16)
- Enclosure Rating: IP20
- Unit Weight: 0.49 kg
- Footprint: 73 x 199 x 46 mm
- Certifications: CE, UL, cUL, RCM, SEMI F47
Expert Questions & Answers
What is the benefit of the fail-safe input?
It provides safety functionality for emergency stops or critical safety circuits without extra hardware.
Can this unit operate in cold environments?
Yes, it functions reliably from -10°C, making it suitable for unheated industrial facilities.
What types of motors can it control?
It works with standard three-phase induction motors using various control strategies for optimal performance.
How thin can the signal wires be?
You can use very thin wires down to 0.05 mm² (AWG 28) for space-constrained installations.
Is encoder feedback supported?
No, this model uses sensorless technology, reducing cost and complexity while maintaining good performance.
