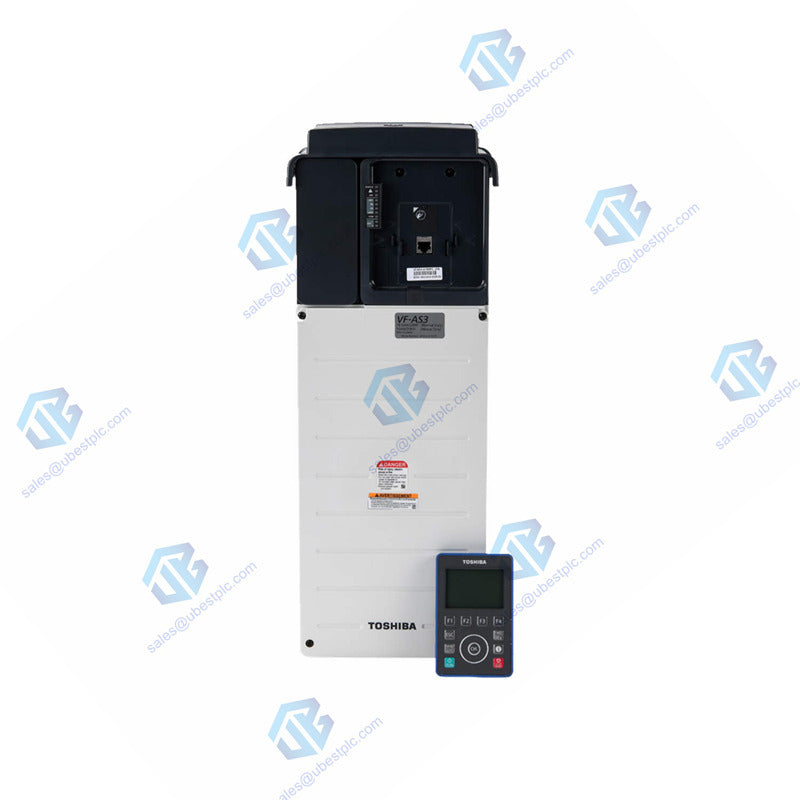

Toshiba VFAS3-4150PC High-Performance 20HP AC Drive

The VFAS3-4150PC delivers robust and precise motor control for medium-power industrial applications. This Toshiba AS3 Series drive provides advanced features in a UL Type 1 enclosure. The unit offers multiple control modes and integrated dynamic braking for demanding operations.

Power Ratings and Electrical Specifications

• Brand: Toshiba Motors & Drives
• Model: VFAS3-4150PC
• Series: Toshiba AS3 Series High-Performance
• Rated Power: 20 HP (15 kW) continuous operation
• Output Current: 31.7 Amps at 150% overload for 60 seconds
• Variable Torque Current: 39.2 Amps for fan and pump loads
• Input Voltage: 460 VAC, three-phase, 50/60 Hz
• Output Voltage: 0-460 VAC, three-phase variable frequency
• Frequency Range: 0.1 Hz to 590 Hz ultra-wide control
• Carrier Frequency: 1 kHz to 16 kHz adjustable PWM
• Control Methods: V/Hz, Flux Vector Control (FOC), encoder feedback, or direct torque

Physical Dimensions and Construction

• Unit Height: 21.80 inches (553.7 mm) including connections
• Unit Width: 8.30 inches (210.8 mm) compact design
• Unit Depth: 9.20 inches (233.7 mm) from mounting surface
• Enclosure Rating: UL Type 1, IP20 for indoor industrial use
• Frame Size: A3 design for medium-power applications
• Mounting: Panel or wall mounting with standard brackets
• Built-in DC reactor and EMC filter for power quality
• Integrated conduit box for easy electrical connections

Control Interface and I/O Capabilities

• Eight discrete digital inputs (24VDC) with sinking/sourcing
• Three relay outputs (1 Form C, 2 Form A) for control signals
• Three analog inputs (11-bit resolution) for precise reference
• Two analog outputs (10-bit resolution) for monitoring signals
• Integrated Safe Torque Off (STO) safety function included
• Built-in dynamic braking for controlled motor stopping
• User sequence programming for custom automation logic
• Screw terminal connections for reliable industrial wiring

Communication and Network Features

• Dual Ethernet ports (RJ45) with 10/100 Mbps speed
• One RS-485 serial communication port (RJ45 connector)
• Supported Protocols: EtherNet/IP, Modbus TCP, Modbus RTU
• Built-in web server for configuration via standard HTTP
• Optional EtherCAT card for high-speed motion control
• Optional encoder and additional I/O expansion cards
• High noise immunity ensures stable operation in electrical noise

Environmental and Installation Data

• Operating Temperature: -15°C to +50°C (5°F to 122°F)
• Storage Temperature: -25°C to +70°C (-13°F to 158°F)
• Relative Humidity: 5% to 95% non-condensing maximum
• Installation Altitude: Up to 1000 meters without derating
• Cooling Method: Forced air or natural convection depending on load
• Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
• Vibration Resistance: 5.9 m/s² maximum during operation

Package and Shipping Contents

• One complete Toshiba AS3 Series AC drive unit
• All necessary mounting hardware and connection accessories
• Comprehensive operation manual and programming guide
• Memory backup battery (CR2032) pre-installed in the unit
• Terminal connection diagrams and safety documentation
• Fast worldwide shipping via FedEx, UPS, or DHL services

Frequently Asked Questions

• What is the difference between constant and variable torque ratings? Constant torque rating (31.7A) is for conveyors; variable torque (39.2A) is for centrifugal loads like pumps.
• How does the integrated dynamic braking benefit my application? The braking circuit allows faster stopping of high-inertia loads without mechanical wear on brakes.
• Can I control this drive remotely using a smartphone or tablet? Yes, connect to the built-in web server via Ethernet for monitoring and basic control from a browser.
• What size electrical enclosure do I need for this 20HP drive? Allow adequate space for cooling air circulation around all sides of the unit as specified in the manual.
• How do I select between V/Hz and Flux Vector Control modes? Use V/Hz for simple applications; choose FOC for precise speed control or high starting torque requirements.
