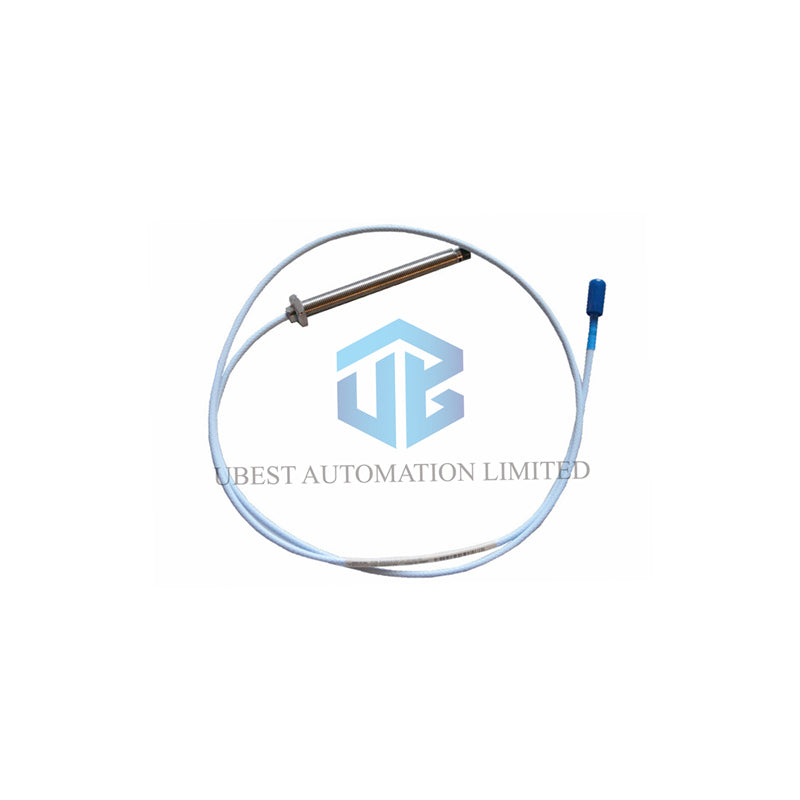

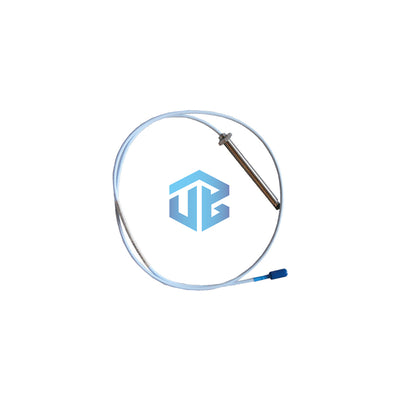

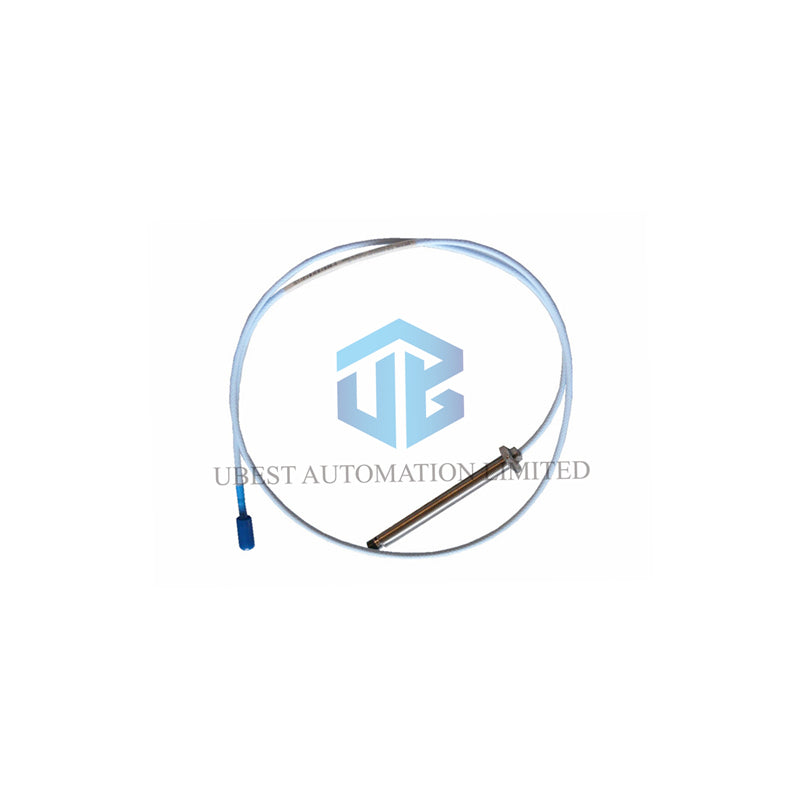

Bently Nevada 3300 XL 8 mm Probe: 330103-02-06-05-02-00

Product Identification

• Manufacturer: Bently Nevada
• Product No.: 330103-02-06-05-02-00
• Product Type: 3300 XL 8 mm Proximity Probes, Metric
• Probe Tip Material: Polyphenylene sulfide (PPS) – excellent chemical resistance
• Probe Case Material: AISI 303 or 304 stainless steel for durability

Complete Suffix Information

• 330103 – 3300 XL 8 mm Probe, M10 x 1 thread, without armor
• 02 – Unthreaded length: 20 mm
• 06 – Overall case length: 60 mm
• 05 – Total length: 0.5 meter (1.6 feet)
• 02 – Miniature coaxial ClickLoc™ connector, standard cable
• 00 – Agency approval: Not required

Technical Specifications

• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm. Output spans -1 to -17 Vdc. We recommend a -9 Vdc gap setting for radial vibration.
• Frequency Response: System supports dynamic measurements. Figures 10 and 12 show signal roll-off with long cables.
• Sensitivity: 7.87 V/mm nominal. Linearity remains tight across the full range.
• DC Resistance: 7.45 ± 0.50 Ω (for 0.5 m length) from center conductor to outer conductor.
• Temperature Range: Standard probe operates -52°C to +177°C. Probe tip withstands up to +218°C. Exposing below -34°C may affect pressure seal integrity.
• Humidity Resistance: Less than 3% ASF change after 56 days at 93% humidity (IEC 68-2-3).
• Pressure Sealing: Viton® O-ring design seals differential pressure. We do not pressure test before shipment. Contact us if you require a test.
• Field Wiring: Use 0.2 to 1.5 mm² (16-24 AWG) shielded triad cable. Maximum length between Proximitor and monitor is 305 meters.
• Thread Specification: M10 x 1, maximum thread engagement 15 mm.
• Weight: 323 g/m (11.4 oz/ft). Total weight approx. 161 g for 0.5 m probe.
• Hazardous Locations: Meets Class I, Zone 0 AEx/Ex ia IIC T5…T1 Ga when installed with barriers per drawing 141092.

Frequently Asked Questions

• Q: What is the linear range of the 330103-02-06-05-02-00?
  A: The 3300 XL 8mm Probe offers a 2 mm linear range (0.25 to 2.3 mm), corresponding to -1 to -17 Vdc output.
• Q: Can I use this 0.5 meter probe with standard Proximitors?
  A: Yes, it works with all 3300 XL Proximitor sensors. Follow cable length guidelines.
• Q: What does suffix 00 mean for approvals?
  A: Suffix 00 means no agency approvals are marked. The probe still meets safety standards when properly installed with barriers.
• Q: Does the probe tip resist harsh chemicals?
  A: Yes, the PPS tip provides excellent chemical and temperature resistance.
• Q: How long is delivery time?
  A: We typically ship within 24 hours via FedEx, UPS, or DHL.
