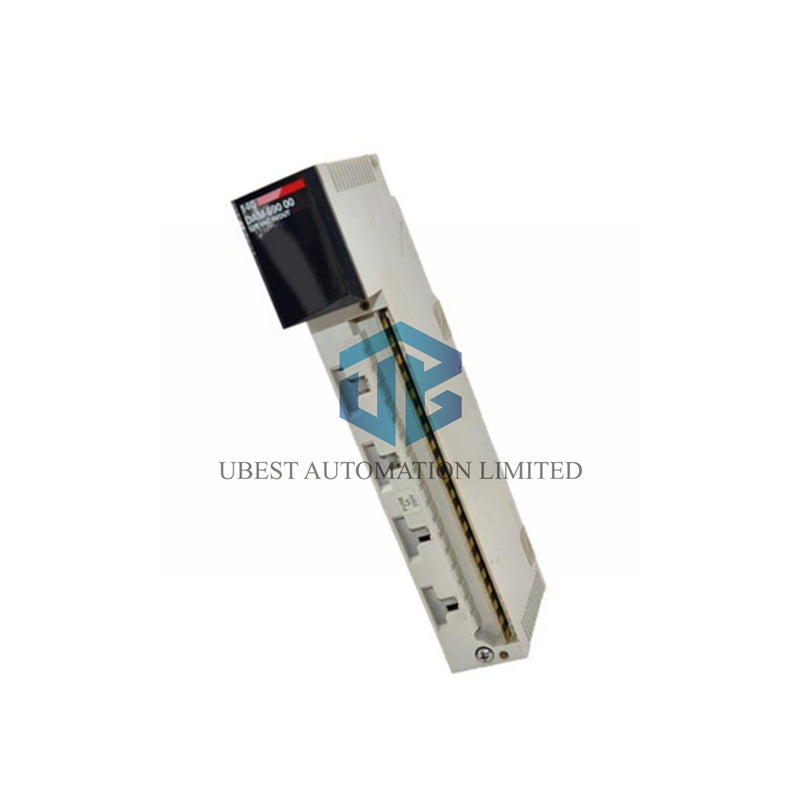

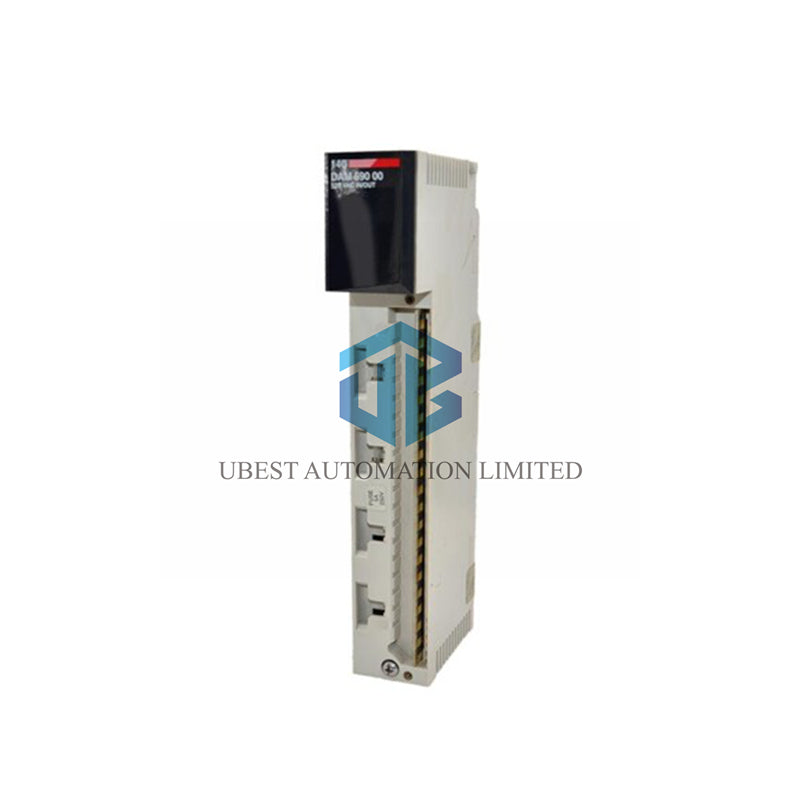

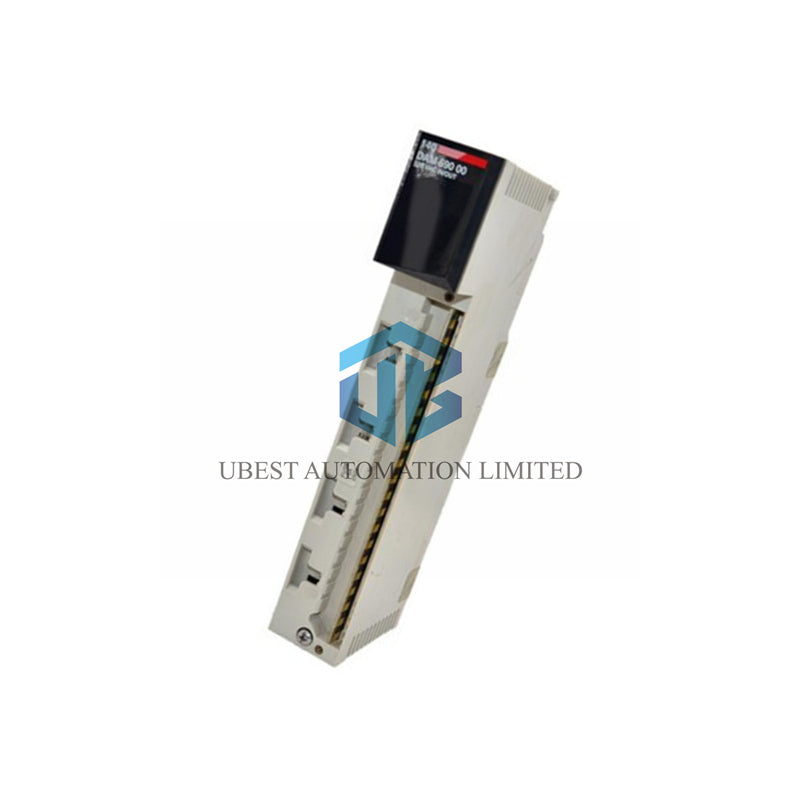

Schneider Electric 140DAM59000 Mixed I/O Module
- Combined 16 inputs and 8 outputs in one module
- 115V AC industrial voltage rating
- Solid-state reliability for long service life
- Protected by 12-month quality guarantee
- Express shipping with FedEx, UPS, DHL
All-in-One I/O Solution
The 140DAM59000 combines inputs and outputs for complete control. This mixed module handles 16 AC inputs and 8 solid-state outputs. Perfect for space-saving control panel designs.
Key Specifications
Input Channels: 16 at 115V AC
Output Channels: 8 solid-state
Output Type: Solid-state reliability
Current Capacity: 4A per point
Response Time: 0.5ms output switching
Isolation: 1000V between groups
Protection: 5A fuses per output group
Power Consumption: 250mA from bus
Technical Details
Product Type: Mixed Discrete I/O Module
Brand: Schneider Electric
Model: 140DAM59000
Platform: Modicon Quantum
Voltage Rating: 115V AC
Input Groups: 2 groups of 8
Output Groups: 2 groups of 4
Module Weight: 0.99 lbs (0.45 kg)
Country Origin: France
Module Features
• Combined I/O saves space and cost
• Solid-state outputs for long life
• Fuse protection for safety
• LED status indicators
• Industrial temperature operation
Frequently Asked Questions
What devices can this module control?
Inputs read sensors and switches. Outputs drive contactors, motor starters, and industrial loads up to 4 amps.
How are the channels grouped?
Inputs in two groups of eight. Outputs in two groups of four. Each group has separate isolation and protection.
What is solid-state output advantage?
Longer life than relays. Faster switching and no moving parts to wear out. Perfect for frequent cycling.
How is the module protected?
Each output group has 5A fuse. RC filtering protects against voltage spikes. Designed for industrial harshness.
Can it handle motor loads?
Yes, with proper sizing. The 4A rating handles small motors. Use contactors for larger motor applications.
