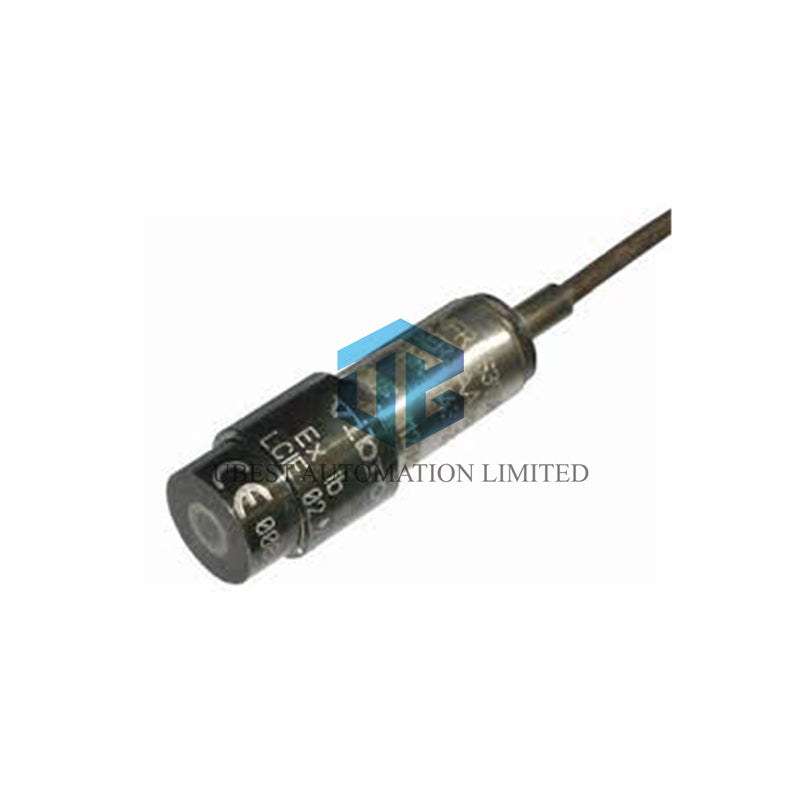

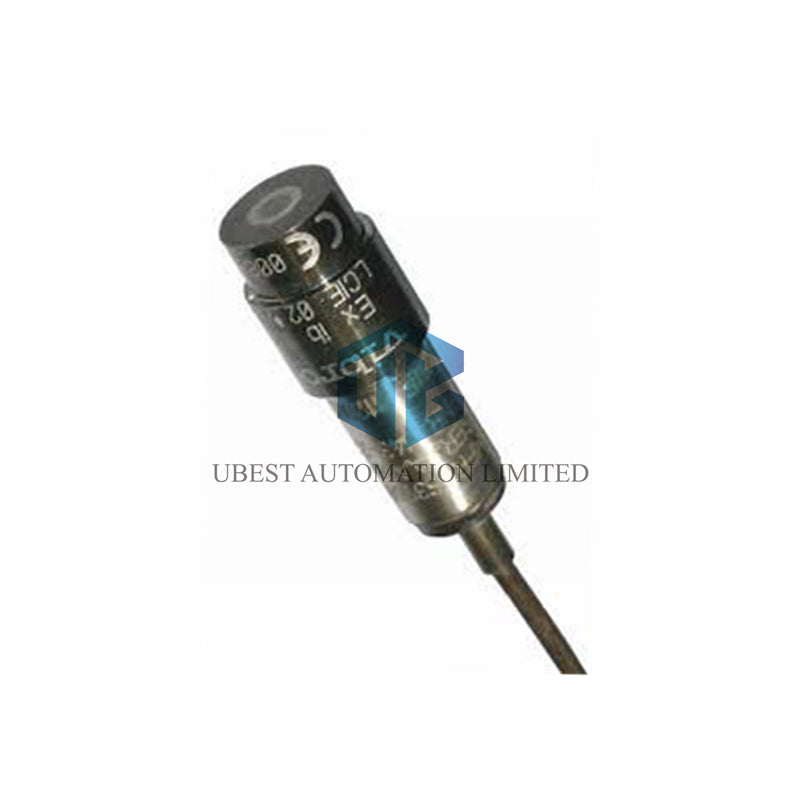

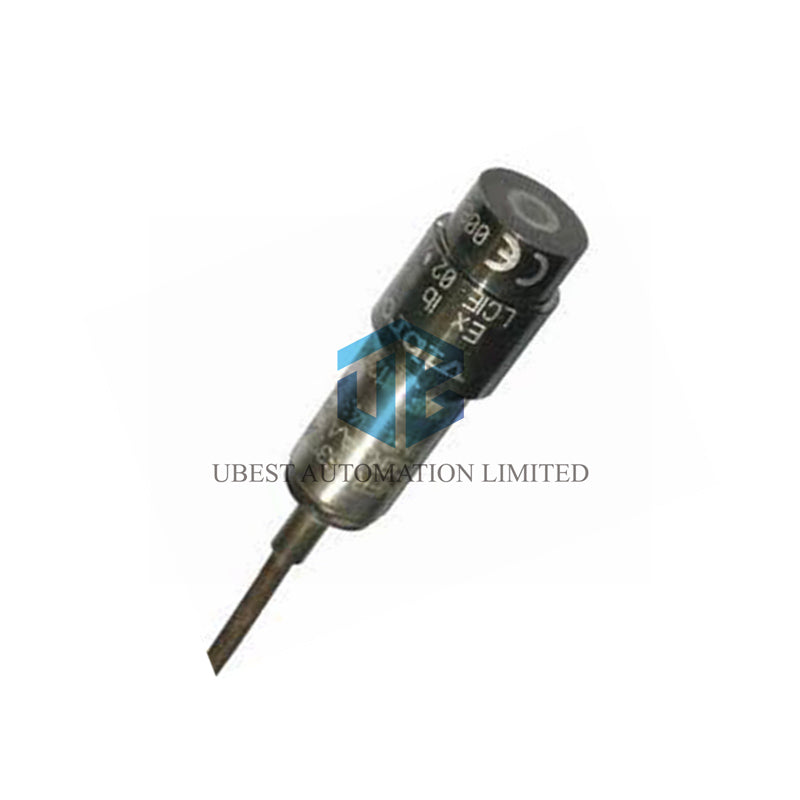

Vibro Meter CP216 High-Temp Pressure Transducer with 2m Cable

Master extreme conditions with the Vibro Meter CP216 featuring 2-meter high-temperature cable. Engineered for precision pressure measurement in the most challenging industrial environments.

• 2-meter high-temp cable for flexible installation
• Ultra-wide operating range from -70°C to 520°C
• Robust 350 bar maximum pressure capacity
• Fast 15 kHz response for dynamic measurements
• Explosion-proof design for hazardous areas

Product Overview

Brand: Vibro Meter

Model: CP216 High-Temperature Version

Part Number: 143-216-000-141

Cable Spec: 2-meter mineral insulated

Technical Specifications

Pressure Range: 0.0005 to 250 bar

Overload Protection: 350 bar spikes

Sensitivity Accuracy: 200 pC/bar ±2%

Non-linearity: < 0.8% full scale

Repeatability: ±0.3% FS

Performance Data

Frequency Response: 2 Hz to 15 kHz (±5%)

Rise Time: < 50 microseconds

Settling Time: < 2 milliseconds

Bandwidth: DC to 15 kHz

Environmental Ratings

Operating Temp: -54°C to +470°C

Peak Temp: 520°C short term

Connector Temp: -70°C to +650°C

IP Rating: IP68 equivalent

Electrical Properties

Output Signal: Charge mode

Insulation: >1 GΩ at 25°C

Capacitance: 720 pF total with cable

Polarization: Internal permanent

Physical Details

Total Weight: 62 grams complete

Cable Type: Mineral insulated stainless

Housing Material: NIMONIC alloy 90

Sealing: Hermetic laser weld

Installation Guide

Mount with standard industrial fittings. Use high-temperature thread sealant. Ensure cable has gentle bends without sharp kinks.

Application Areas

Gas turbine monitoring • Combustion research • Engine test stands • Industrial furnace control • Aerospace testing

Quality Features

Factory calibrated • Radiation resistant • Hermetically sealed • Industrial certification

Package Contents

• Vibro Meter CP216 transducer
• 2-meter high-temperature cable
• Special high-temp connector
• Calibration certificate
• Installation instructions

Shipping & Support

12-month performance warranty
Fast delivery via FedEx, UPS, DHL
Global shipping available

Expert Answers

What is the advantage of the 2-meter cable length?

Provides installation flexibility while maintaining signal integrity in high-temperature environments up to 650°C.

How does it handle thermal cycling?

Designed for repeated thermal cycling between extreme temperatures without performance degradation.

What is the expected service life?

Typical service life exceeds 8 years in continuous operation at maximum rated temperatures.

Can it measure static pressures?

Designed for dynamic pressure measurement. Requires special conditioning for static pressure applications.

Is special training needed for installation?

Standard industrial practices apply. Follow provided installation guide for optimal performance.
