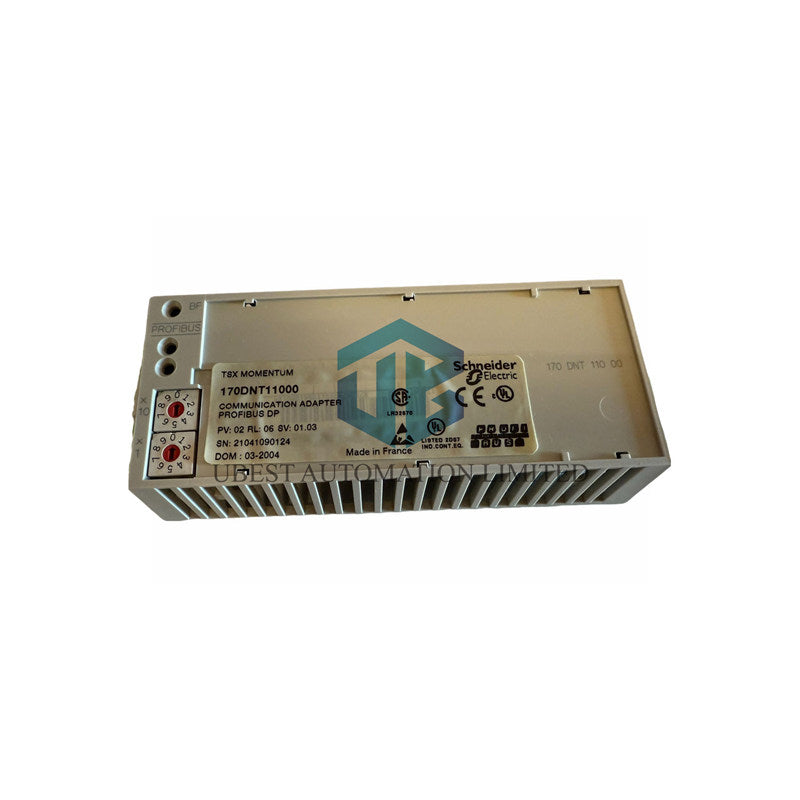

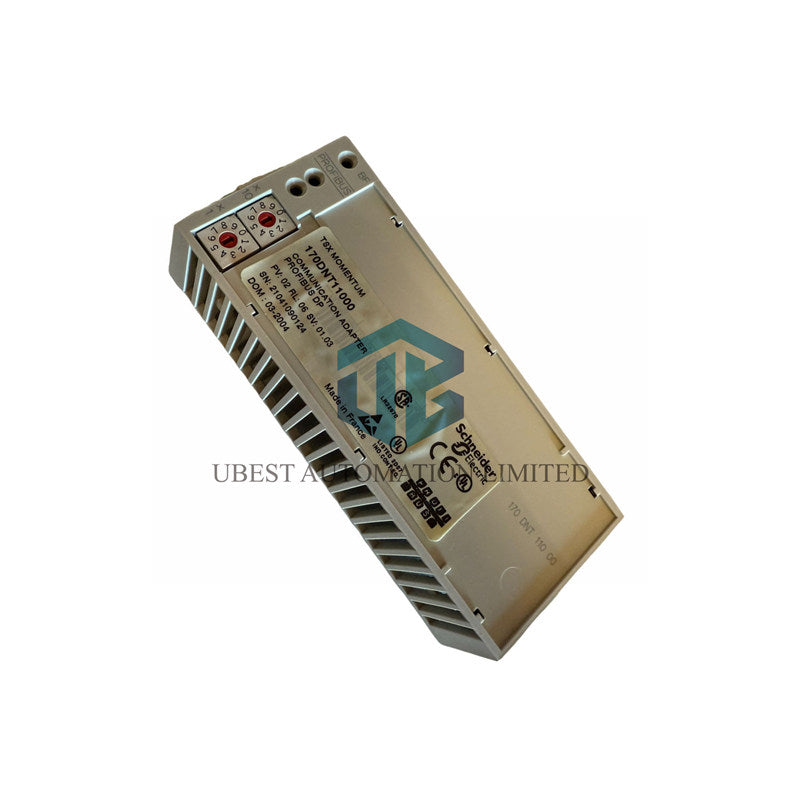

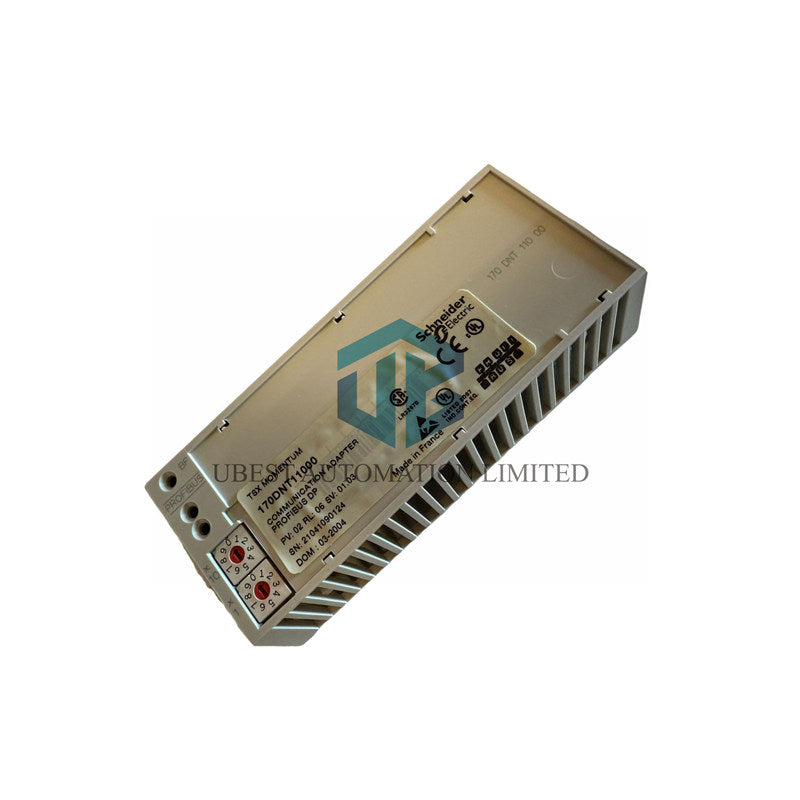

Schneider Electric 170DNT11000 Profibus DP Communication Adaptor

• Fast Shipping: Available for immediate dispatch
• Genuine Product: Original Schneider Electric quality
• Easy Setup: Simple network integration

Product Overview

The Schneider Electric 170DNT11000 is a high-speed communication adaptor. This reliable 170DNT11000 module uses Profibus DP protocol. Supports fast data transfer from 9.6 to 12 Mbit/s. Works with twisted pair cables. Perfect for industrial networks. Part of the trusted Modicon Momentum series.

Technical Specifications

Brand: Schneider Electric

Model: 170DNT11000

Product Type: Communication Adaptor

Protocol: Profibus DP

Data Rate: 9.6 kbit/s to 12 Mbit/s

Cable Type: Twisted Pair

Max Devices: 126 nodes

Max Distance: 1200 meters

Connector: 9-pin SUB-D

Protection: IP20 rating

Operating Temp: 0°C to 60°C

Storage Temp: -40°C to 85°C

Humidity: 95% non-condensing

Error Check: CRC-16

Addressing: Switch-selectable

Certifications: UL, CSA approved

Weight: 0.19 lbs (0.09 kg)

Installation & Support

Easy DIN rail mounting. Use twisted pair cables. Set address with switches. We provide 12-month quality warranty. Fast delivery via FedEx, UPS, DHL.

Frequently Asked Questions

How many devices can connect to this adaptor?

It supports large networks with up to 126 devices.

What is the maximum data speed?

High-speed operation up to 12 Mbit/s transfer rate.

What cable length is supported?

Long distance cabling up to 1200 meters maximum.

Can it work in hot environments?

Yes, operates in temperatures up to 60 degrees Celsius.

What type of connector does it use?

Standard 9-pin SUB-D connector for easy wiring.
