1746-OVP16 | Allen-Bradley SLC 500 DC Output Module - 16 Point
Manufacturer:
Allen-Bradley
Product No.:
1746-OVP16
Condition:
In Stock
Product Type:
Digital DC Output Module
Product Origin:
USA
Weight:
500g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

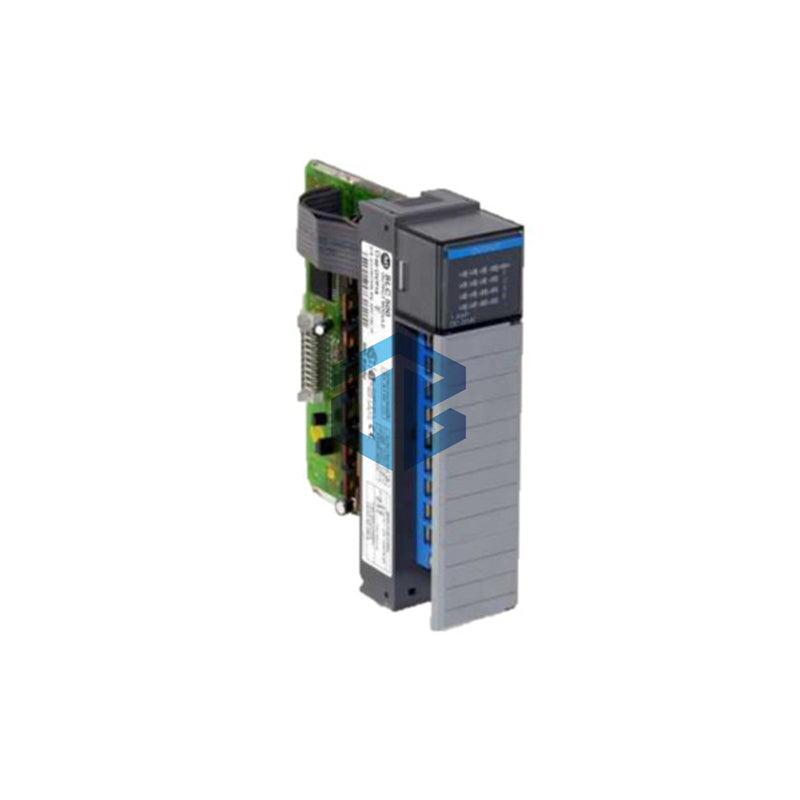

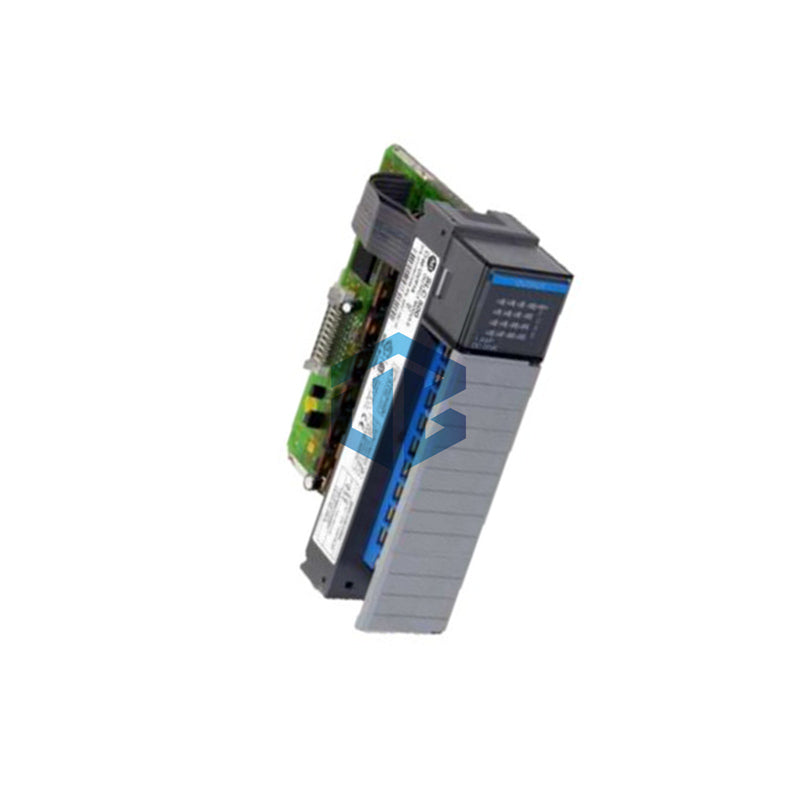

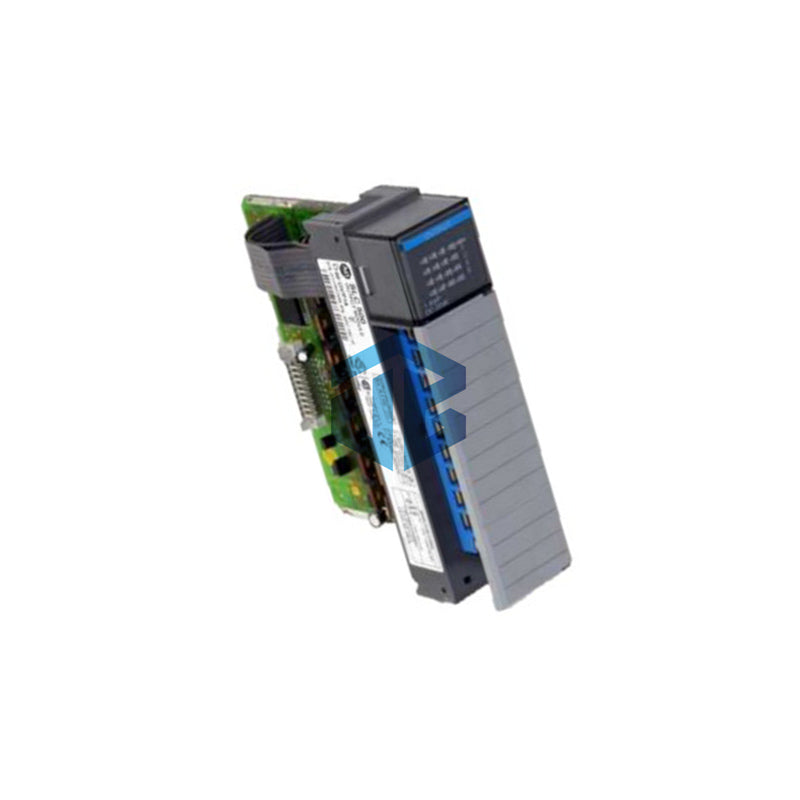

Allen-Bradley 1746-OVP16 Digital DC Output Module
The Allen-Bradley 1746-OVP16 delivers reliable performance for industrial control systems. This 16-point DC output module handles high current applications with precision. It offers robust protection features and easy installation.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1746-OVP16
- Series: SLC 500
- Module Type: Digital DC Output
- Voltage Range: 20.4-26.4V DC Sink
- Number of Outputs: 16 points
- Current per Output: 1.5A continuous
- Module Current: 6.4A maximum
- Backplane Current: 250mA at 5V DC
- Response Time: 60ms ON, 2.5ms OFF
- Operating Temperature: 0 to 60°C
- Power Dissipation: 6.26W maximum
Key Features
- High current capacity for demanding applications
- Fused common with LED indicator for safety
- Short-circuit and overload protection
- Removable terminal blocks for easy wiring
- LED status indicators for each output point
- Compact design saves panel space
Installation Guide
- Mount in any SLC 500 1746 series chassis
- Use proper wiring techniques for power connections
- Verify voltage requirements before applying power
- Check fuse status using LED indicators
- Ensure adequate ventilation for heat dissipation
Package Contents
- One 1746-OVP16 module
- Installation documentation
- Product specification sheet
Shipping Information
- We ship worldwide using FedEx, UPS, and DHL
- Fast processing and delivery times
- Tracking information provided for all orders
Frequently Asked Questions
What is the maximum current per output on the 1746-OVP16?
- Each output supports 1.5A continuous current at 30°C ambient temperature.
Does this module include short-circuit protection?
- Yes, it features fused common circuits with blown fuse indicators.
What type of terminal blocks does the module use?
- It uses color-coded removable terminal blocks for easy installation.
Can I use this module in high-vibration environments?
- Yes, it withstands 30g operational shock and industrial vibrations.
What is the backplane power requirement?
- It requires 250mA at 5V DC from the backplane power supply.
Documentation Download
- Get the complete technical manual for the 1746-OVP16 module. Download the specification sheet here.
