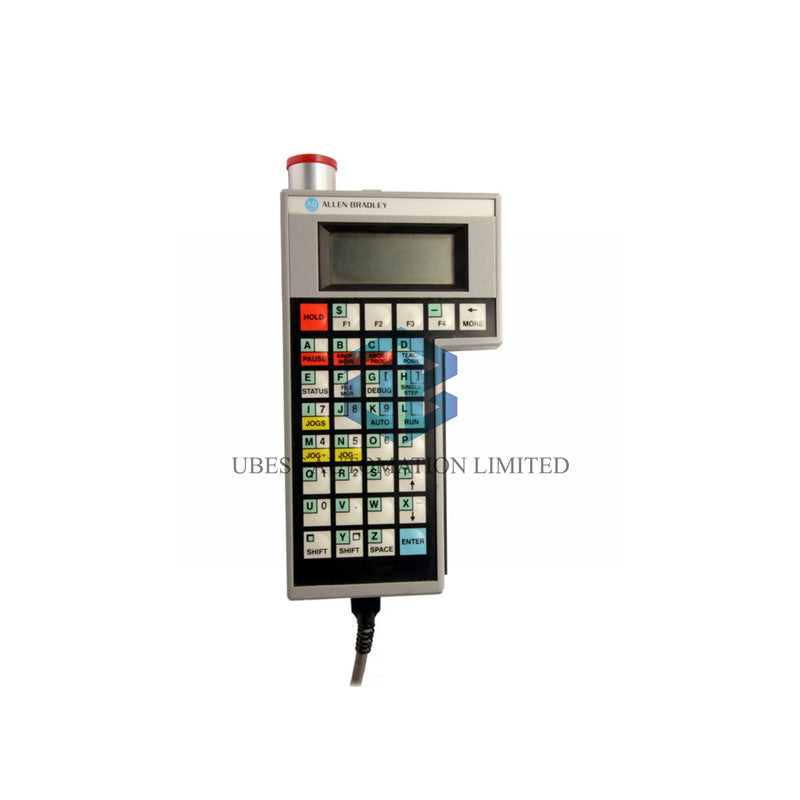

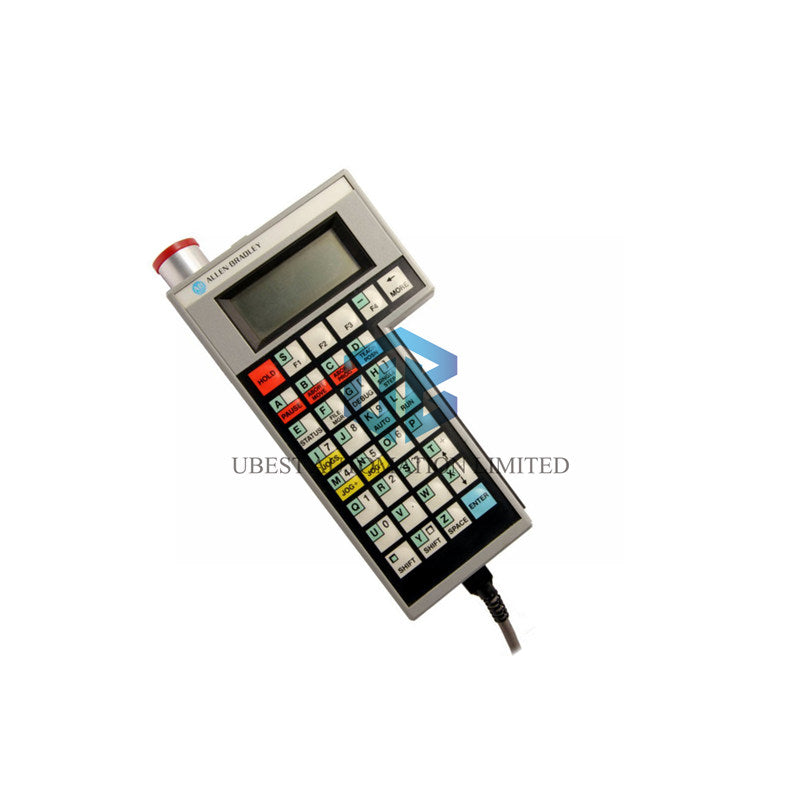

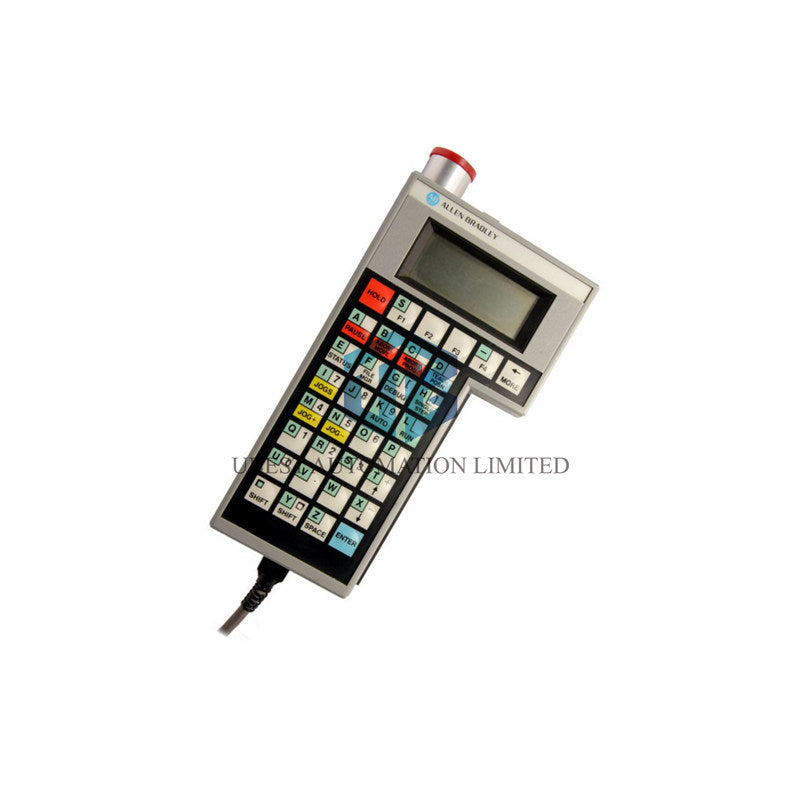

Allen-Bradley 1771-HD Handheld Programming Terminal

Portable programming solution for PLC-5 controller systems. The 1771-HD offers flexible remote access for system configuration and troubleshooting.

Key Features

• Handheld portable design
• 4-line x 16-character display
• 25-foot remote cable
• Hard and soft function keys
• Five menu displays
• RS-232 communication

Technical Specifications

Brand: Allen-Bradley
Model: 1771-HD
Device Type: Handheld Teach Pendant
Display: 4-line x 16-character LCD
Cable Length: 25 feet (8 meters)
Connector: 9-pin RS-232
Power Supply: 120V/240V AC
Update Period: 2 ms per axis
Backplane Current: 1.7 Amps
Input Frequency: 250 kHz maximum
Analog Output: ±10V DC command
Pulse Capture: 50-9999 microseconds
Operating Temp: 0°C to 60°C
Humidity Range: 5-95% non-condensing
Dimensions: 89 x 165 x 51 mm
Weight: Lightweight handheld

Easy Operation

Connect via 1771-CAD cable. Use hard and soft keys for navigation. Access five menu displays. Monitor system status.

Shipping & Warranty

12-month functionality warranty. Fast delivery via FedEx, UPS, DHL. Protective packaging included.

Download Resources

Get complete operation documentation:

• User manual
• Connection guide
• Programming instructions
• Troubleshooting guide
• Technical specifications

Download Complete Technical Manual

Technical Questions

What is the cable length for remote operation?

25-foot cable allows operation up to 8 meters from the controller.

How many menu displays are available?

Five selectable menus: Jugs, Status, Debug, File Manager, and Teach Position.

What type of display does it have?

4-line by 16-character LCD display for clear information viewing.

What controllers is it compatible with?

Designed for use with Allen-Bradley PLC-5 controller systems.

What power supply is required?

Operates with 120V or 240V AC power source using 1771-CAS cable.
