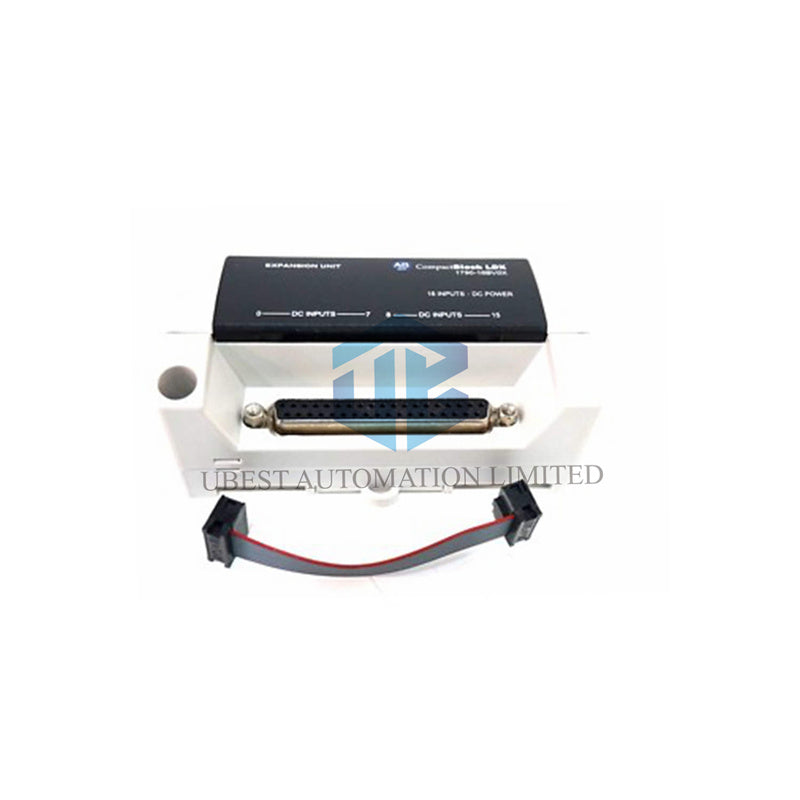

Allen-Bradley 1790-16BV0X 24V DC 16-Channel Universal Input Module
Product Description
The Allen-Bradley 1790-16BV0X is a versatile 16-point universal input module for DeviceNet networks. It accepts both sinking and sourcing sensor signals, providing maximum wiring flexibility. This module is perfect for reading digital signals from push buttons, limit switches, and proximity sensors in industrial environments. Part of the reliable 1790 ArmorBlock MaXum series, it offers clear status indication and robust performance.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1790-16BV0X (Full Catalog Number: 1790D-16BV0)
- Series: ArmorBlock MaXum Distributed I/O
- Module Type: 16-Point Universal DC Input
- Input Type: 16 points, universal (sinking or sourcing)
- Input Voltage: 24V DC Nominal
- Voltage Range: 9.6V DC (Min) to 28.8V DC (Max)
- Off-State Voltage: 5.0V DC max
- On-State Current: 8 mA max per channel @ 28.8V DC
- Input Impedance: 4.8 KΩ nominal
- Common Type: 8 points per common (non-polarity)
- Isolation: 1250V AC RMS (I/O to logic)
- Connection: 37-pin D-Shell Connector
- Indicators: 16 Green LED Status Lights
- Enclosure Rating: IP20
Data Mapping & I/O Addressing
The module uses 3 words (6 bytes) of DeviceNet data. Word 0 is a status byte. Word 1 (Bits 00-07) corresponds to physical inputs I0 through I7. Word 2 (Bits 16-23) corresponds to inputs I8 through I15. A bit value of 1 indicates the input is ON.
Installation & Wiring
Install on a 35 mm DIN rail. Connect field devices using the 37-pin D-sub connector. The universal design allows easy connection of either sinking (NPN) or sourcing (PNP) devices without module changes. Ensure input signals are within the specified 9.6-28.8V DC range.
System Compatibility
Designed for DeviceNet networks. Compatible with Allen-Bradley ControlLogix, CompactLogix, and other DeviceNet scanner systems. Functions as a base or expansion block within the 1790 I/O system.
Package Contents & Warranty
- One (1) Allen-Bradley 1790-16BV0X Input Module.
- Mounting hardware.
- Product documentation.
This genuine Allen-Bradley product comes with a 12-month warranty.
