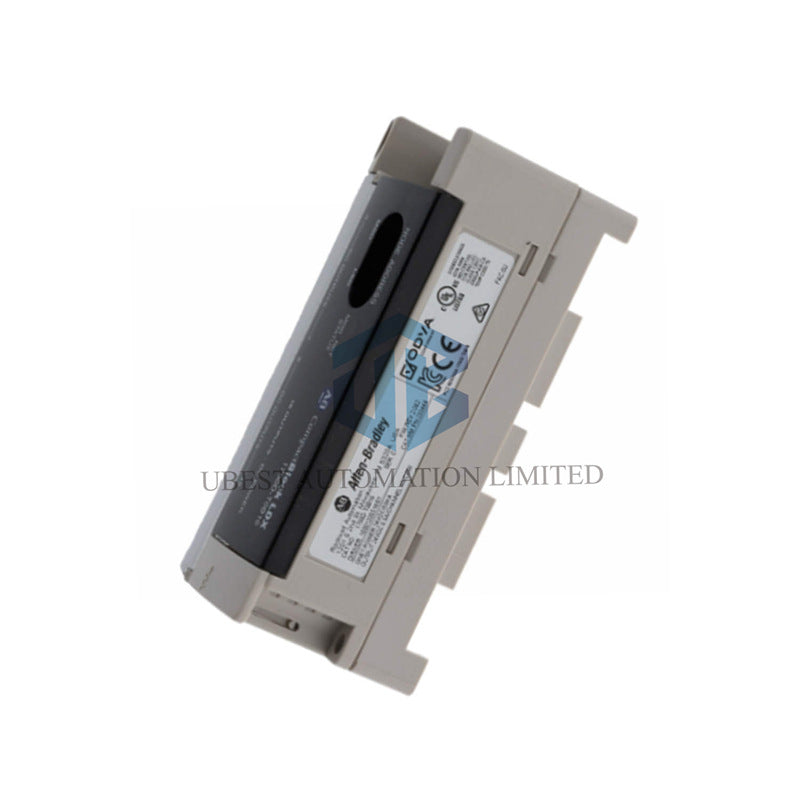

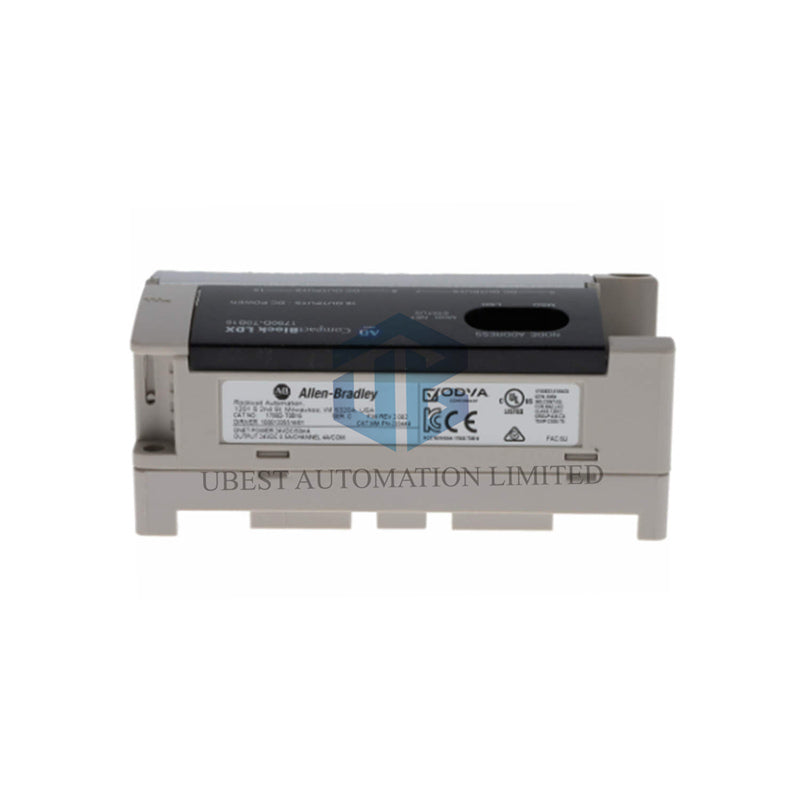

Allen-Bradley 1790D-T0A6 120V AC 6-Channel Output Module
Product Description
The Allen-Bradley 1790D-T0A6 is a compact 6-point AC output base module for DeviceNet networks. Designed to control standard 120V AC industrial loads, it provides reliable switching for devices like contactors, solenoid valves, and motor starters. With high dielectric strength and clear status indicators, this module ensures safe and visible operation in control panels.
Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1790D-T0A6
- Series: ArmorBlock MaXum Distributed I/O
- Module Type: 6-Point AC Output Base Module
- Output Type: 6 points, non-isolated, AC
- Load Voltage: 120V AC, 60 Hz Nominal
- Voltage Range: 85V AC to 132V AC RMS
- Load Current: 0.5 A RMS Maximum per point
- Minimum Load: 10 mA RMS
- On-State Drop: 1.3V RMS max at full load
- Switching Time: Operate: 1 ms max | Release: 1/2 cycle + 1 ms
- Isolation: 2500V RMS for 1 minute (I/O to logic)
- DeviceNet Power: 24V DC (11…28.8V DC)
- Connection: Terminal Block (M3.0 screw)
- Torque: 7 lb-in maximum
- Indicators: 6 Green LED Status Lights
- Recommended Fuse: 1 A, 250V, Normal Blow
- Common Type: 6 points / 6 COM (individually isolated)
Installation & Wiring Guide
Connect 120V AC field power within the 85-132V AC range. Use the terminal block with copper or copper-clad aluminum conductors. Tighten screws to a maximum of 7 lb-in. For protection, install a 1A, 250V normal-blow fuse on the AC supply line. Ensure the load does not exceed 0.5A per channel. The module also requires a 24V DC DeviceNet power supply.
System Compatibility
This is a DeviceNet base module. It connects directly to a DeviceNet network and is compatible with Allen-Bradley PLC systems like ControlLogix and CompactLogix. It is ideal for applications requiring a smaller number of dedicated AC outputs.
Package Contents & Warranty
- One (1) Allen-Bradley 1790D-T0A6 AC Output Module.
- Terminal block connectors.
- Mounting hardware and documentation.
Genuine Allen-Bradley product with a 12-month limited warranty.
