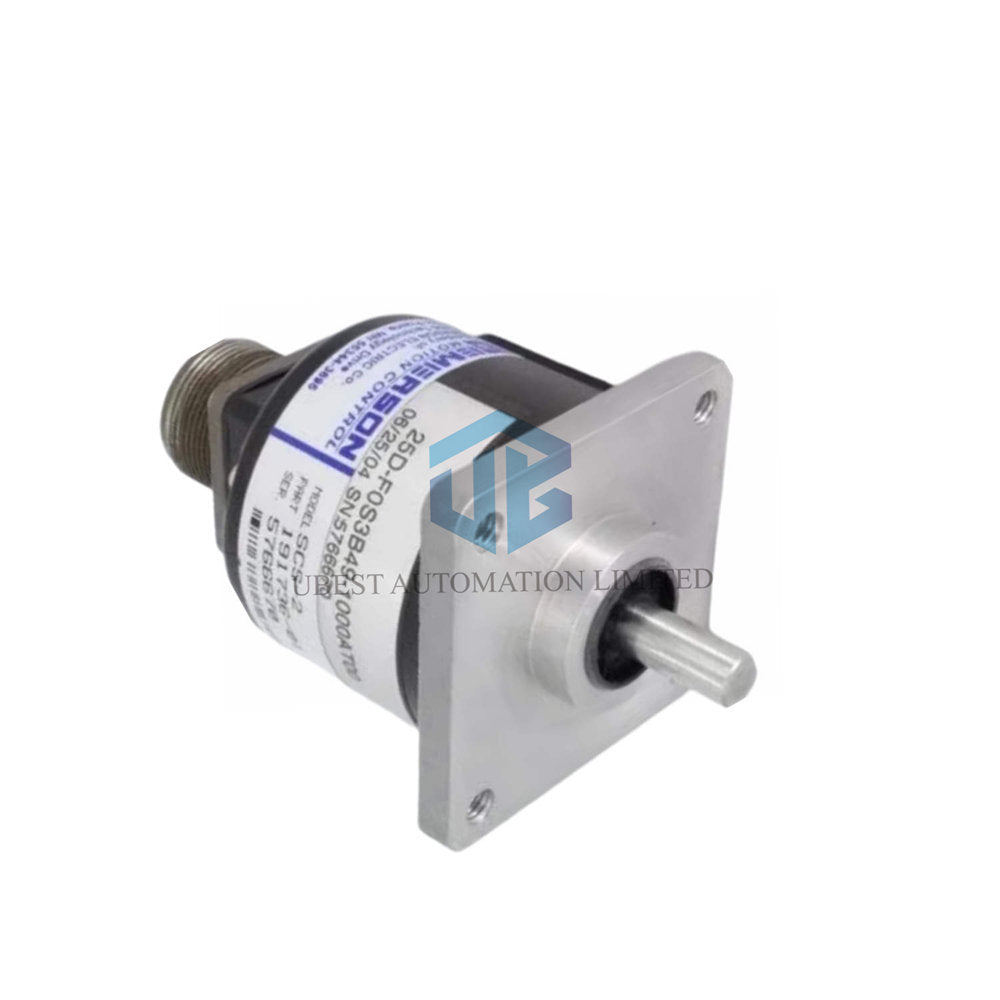

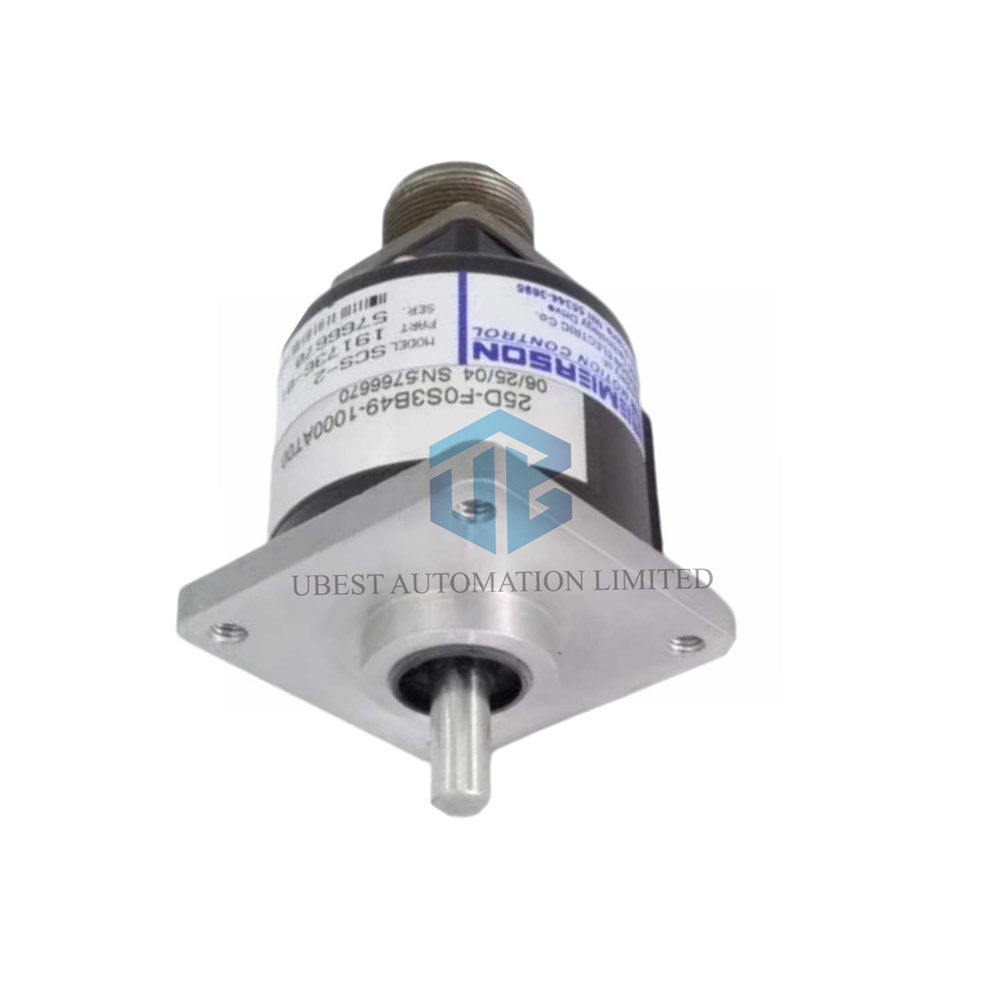

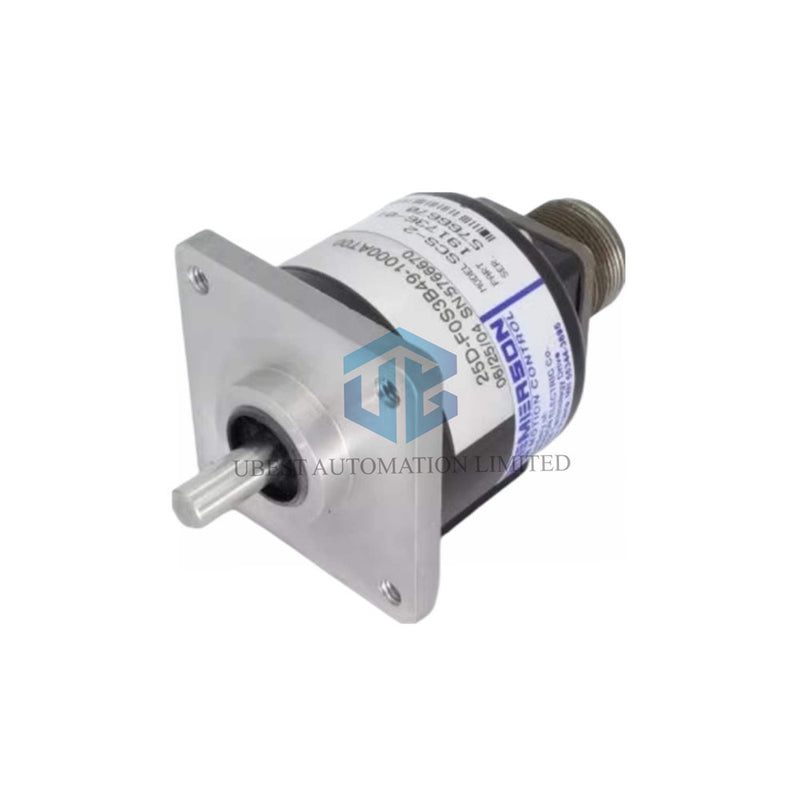

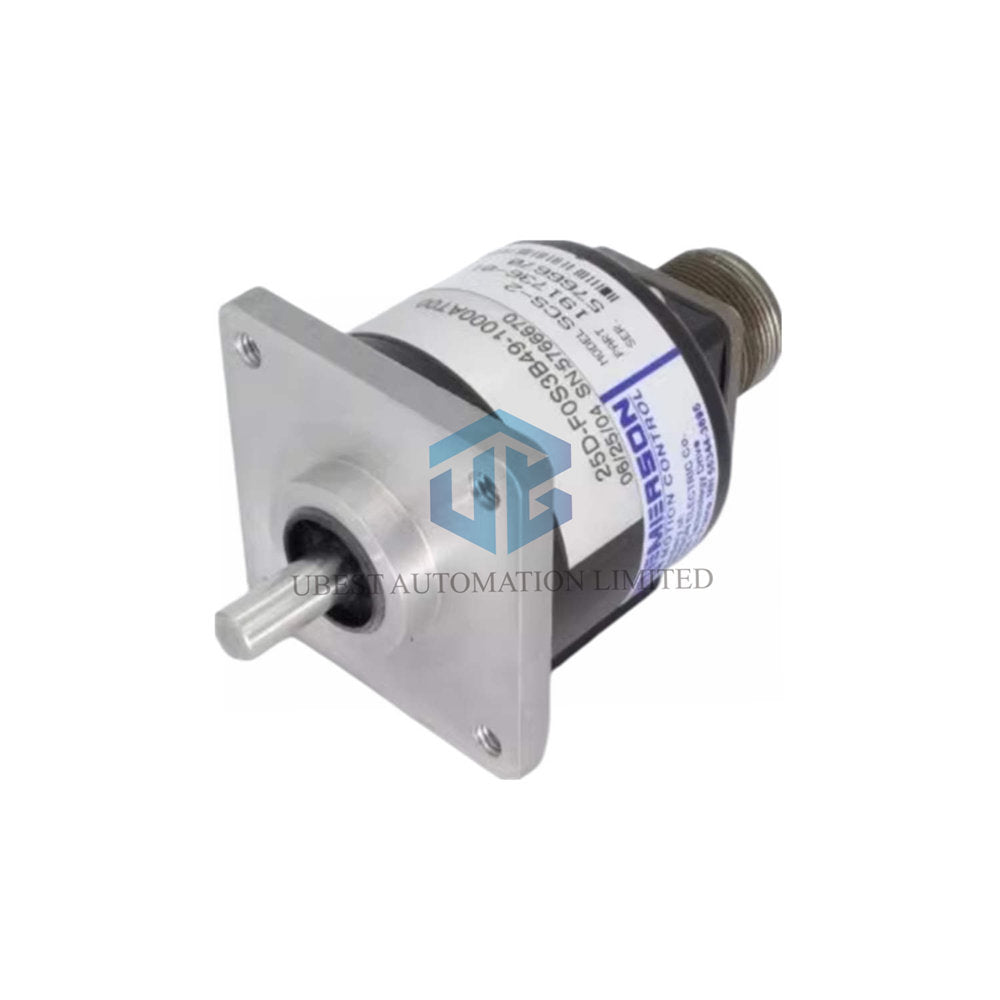

EMERSON 191736-01 Rotary Encoder – Precision Position Feedback for Valve Actuation

Technical Specifications

• Brand: EMERSON
• Model: 191736-01
• Category: Rotary Encoder / Position Indicator
• Voltage Rating (Mechanical): 24 V AC/DC
• Voltage Rating (Inductive PNP/NPN): 10 to 30 V DC
• Breaking Capacity (Mechanical): 0.5 A (max. 1 A)
• Wattage Rating (Inductive): 0.95 W max.
• Output Current (Inductive): 100 mA
• Ambient Temp (Mechanical Contacts): -20°C to +80°C
• Ambient Temp (Inductive Contacts): -20°C to +70°C
• Protection Rating: IP66 (EN 60529)
• Vibration Resistance: Max. 1 g (EN 60068-2-6)
• Housing Material: Glass fiber filled PA
• Cover Material: PA (transparent) or aluminum
• Valve Adaptor: Brass or stainless steel
• Stem & Cams: Stainless steel and PEEK
• Seals: NBR
• Cable Entry: M16x1.5 gland (4-8 mm cable dia.)
• Terminal Block: 4 positions, 0.14 to 2.5 mm² wire

Frequently Asked Questions (FAQ)

• Does the 191736-01 work with inductive sensors? Yes, it supports PNP/NPN inductive contacts (10-30V DC).
• Can I use this encoder outdoors? Yes, the IP66 rating protects against dust and strong jets of water.
• What wire size fits the terminal block? It accepts stranded wire from 0.14 mm² up to 2.5 mm².
• Is the encoder SIL2 certified? Yes, it meets IEC 61508:2010 SIL2 requirements.
• Where can I get support for the EMERSON 191736-01? Contact Ubest Automation directly for technical help.
