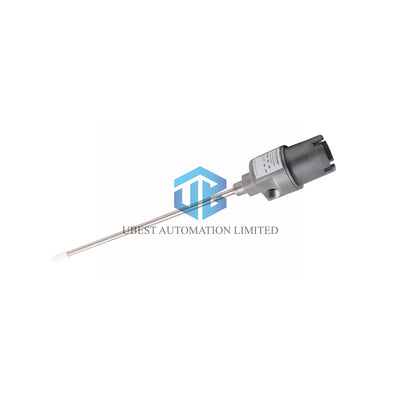

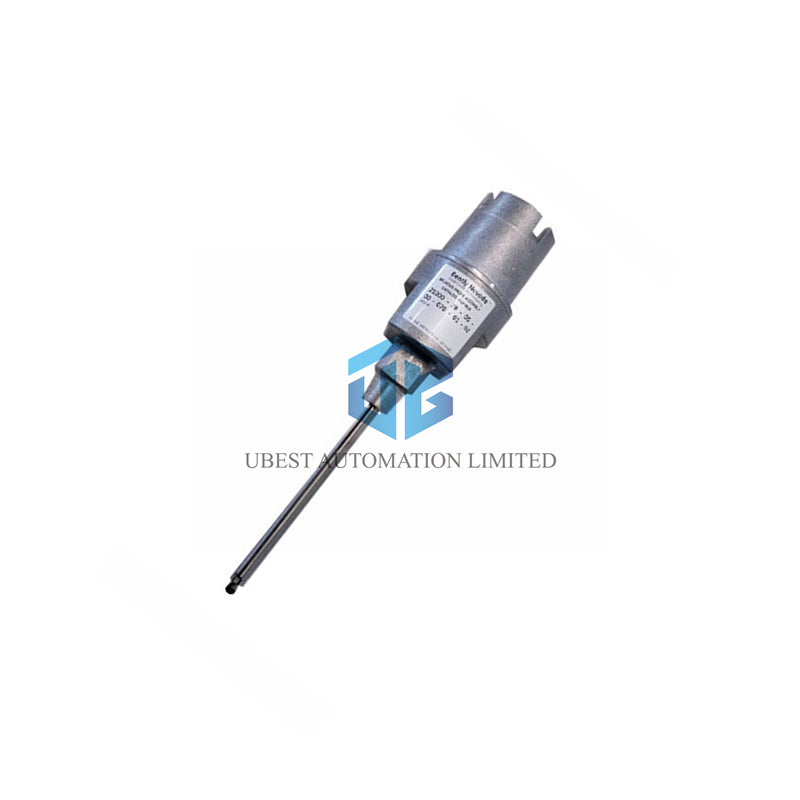

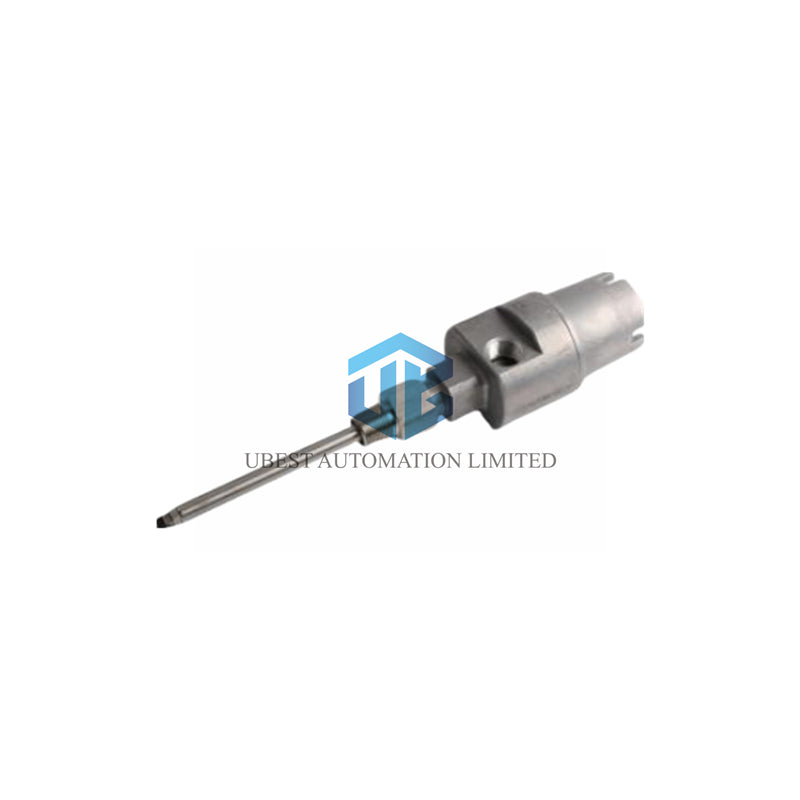

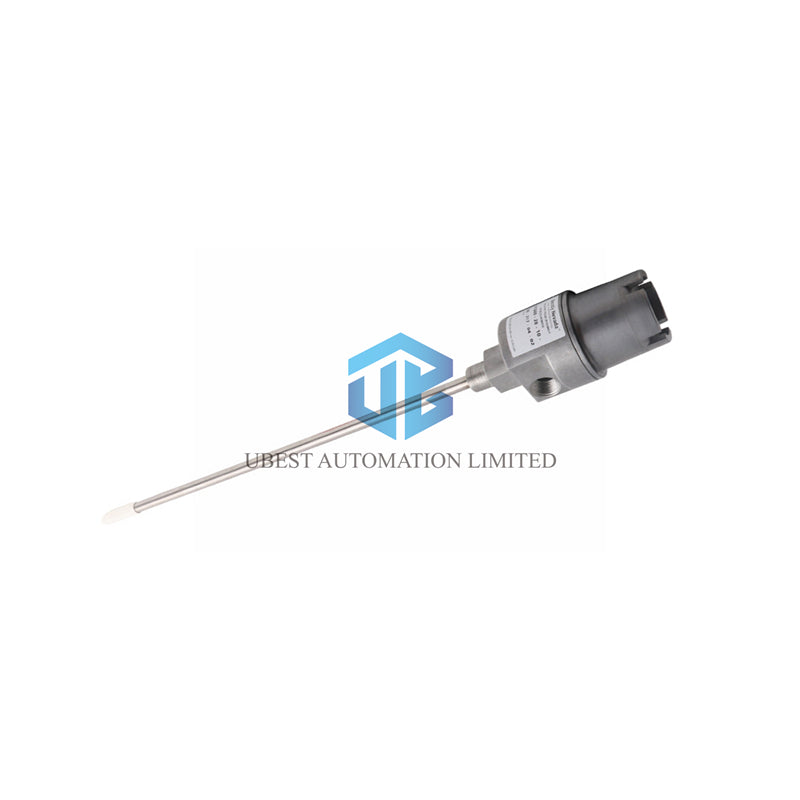

21000-34-10-15-039-03-02 21000 Bently Nevada Proximity Probe Housing

In stock
Manufacturer:
Bently Nevada
Product No.:
21000-34-10-15-039-03-02
Condition:
In Stock
Product Type:
Proximity Probe Housing
Product Origin:
USA
Weight:
1100g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

21000-34-10-15-039-03-02 – Technical specifications & suffix configurator

  • Brand: Bently Nevada
  • Model: 21000 Proximity Probe Housing Assemblies
  • Type: Aluminum body with 304 stainless steel sleeve, reverse‑mount proximity probe
  • Temperature range (probe): –51°C to +177°C (–60°F to +351°F) for 3300 XL 8mm / 11mm; 3300 NSv probe operating –34°C to +177°C
  • Enclosure rating: CSA Type 4, explosion‑proof for hazardous areas
  • Compliance: API 670 standard for externally mounted housings
  • Weight: 1.1 kg (2.4 lb) typical without fittings

Complete suffix information (ordering tree)

  • Model base: 21000 – Proximity Probe Housing Assemblies
    • 34 = Probe option: 3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
    • 10 = Probe cable length: 1.0 m (39 in)
    • 15 = Standoff adapter: 1.5 in
    • 039 = Probe penetration: 3.9 in
    • 03 = Fitting option — includes:
      • One 3/4-14 NPT plug
      • One 3/4-14 to 1/2-14 NPT reducer
      • Cable seal grip with grommets for 1/8–3/16 in, 1/4–5/16 in, 5/16–3/8 in cables
    • -02 = Mounting thread: 3/4-14 NPT (mandatory when standoff adapter ≠ -00)
  • Probe cable length: 1.0 m
  • Max (C)+(D) with visible probe S/N: 17.0 in (43.18 cm)
  • Max (C)+(D) dimension: 32.9 in (83.5 cm)

Frequently asked questions

  • Can I use an 11 mm probe with this housing? Yes – the 21000 body accepts 3300 XL 11 mm probes; order with suffix code for 11 mm probe option (not shown here, but compatible).
  • What is the maximum cable length between probe and extension? Standard probe cable is 1.0 m; you can extend up to 10 meters using Bently Nevada extension cables without signal loss.
  • Does the housing include the probe? Absolutely – this assembly comes with the reverse‑mount 3300 XL 8 mm probe installed, as per suffix 34.
  • Is the unit suitable for ATEX environments? The assembly carries CSA approval; for ATEX please check specific probe suffix – contact us for dual certification.
  • What tools do I need for installation? Only a strap wrench for the dome cover and standard wrenches for NPT fittings.
  • Can I rotate the conduit entry after installation? Yes – the fitting option 03 includes a swivel adapter; loosen the gland nut to orient.
