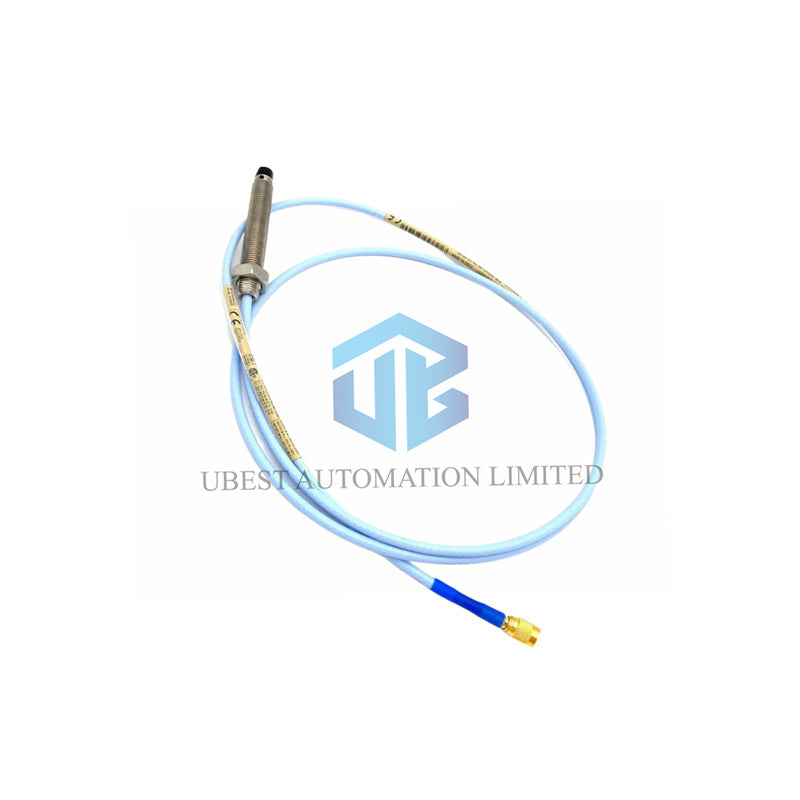

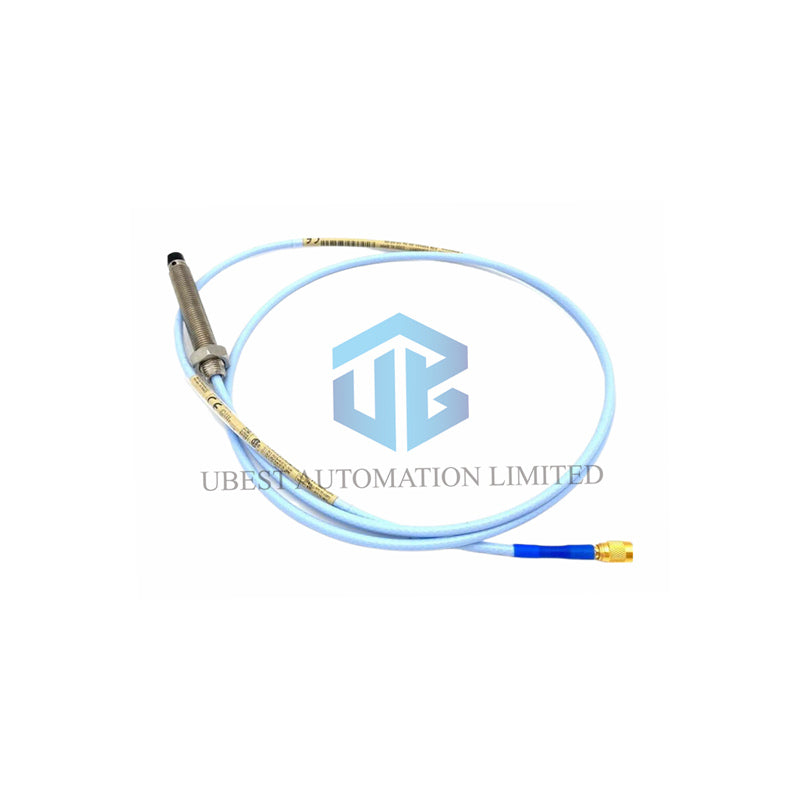

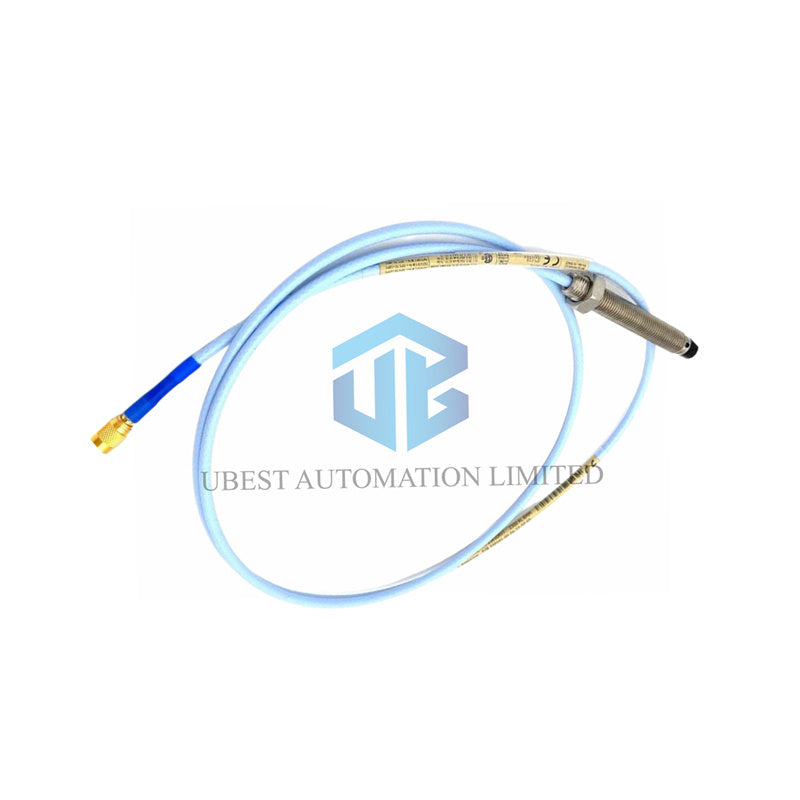

3300 XL 8 mm Probe – rugged and reliable

Technical specifications – Bently Nevada 330101-11

• Brand: Bently Nevada
• Model: 330101-00-11-20-02-00
• Type: 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
• Suffix information (tree structure):
  • 330101 – 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
    • -00 – Unthreaded length: 0.0 inch
    • -11 – Overall case length: 1.1 inches
    • -20 – Total length: 2.0 meters (6.6 feet)
    • -02 – Connector: Miniature coaxial ClickLoc, standard cable
    • -00 – No optional requirement
• Linear range: 2 mm (80 mils) from 0.25 to 2.3 mm (–1 to –17 Vdc). Recommended gap setting: –9 Vdc (1.27 mm).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for standard 5/1 meter systems including interchangeability error.
• Deviation from straight line (DSL): Less than ±0.025 mm (±1 mil) for 5/1 meter systems at 0°C to +45°C.
• Temperature range (standard probe): -52°C to +177°C (-62°F to +350°F). Extended tip rating: up to +218°C.
• Probe DC resistance (RPROBE): 7.88 ±0.50 Ω for 2.0 meter probe length.
• Extension cable capacitance: 69.9 pF/m typical.
• Environmental resistance: Less than 3% ASF change after 56 days at 93% humidity per IEC 68-2-3. Viton O-ring pressure seal.

Frequently asked questions

• Q: Can I use this probe with a 9 m extension cable? Yes, the system works with 9 m cables, but ISF accuracy becomes ±6.5% and DSL < ±0.038 mm.
• Q: Does the probe withstand high pressure? The Viton O-ring seals differential pressure. Contact our custom department if you need tested pressure seals.
• Q: What is the maximum field wiring distance? You can run up to 305 m (1000 feet) between the Proximitor and monitor. Check frequency response graphs for signal roll-off at longer lengths.
• Q: Is the probe tip replaceable? No, the tip is permanently molded using TipLoc technology. The entire probe is a single assembly.
