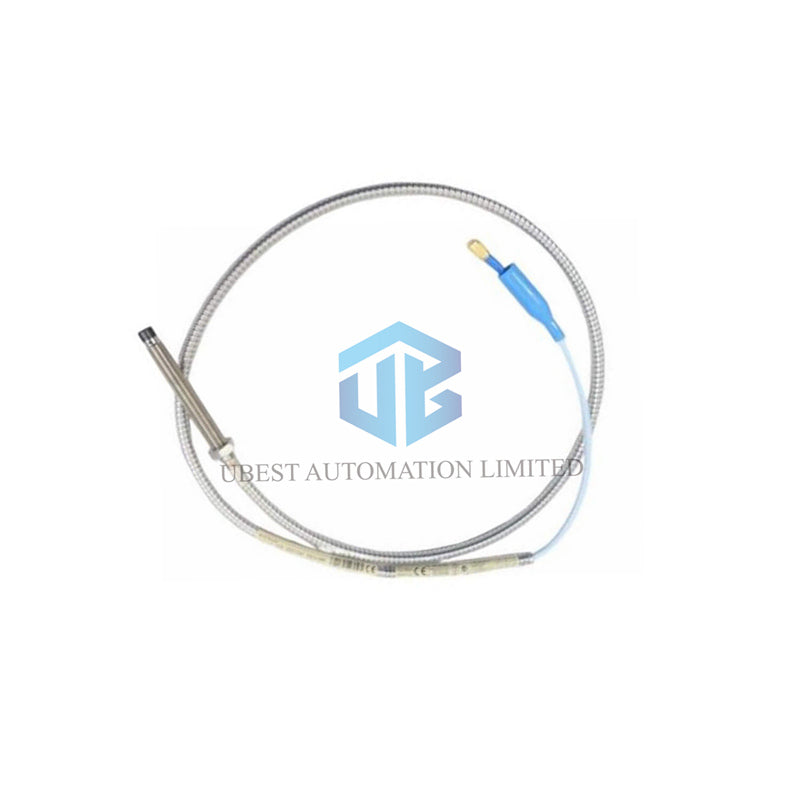

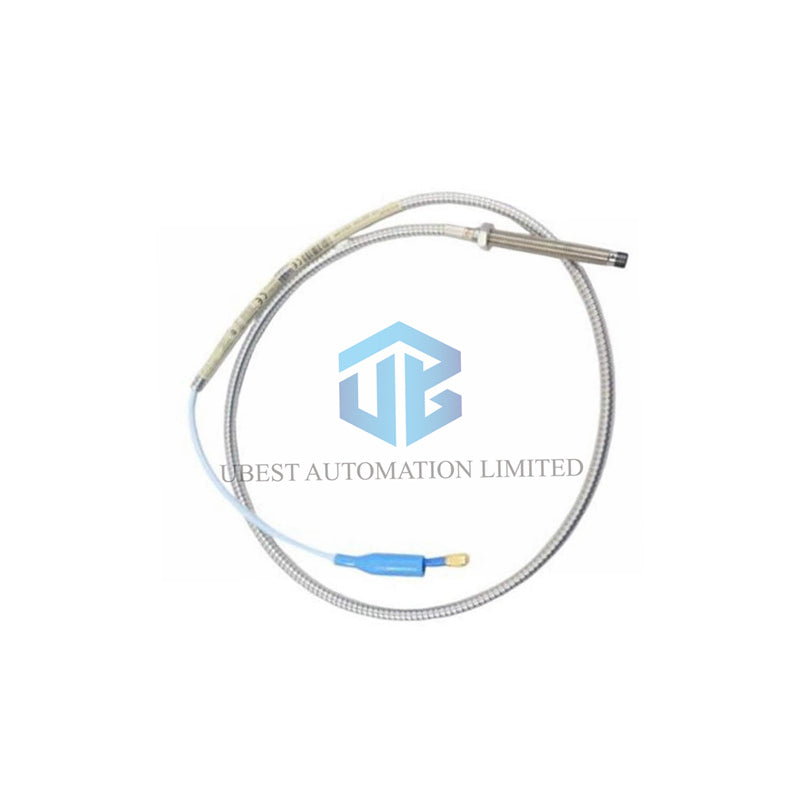

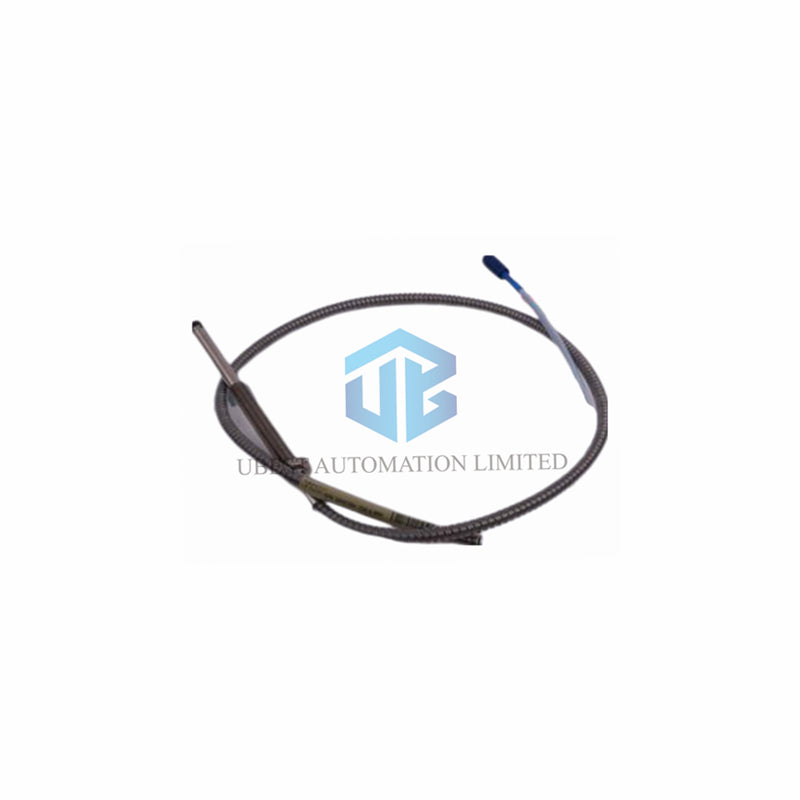

Precision Vibration Monitoring: Bently Nevada 3300 XL 8 mm Probe

Key Technical Specifications

• Manufacturer & Series: Bently Nevada 3300 XL 8 mm Proximity Probes, Metric.
• Full Model Number: 330104-00-13-15-01-00.
• Complete Suffix Information:
  • 330104: 3300 XL 8 mm Probe, M10 x 1 thread, with armor.
  • Unthreaded Length (00): 00 mm.
  • Overall Case Length (13): 130 mm.
  • Total Length (15): 1.5 meters (4.9 feet).
  • Connector & Cable (01): Miniature coaxial ClickLoc connector with protector, standard cable.
  • Agency Approval (00): Not required.
• Linear Range: 2 mm (80 mils), from 0.25 mm to 2.3 mm from target.
• DC Resistance (RPROBE): 7.73 ± 0.50 Ω for the 1.5m probe length.
• Temperature Range: Standard probe operates from -52°C to +177°C.

Mechanical & Material Construction

• Probe Tip Material: Polyphenylene sulfide (PPS) offers high durability.
• Probe Case Material: AISI 303 or 304 stainless steel ensures corrosion resistance.
• Thread Size: M10 x 1 with a maximum engagement length of 15 mm.
• Pressure Seal: Viton® O-ring seals differential pressure between tip and case.
• Environmental Tolerance: Less than 3% ASF change after 56 days in 93% humidity (IEC 68-2-3).

Frequently Asked Questions (FAQ)

• Q: What is the main application for this probe?
  A: You use it for radial vibration and position measurement on turbines, compressors, and pumps.
• Q: Can this probe withstand high temperatures?
  A: Yes, the standard version operates up to 177°C. Extended range versions go to 218°C for the tip.
• Q: Does the kit include the Proximitor Sensor?
  A: No, this listing includes only the probe. You order the 3300 XL Proximity Probes and sensor separately.
• Q: How long is the standard cable on this model?
  A: The total length option "15" means it includes a 1.5 meter (4.9 feet) integral cable.
