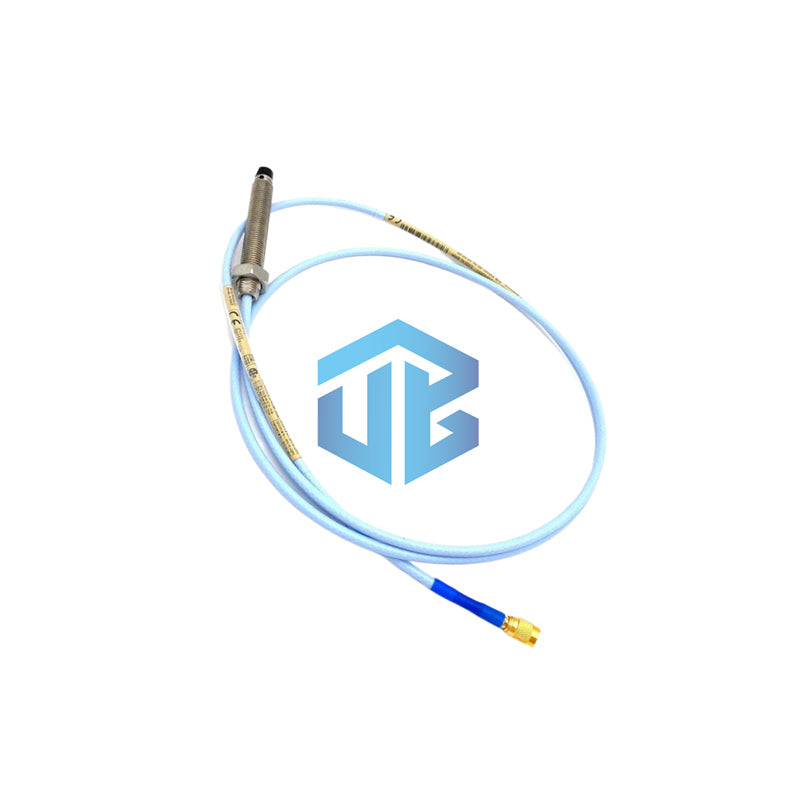

Bently Nevada 3300 XL 8mm Probe: Fluid-Resistant Hazardous Area Solution

Meet the ultimate protection against fluid ingress—the 3300 XL 8 mm Probe from Bently Nevada combines certified hazardous area operation with advanced FluidLoc technology. This precision transducer delivers reliable performance in wet and oily environments where other sensors fail. Access complete technical specifications by downloading the full datasheet here.

Model Configuration: 330101-00-10-10-12-05

• Manufacturer: Bently Nevada

• Product Line: 3300 XL 8 mm Probe

• Unthreaded Length (00): 0.0 inch

• Case Length (10): 1.0 inch compact design

• Cable Length (10): 1.0 meter (3.3 feet)

• Connection System (12): Miniature Coaxial ClickLoc with FluidLoc Cable

• Safety Certifications (05): CSA, ATEX, and IECEx Approved

Precision Measurement Specifications

• Linear Measurement Range: 2.0 mm (80 mils) from 0.25 to 2.3 mm from target

• Optimal Gap Setting: -9 Vdc [approximately 1.27 mm (50 mils)]

• Sensitivity Rating: 7.87 V/mm (200 mV/mil) ±5% including interchangeability

• Linearity Performance: Less than ±0.025 mm (±1 mil) deviation from ideal

• Electrical Characteristics: 7.59 Ω ± 0.50 resistance for 1.0m systems

• Cable Specifications: 69.9 pF/m (21.3 pF/ft) typical capacitance value

Environmental Performance

• Operating Temperature: -52°C to +177°C (-62°F to +350°F) standard range

• Extended Temperature Capability: Probe tip withstands -52°C to +218°C

• Sealing System: Viton® O-ring provides reliable differential pressure sealing

• Humidity Resistance: Less than 3% ASF change at 93% humidity (IEC 68-2-3)

• Fluid Protection: FluidLoc cable prevents internal fluid transmission

• Safety Compliance: Certified for CSA, ATEX, and IECEx hazardous locations

Installation & Integration

• Use 3-conductor shielded triad cable (0.2 to 1.5 mm² / 16-24 AWG)

• Maximum 305 meters (1,000 feet) field wiring distance to monitor

• Avoid installation below -34°C (-30°F) to maintain pressure seal integrity

• Stainless steel construction (AISI 303/304) ensures corrosion resistance

Package Contents & Shipping

• One (1) Bently Nevada 3300 XL 8 mm Probe with FluidLoc cable

• Worldwide shipping via FedEx, UPS, and DHL express services

• Complete documentation included with all safety certifications
