Bently Nevada 3300 XL 8 mm Probe – High-Reliability Proximity Measurement

Key Technical Specifications – Bently Nevada 3300 XL 8 mm System

• Brand: Bently Nevada

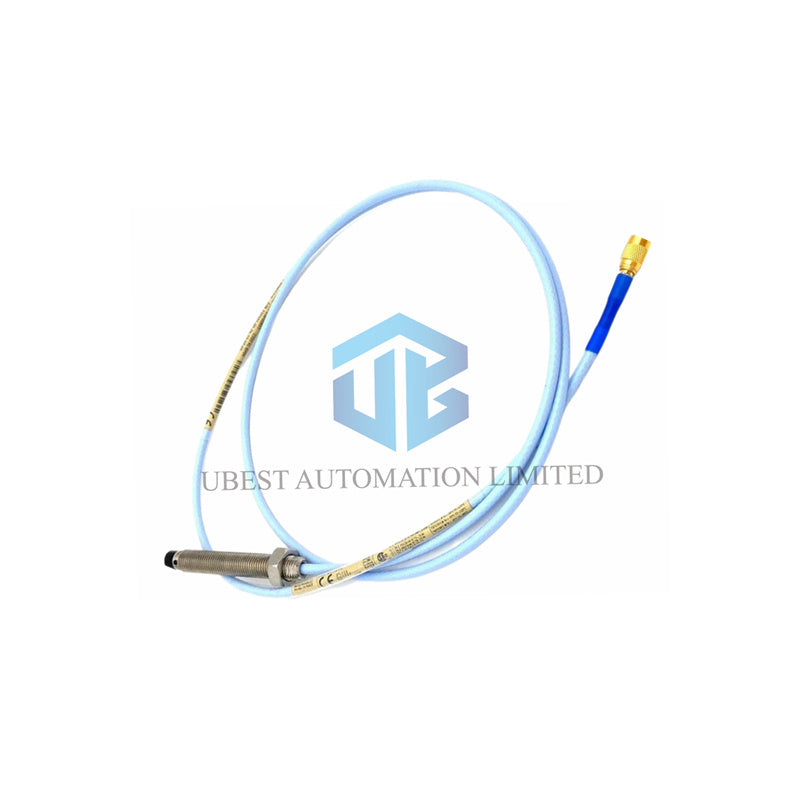

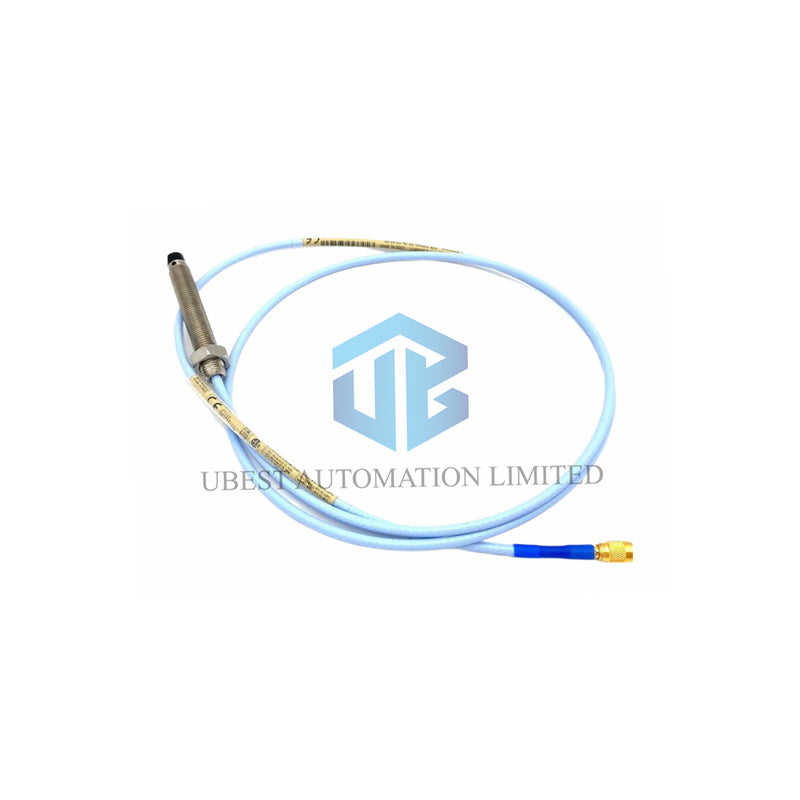

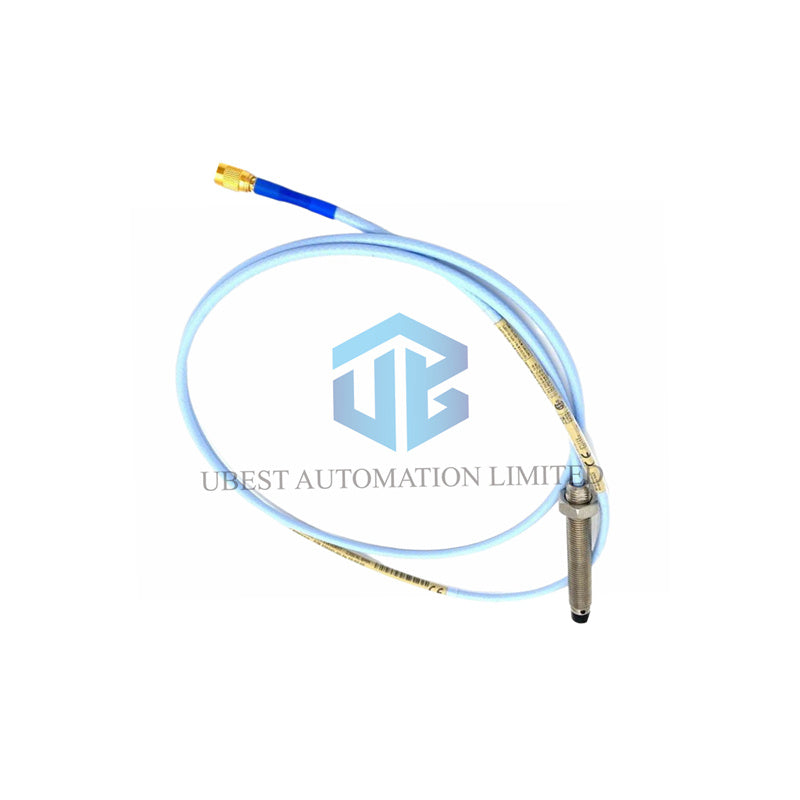

• Model Number: 330101-00-17-10-02-00 – 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor.
• Linear Range: 2 mm (80 mils) starting from 0.25 mm (10 mils) to 2.3 mm (90 mils). Output spans approx –1 to –17 Vdc.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% for 1 or 5 m system, includes interchangeability error (0 to +45°C).
• Deviation from Best Fit Straight Line (DSL): less than ±0.025 mm (±1 mil) for standard 1 or 5 meter systems.
• Probe DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0 meter length.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Recommended Gap (Radial Vibration): -9 Vdc corresponds to approx 1.27 mm (50 mils).
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) shielded triad, max length 305 m (1000 ft) to Proximitor Sensor.

Complete Suffix Information – Model 330101-00-17-10-02-00

• Base Model: 330101 — 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
• Unthreaded Length Option (00): 0.0 in
• Overall Case Length Option (17): 1.7 in
• Total Length Option (10): 1.0 meter (3.3 feet)
• Connector & Cable-Type Option (02): Miniature coaxial ClickLoc™ connector, standard cable
• Agency Approval Option (00): Not required

Environmental & Mechanical Robustness

• Probe Tip Material: Polyphenylene sulfide (PPS) with TipLoc molding for stronger bond.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Standard Probe Temperature Range: Operating and storage from -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range Option: Probe tip up to +218°C (+425°F); cable up to +260°C (+500°F).
• Pressure Sealing: Viton® O-ring seals differential pressure between probe tip and case.
• Relative Humidity Performance: less than 3% change in Average Scale Factor after 56 days at 93% humidity (IEC 68-2-3).
• Thread Engagement: 3/8-24 UNF, max thread engagement length 0.563 in.
• Probe Case Torque: Recommended 11.2 N•m (100 in•lbf) for forward mounted probes.
• Cable Pull Strength: CableLoc design provides 330 N (75 lbf) secure attachment.
• FluidLoc Option Available: Prevents oil or liquid leakage through cable interior.

Frequently Asked Questions (FAQ)

• Q: Can I use this 3300 XL 8 mm probe with a 9-meter extension system?
  A: Yes, the probe works with standard extension cables; note the scale factor tolerance becomes ±6.5% for 9-meter total systems.
• Q: Does the probe resist oil or chemical ingress?
  A: The standard Viton O-ring provides pressure sealing. For additional liquid protection, order the FluidLoc cable option.
• Q: What is the maximum probe temperature for continuous operation?
  A: Standard probe withstands +177°C (+350°F); extended temperature probe tip supports up to +218°C (+425°F).
• Q: Is the 330101-00-17-10-02-00 compatible with existing 3300 XL proximity systems?
  A: Absolutely. This model matches 3300 XL 8 mm Proximity Proximitor sensors and 3300 monitoring systems seamlessly.
• Q: How do I verify the probe DC resistance?
  A: Use a multimeter across center and outer conductor; nominal RPROBE for 1.0 m length equals 7.59 ±0.50 Ω.

The 3300 XL 8 mm Proximity Probes offer unmatched durability for turbines, compressors, and generators. Choose Bently Nevada 3300 XL 8 mm Probe to reduce downtime with TipLoc and CableLoc advanced retention. For the full catalog, visit Ubest PLC’s 3300 XL 8 mm series.
