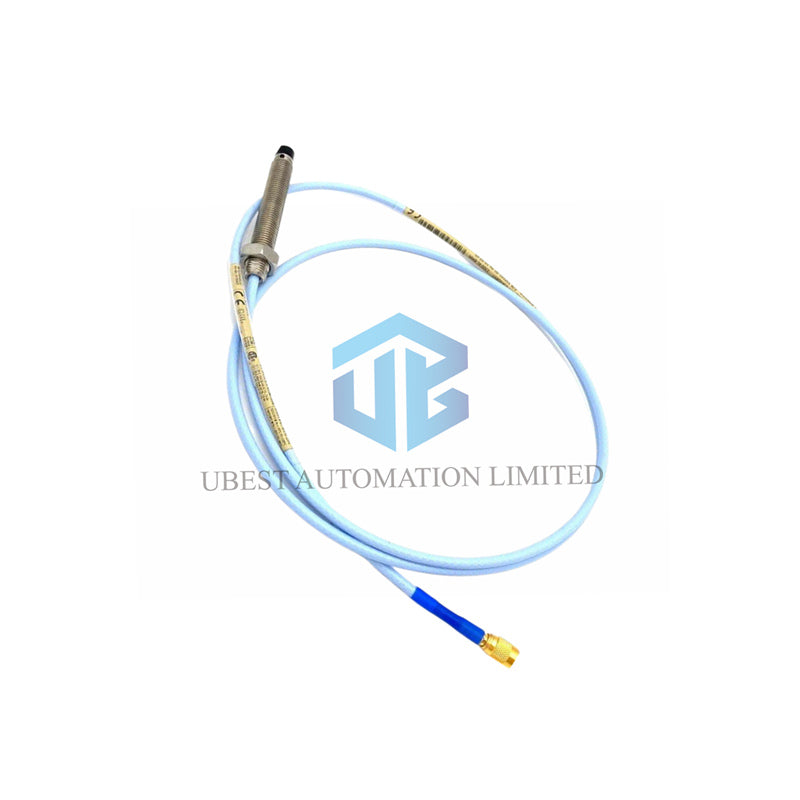

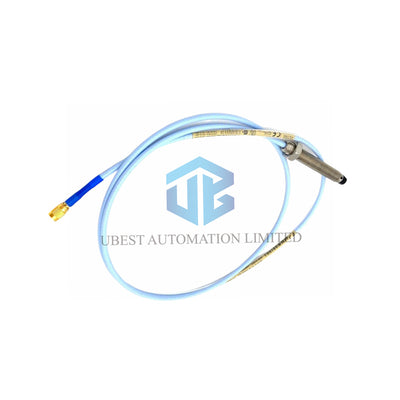

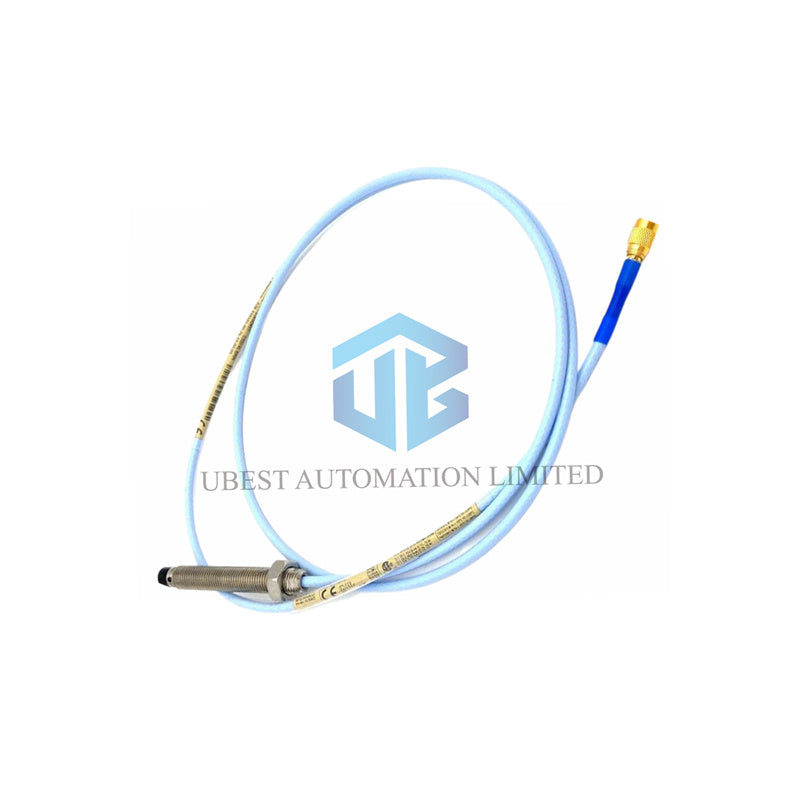

Bently Nevada 3300 XL 8mm Probe for Certified Applications 330101-00-65-10-02-05

Core Features & Certified Configuration

• Hazardous Area Approved: This probe holds CSA, ATEX, and IECEx approvals for use in classified locations.
• Extended Reach Design: The long 6.5-inch case accommodates deep mounting scenarios in machinery housings.
• Proven Durability: Patented TipLoc and CableLoc technologies ensure a robust physical and mechanical connection.
• Complete Suffix Breakdown:
  330101 - 3300 XL 8 mm Probe, 3/8-24 UNF Thread, No Armor
     00 - Unthreaded Length: 0.0 inch
     65 - Overall Case Length: 6.5 inch
     10 - Total Cable Length: 1.0 meter (3.3 feet)
     02 - Connector: Miniature Coaxial ClickLoc, Standard Cable
     05 - Approvals: CSA, ATEX, IECEx

Detailed Technical Specifications

• Brand & Model: Bently Nevada 330101-00-65-10-02-05
• Electrical: Nominal DC Resistance (RPROBE): 7.59 Ω ± 0.50 Ω for the 1.0m length.
• Cable: Typical Extension Cable Capacitance measures 69.9 pF per meter.
• Measurement Range: Linear range is 2 mm (80 mils), from 0.25 mm to 2.3 mm from target.
• Gap Setting: For radial vibration, set the gap to achieve -9 Vdc output (about 1.27 mm).
• Scale Factor (ISF): System sensitivity is 7.87 V/mm (200 mV/mil) with defined tolerances.
• Linearity (DSL): Deviation stays below ±0.025 mm (±1 mil) for standard 1/5m systems.
• Field Wiring: Maximum run is 305 meters using recommended 3-conductor shielded cable.

Environmental & Compliance Ratings

• Safety Certifications: Approved for CSA, ATEX, and IECEx standards.
• Operating Temperature: Standard range from -52°C to +177°C (-62°F to +350°F).
• Construction: Probe tip uses tough PPS plastic; case is AISI 303/304 Stainless Steel.
• Pressure Seal: Viton® O-ring provides a seal. Note: Not factory pressure tested.
• Humidity Resistance: Less than 3% signal change after 56 days at 93% relative humidity.
• Physical Specs: Approximate cable weight is 323 grams per meter (11.4 oz/ft).

Frequently Asked Questions (FAQ)

• Q: What do the CSA, ATEX, IECEx approvals mean?
  A: These certifications allow the probe's safe use in hazardous locations where flammable gases or dusts may be present.
• Q: When should I use this 6.5-inch case length probe?
  A: Choose this model when you need to mount the probe through a thick machine casing or housing.
• Q: Is the cable also certified for hazardous areas?
  A: The certification covers the probe assembly. You must use appropriately certified extension cables and barriers for a full system.
• Q: Can I get this long probe without the hazardous area approvals?
  A: Yes, Bently Nevada offers the 3300 XL series in many configurations. Contact us for other suffix options.
