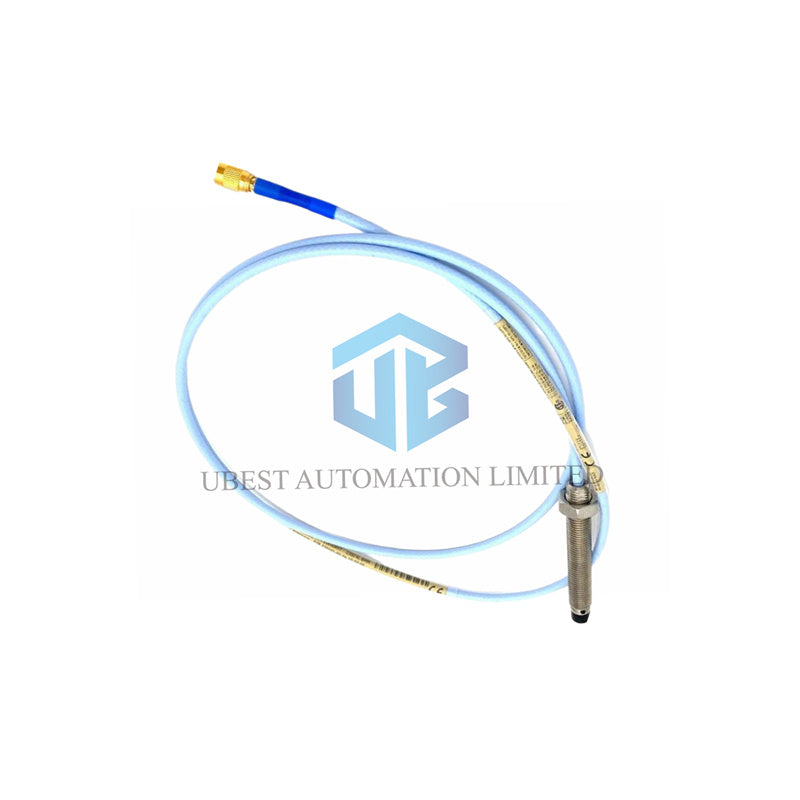

Introducing the Bently Nevada 3300 XL 8mm Proximity Probe 330101-02-12-10-02-00

Key Features & Product Configuration

• Superior Durability: The 8mm body and patented TipLoc molding create a highly robust probe resistant to physical damage.
• Secure Connections: Patented CableLoc design ensures the cable withstands strong pull forces up to 330 N (75 lbf).
• Optional FluidLoc: Available option prevents fluid ingress and leakage along the cable interior for cleaner operation.
• Complete Suffix Breakdown:
  330101 - 3300 XL 8 mm Probe, 3/8-24 UNF Thread, No Armor
     02 - Unthreaded Length: 0.2 inch
     12 - Overall Case Length: 1.2 inch
     10 - Total Cable Length: 1.0 meter (3.3 feet)
     02 - Connector: Miniature Coaxial ClickLoc, Standard Cable
     00 - Not Required

Detailed Technical Specifications

• Brand & Model: Bently Nevada 330101-02-12-10-02-00
• Electrical: DC Resistance (RPROBE): 7.59 Ω ± 0.50 Ω for 1.0m length.
• Cable: Extension Cable Capacitance: 69.9 pF/m typical.
• Linear Range: 2 mm (80 mils), starting from 0.25 mm from the target.
• Recommended Gap: Set radial vibration gaps to -9 Vdc (~1.27 mm or 50 mils).
• Sensitivity (ISF): 7.87 V/mm (200 mV/mil) with defined interchangeability tolerance.
• Linearity (DSL): Deviation less than ±0.025 mm (±1 mil) for standard 1/5m systems.
• Field Wiring: Use 3-conductor shielded cable (16-24 AWG). Max length 305m to monitor.

Environmental & Physical Ratings

• Temperature Range (Standard): Operates from -52°C to +177°C (-62°F to +350°F).
• Probe Tip Material: Made from rugged Polyphenylene Sulfide (PPS) plastic.
• Probe Case: Constructed from AISI 303/304 Stainless Steel for corrosion resistance.
• Pressure Seal: Features a Viton® O-ring seal. Note: probes are not factory pressure tested.
• Humidity: Less than 3% ASF change after 56 days at 93% relative humidity.
• Weight: Approximate cable weight is 323 g/m (11.4 oz/ft).

Frequently Asked Questions (FAQ)

• Q: What makes this 8mm probe more rugged?
  A: The thicker PPS plastic tip encapsulation and larger stainless steel case provide superior physical strength.
• Q: Can this probe handle wet environments?
  A: The standard probe has a pressure seal. For fluid ingress prevention along the cable, order the FluidLoc option.
• Q: What is the maximum cable length for the system?
  A: You can use field wiring up to 305 meters between the 3300 XL proximitor and the monitor.
• Q: What temperature can the probe cable withstand?
  A: The standard probe cable handles up to 177°C. Extended Temperature Range (ETR) probes support higher limits.
