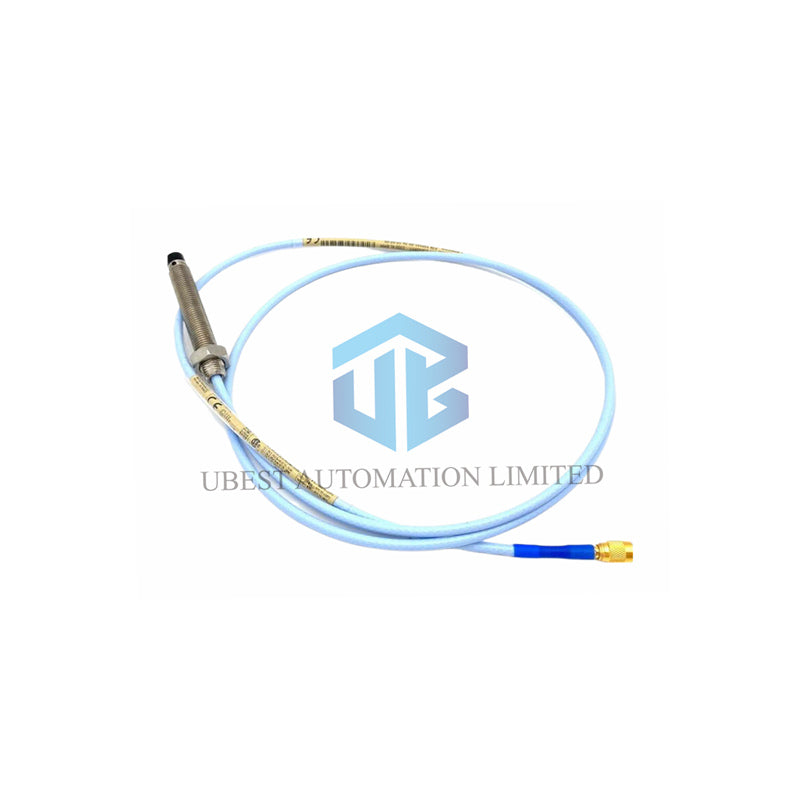

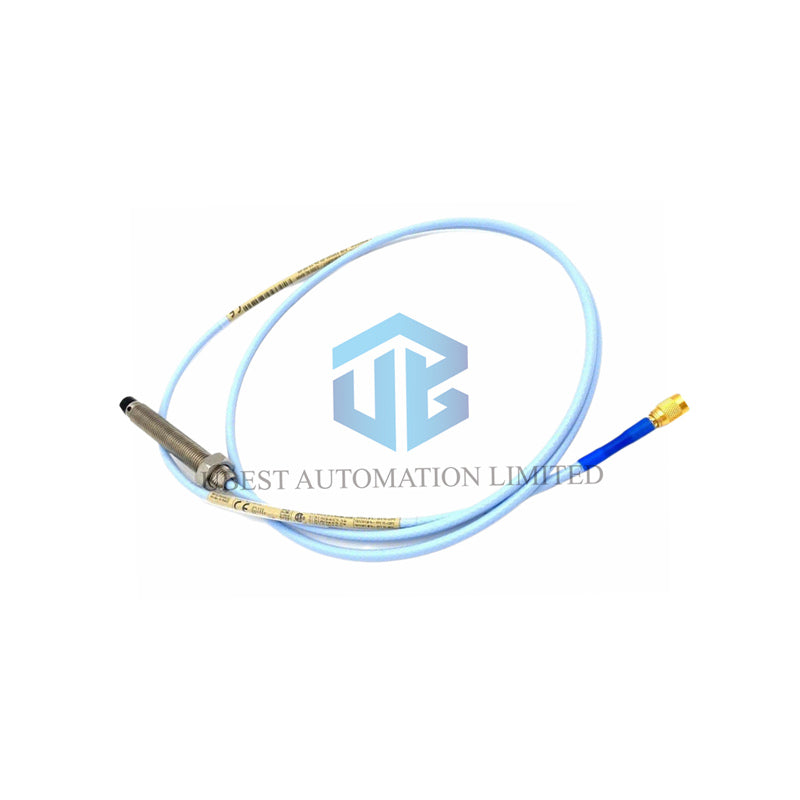

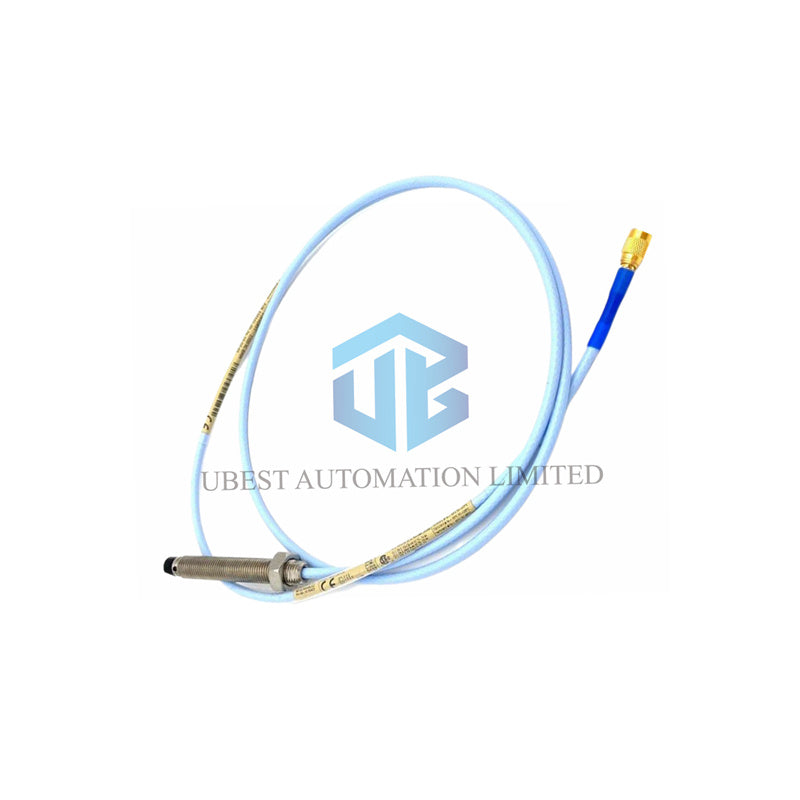

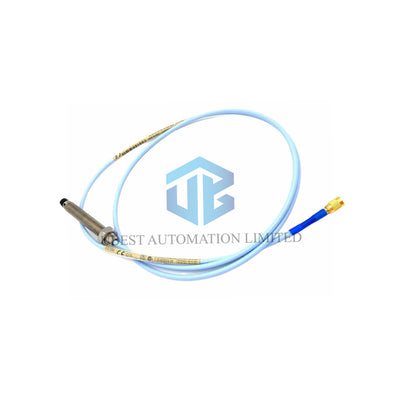

330101-23-34-10-02-05 - Bently Nevada 3300 XL 8 mm Probe

In stock
Manufacturer:
Bently Nevada
Product No.:
330101-23-34-10-02-05
Condition:
In Stock
Product Type:
Probe
Product Origin:
USA
Weight:
323g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

330101-23-34-10-02-05 – Bently Nevada 3300 XL 8 mm Probe Overview

Complete Suffix Information – Tree Structure

330101-23-34-10-02-05 – Full model breakdown:
├─ 330101 : 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
   ├─ 23 : Unthreaded Length Option = 2.3 inches
   ├─ 34 : Overall Case Length Option = 3.4 inches
   ├─ 10 : Total Length Option = 1.0 meter (3.3 feet)
   ├─ 02 : Connector & Cable Type = Miniature coaxial ClickLoc connector, standard cable
   └─ 05 : Agency Approval = CSA, ATEX, IECEx Approvals

Technical Specifications (Key Parameters)

  • Brand: Bently Nevada (Baker Hughes)
  • Model Number: 330101-23-34-10-02-05
  • Product Series: 3300 XL 8 mm Probe
  • Thread Type: 3/8-24 UNF, stainless steel case (AISI 303/304 SST)
  • Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm target clearance
  • Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) ±5% (1,5,9m systems)
  • Probe DC Resistance (RPROBE): 7.59 ± 0.50 Ω (1.0 m cable length)
  • Extension Cable Capacitance: 69.9 pF/m typical
  • Field Wiring Max Length: 305 m (1000 ft) between proximitor and monitor
  • Recommended Gap (Radial Vibration): -9 Vdc ≈ 1.27 mm (50 mils)
  • Deviation from Straight Line (DSL): < ±0.025 mm (±1 mil) for 5m or 1m systems

Temperature Range & Environmental Robustness

  • Standard Probe Operating Temperature: -52°C to +177°C (-62°F to +350°F) – probe tip and case.
  • Extended Temperature Range (ETR) Probe Tip: -52°C to +218°C (-62°F to +425°F).
  • Cable & Connector (ETR): -51°C to +260°C (-60°F to +500°F).
  • Pressure Seal: Viton® O-ring, differential pressure sealing between tip and case.
  • Relative Humidity Performance: less than 3% change in ASF after 56 days at 93% RH (IEC 68-2-3).
  • Agency Approvals: CSA, ATEX, IECEx (option 05). Temperature classifications T1 to T5 for gas, and T280°C down to T90°C for dust.

Frequently Asked Questions (FAQ)

  • Q: What is the difference between standard and optional FluidLoc cable?
    FluidLoc prevents oil or process liquid migration through the probe cable interior, ideal for machines with potential leaks.
  • Q: Can I use this 3300 XL 8 mm Probe with 9-meter extension cables?
    Yes, the system maintains 7.87 V/mm scale factor with ±6.5% interchangeability when using extended lengths.
  • Q: What shipping carriers do you use?
    We ship worldwide via FedEx, UPS, and DHL to ensure fast and tracked delivery.
  • Q: Is this probe compatible with previous 3300 series monitors?
    Yes, the 3300 XL 8 mm Probe works with 3300 XL proximitor sensors and most 3300 monitoring systems.
  • Q: What approvals does suffix 05 include?
    Option 05 includes CSA, ATEX, and IECEx certifications for hazardous area installations.
  • Q: How do I set the gap for radial vibration?
    Adjust probe target gap to obtain -9 Vdc output, which equals approx 1.27 mm (50 mils) air gap.
