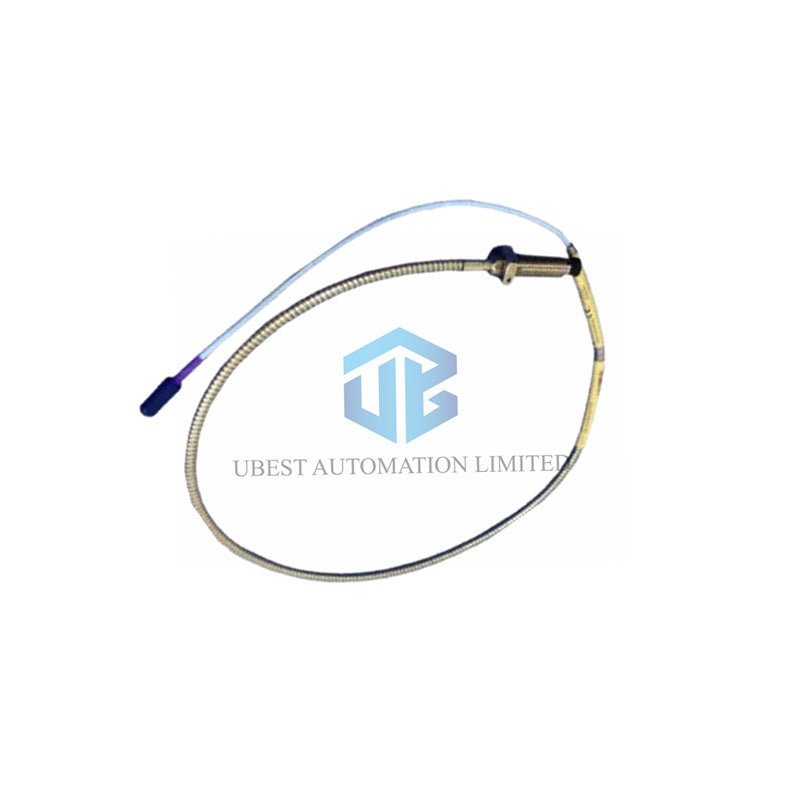

Bently Nevada 3300 XL 8mm Proximity Probe – Premium Vibration Monitoring Solution

Product Overview & Key Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe
• Complete Suffix Information:
  • 330102: Base Model (8 mm Probe, 3/8-24 UNF Thread, Armored)
  • -00: Unthreaded Length = 0.0 inches
  • -12: Overall Case Length = 1.2 inches
  • -90: Total Cable Length = 9.0 meters (29.5 feet)
  • -02: Connector Type = Miniature Coaxial ClickLoc
  • -05: Agency Approvals = CSA, ATEX, IECEx

Technical Parameters & Electrical Data

• Probe DC Resistance (9.0m): 9.87 Ω ± 0.50 Ω
• Compatible Sensor: Requires 3300 XL 8 mm Proximitor
• Power Supply Range: -17.5 Vdc to -26 Vdc (-23 Vdc min with safety barriers)
• Supply Sensitivity: < 2 mV change per volt input change
• Output Impedance: 50 Ω
• Calibration Target: AISI 4140 Steel
• Recommended Gap: 1.27 mm (50 mils)

Mechanical & Environmental Specifications

• Probe Tip Material: Polyphenylene Sulfide (PPS)
• Probe Case Material: AISI 303/304 Stainless Steel
• Pressure Sealing: Viton® O-ring Design
• Temperature Range (T1): -55°C to +232°C
• Hazardous Area Certifications:
  • Class I, Zone 0: AEx/Ex ia IIC T5...T1 Ga
  • Class I, Zone 2: AEx/Ex nA/ec IIC T5...T1 Gc
• Maximum Altitude: 2000 meters

Frequently Asked Questions

• What is the cable length of this model?
  This specific model has a 9.0 meter (29.5 feet) cable length.
• Can I use this with a 5-meter Proximitor?
  No. The 330102-00-12-90-02-05 requires the matching 9-meter Proximitor sensor.
• What safety approvals does it have?
  It carries CSA, ATEX, and IECEx approvals for hazardous locations.
• What is the probe tip made from?
  The tip uses durable PPS material for chemical and wear resistance.
• Where can I buy genuine Bently Nevada probes?
  Ubest Automation supplies original Bently Nevada 3300 XL monitoring components.
