Bently Nevada 3300 XL 8 mm Proximity Probes – Long Tip, Short Cable, Full Approvals

Complete Suffix Configuration

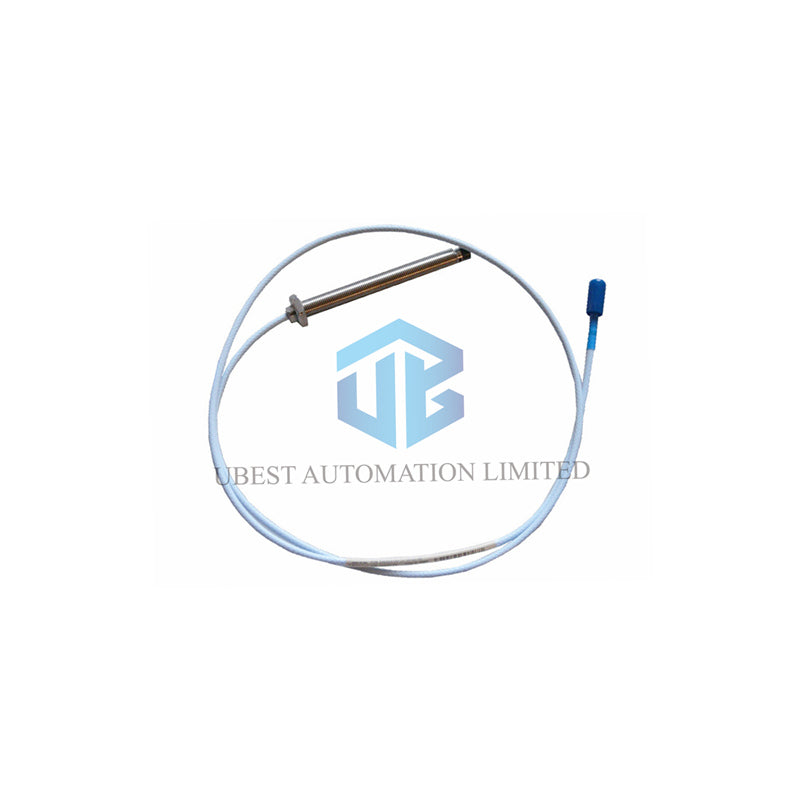

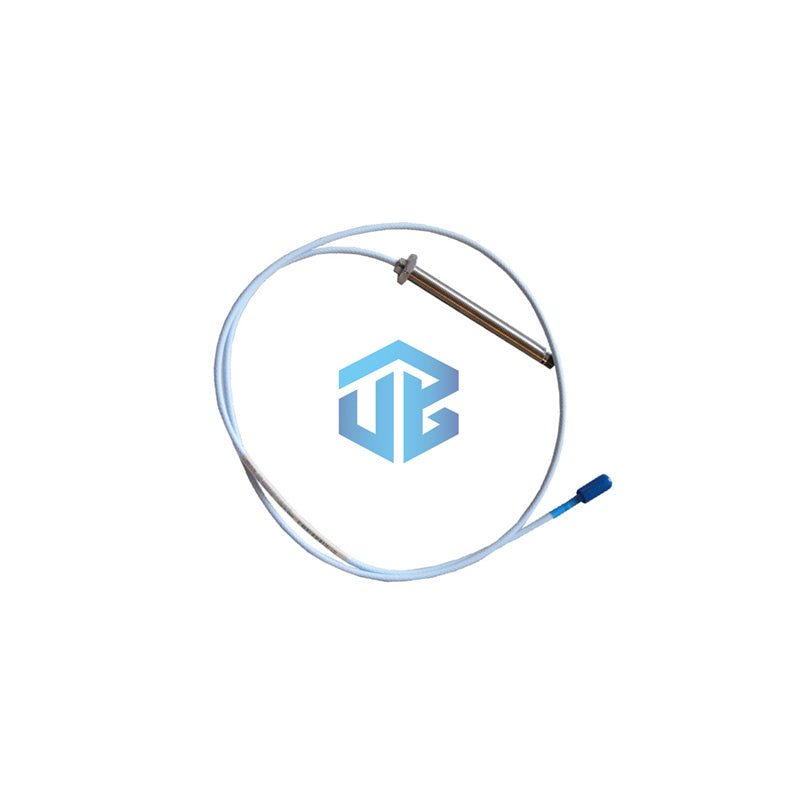

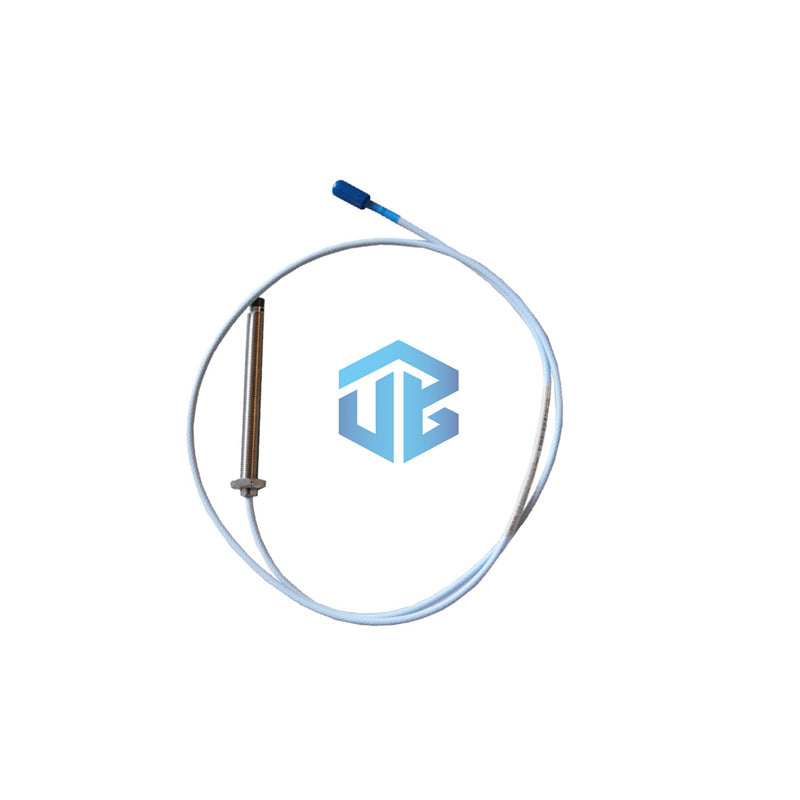

The part number 330103-17-23-05-02-05 defines the exact build of this probe:

• 330103 – 3300 XL 8 mm probe, M10 x 1 thread, unarmoured.
• 17 – Minimum unthreaded length: 170 mm.
• 23 – Overall case length: 230 mm.
• 05 – Total length: 0.5 meter (1.6 feet).
• 02 – Miniature coaxial ClickLoc connector, standard cable.
• 05 – Approvals: CSA, ATEX, IECEx.

Key Technical Specifications

• Brand: Bently Nevada
• Model: 330103-17-23-05-02-05
• Type: 3300 XL 8 mm Proximity Probes, Metric
• Linear range: 2 mm (80 mils) from 0.25 to 2.3 mm gap.
• Recommended gap: -9 Vdc (approximately 1.27 mm / 50 mils).
• Probe DC resistance (RPROBE): 7.45 Ω ± 0.50 (0.5 m length).
• Tip material: Polyphenylene sulfide (PPS).
• Case material: AISI 303/304 stainless steel.
• Thread size: M10 x 1, max engagement 15 mm.
• Weight: 323 g/m (11.4 oz/m).

Mechanical & Environmental Specifications

• Standard temperature range: -52 °C to +177 °C.
• Extended cable rating: Up to +260 °C for cable and connector.
• Humidity performance: Less than 3% ASF change after 56 days at 93% RH.
• Pressure seal: Viton® O-ring; not factory-tested.
• Low temperature caution: Avoid exposure below -34 °C to protect pressure seal.
• Hazardous area approvals: Class I, Zone 0 (ia) and Zone 2 (nA, ec) with barriers.

Field Wiring & Compatibility

• Wire gauge: 0.2 to 1.5 mm² (16–24 AWG), three-conductor shielded triad.
• Max cable length to monitor: 305 meters (1000 feet).
• Frequency response: See manufacturer graphs for roll-off at extended distances.
• Connector type: Miniature coaxial ClickLoc with standard cable.
• Short cable advantage: 0.5 m length minimizes signal loss in confined spaces.

Frequently Asked Questions (FAQ)

• When should I choose the 170 mm unthreaded length?
  Use the 330103-17-23-05-02-05 when you need to pass through thick insulation, bearing housings, or safety barriers before threading.
• Does the 0.5 m cable require a special Proximitor?
  Yes, always pair this probe with a Proximitor calibrated for 0.5 meter cable length.
• What approvals does the -05 suffix provide?
  It includes CSA, ATEX, and IECEx certifications for international hazardous locations.
• Can I extend the cable further?
  Field wiring between Proximitor and monitor can reach 305 m, but never extend the probe cable itself.
