Product Overview for 3300 XL 8 mm Probe Metric

• 3300 XL 8mm Probe uses a PPS tip and AISI 303/304 SST case.
• This model supports a linear range from 0.25 mm to 2.3 mm.
• It provides a recommended -9 Vdc gap setting for radial vibration.
• The probe operates from -52°C to +177°C for standard tasks.

Complete Suffix Information (Tree Structure)

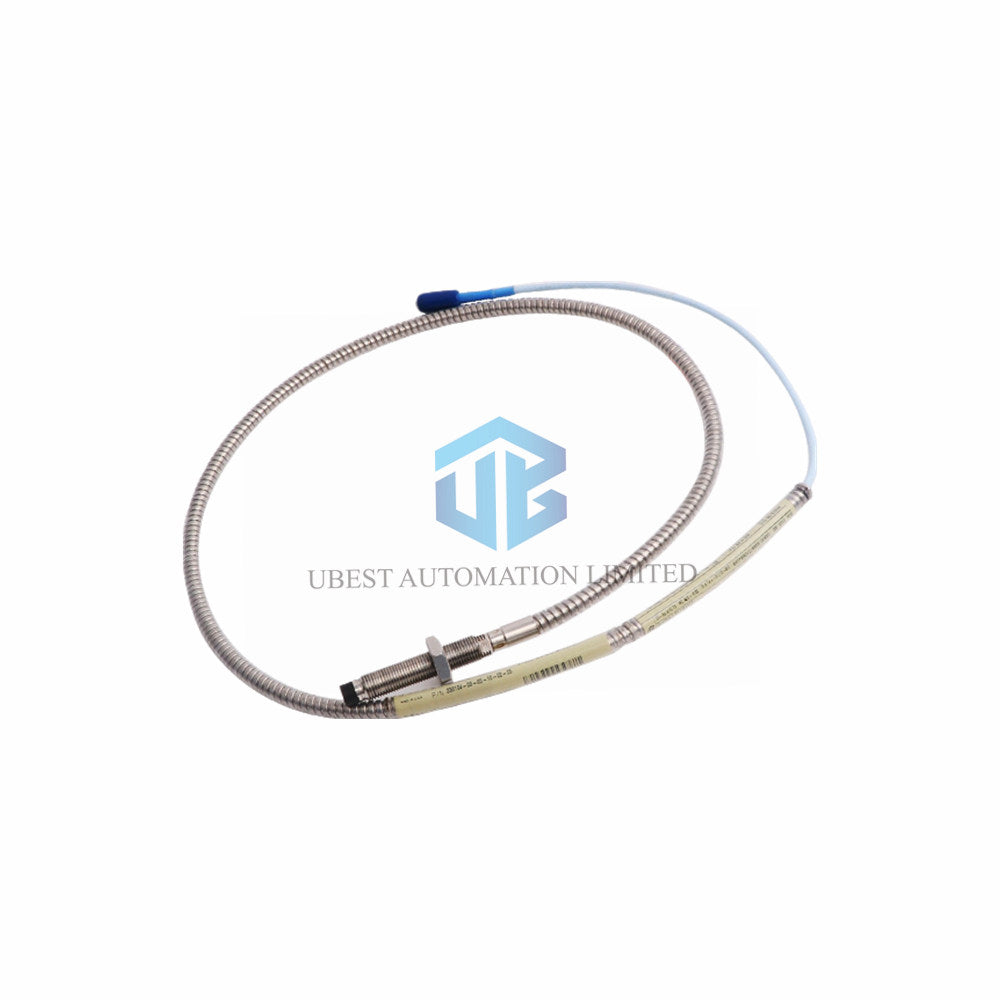

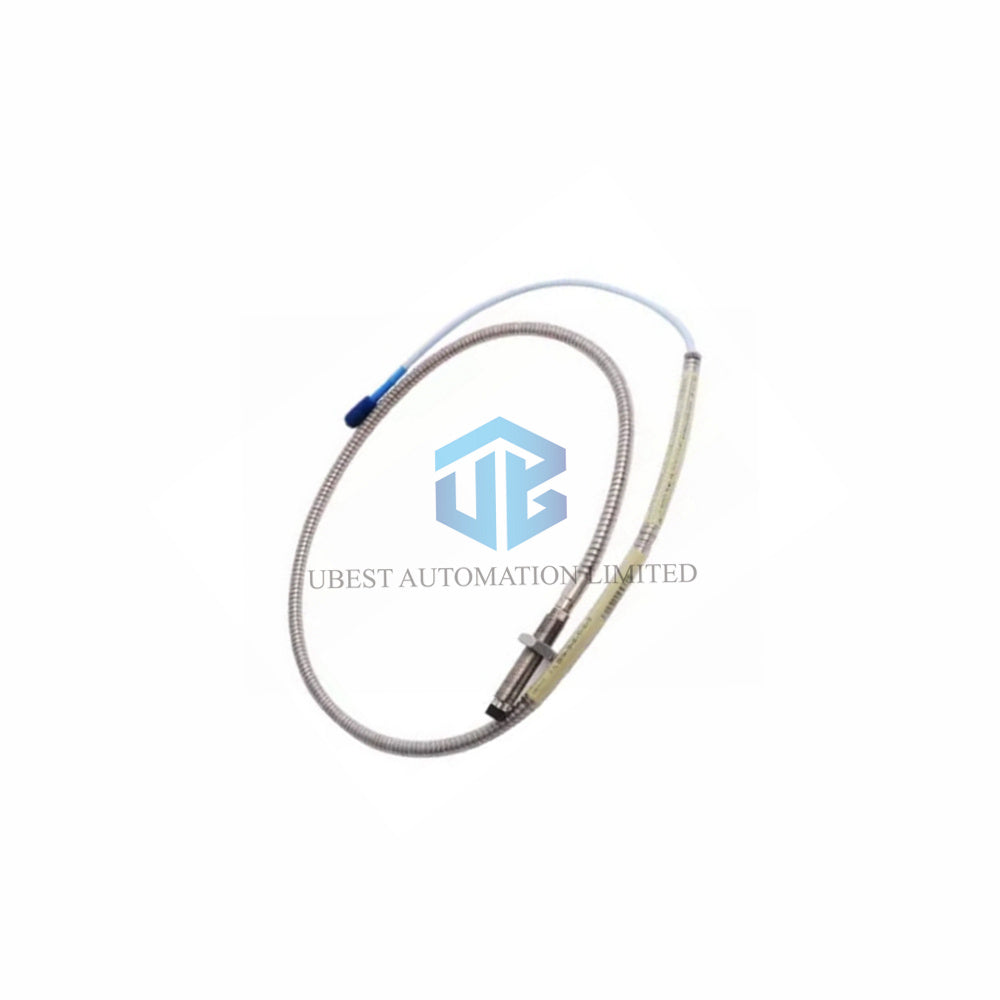

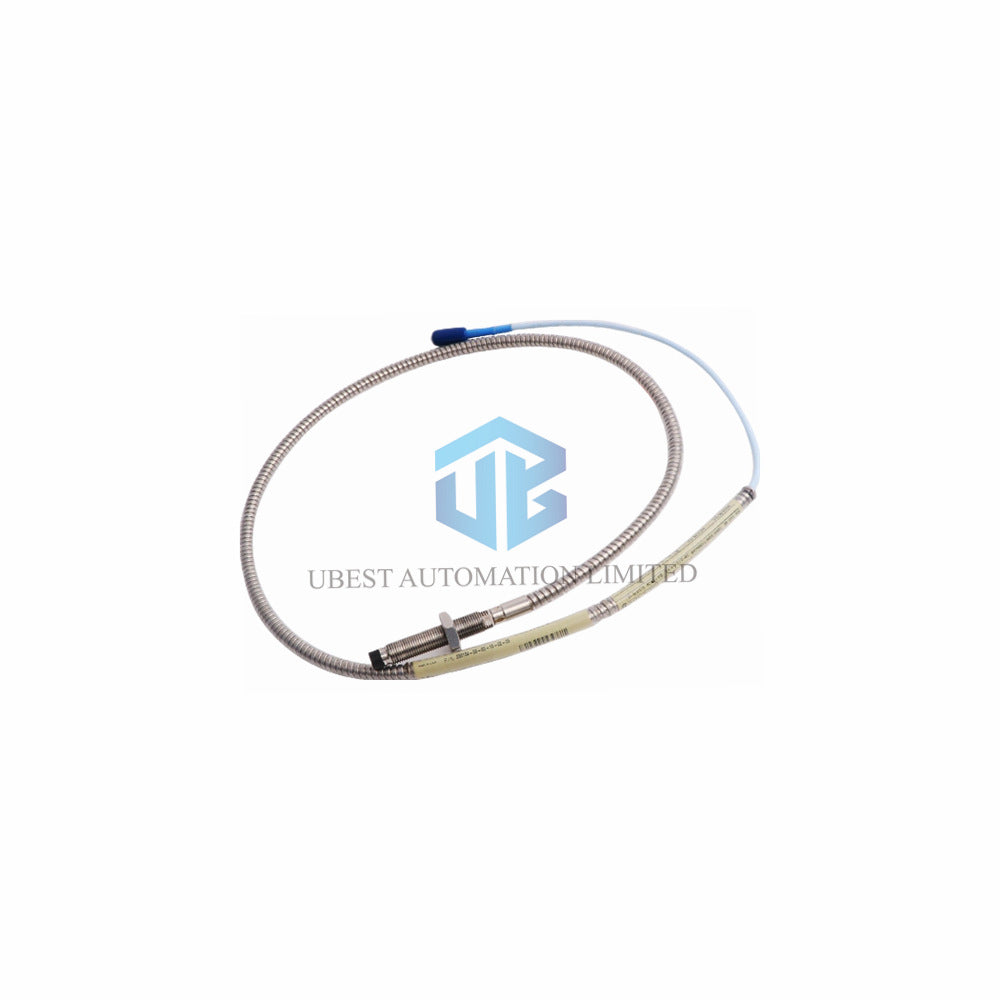

• 330104 : 3300 XL 8 mm Probe, M10 x 1 thread, with armor
  • Unthreaded Length Option 13 = 130mm
  • Overall Case Length Option 20 = 200mm
  • Total Length Option 10 = 1.0 meter (3.3 feet)
  • Connector Option 02 = Miniature coaxial ClickLoc connector, standard cable
  • Agency Approval Option 05 = CSA, ATEX, IECEx Approvals

Technical Specifications for Bently Nevada 330104-13-20-10-02-05

• Brand: Bently Nevada
• Model: 330104-13-20-10-02-05
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Probe Thread: M10x1 with 15 mm max engagement
• Nominal DC Resistance: 7.59 ± 0.50 Ω for 1.0m length
• Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm
• Recommended Gap: -9 Vdc (approx 1.27 mm / 50 mils)
• Operating Temperature (Standard Probe): -52°C to +177°C
• Storage Temperature: Same as operating range
• Pressure Seal: Viton® O-ring design for differential pressure
• Humidity Tolerance: Less than 3% ASF change at 93% humidity for 56 days
• Magnetic Field Immunity (60 Hz, 300 Gauss): Low output voltage from 0.0004 to 0.0045 pp/Gauss

Frequently Asked Questions (FAQ)

• Can I use this probe for axial position monitoring? Yes, the 3300 XL 8 mm Probe works for both radial vibration and axial position.
• What happens below -34°C? Exposing the probe below -34°C may damage the pressure seal.
• Do I need an external driver? Yes, pair it with a 3300 XL Proximitor Sensor.
• Is the cable replaceable? No, the cable is integral to the probe assembly.
• How do I verify pressure sealing? Contact Bently Nevada custom design for a pressure test.
