Precision Machinery Monitoring with Bently Nevada

Product Overview & Key Features

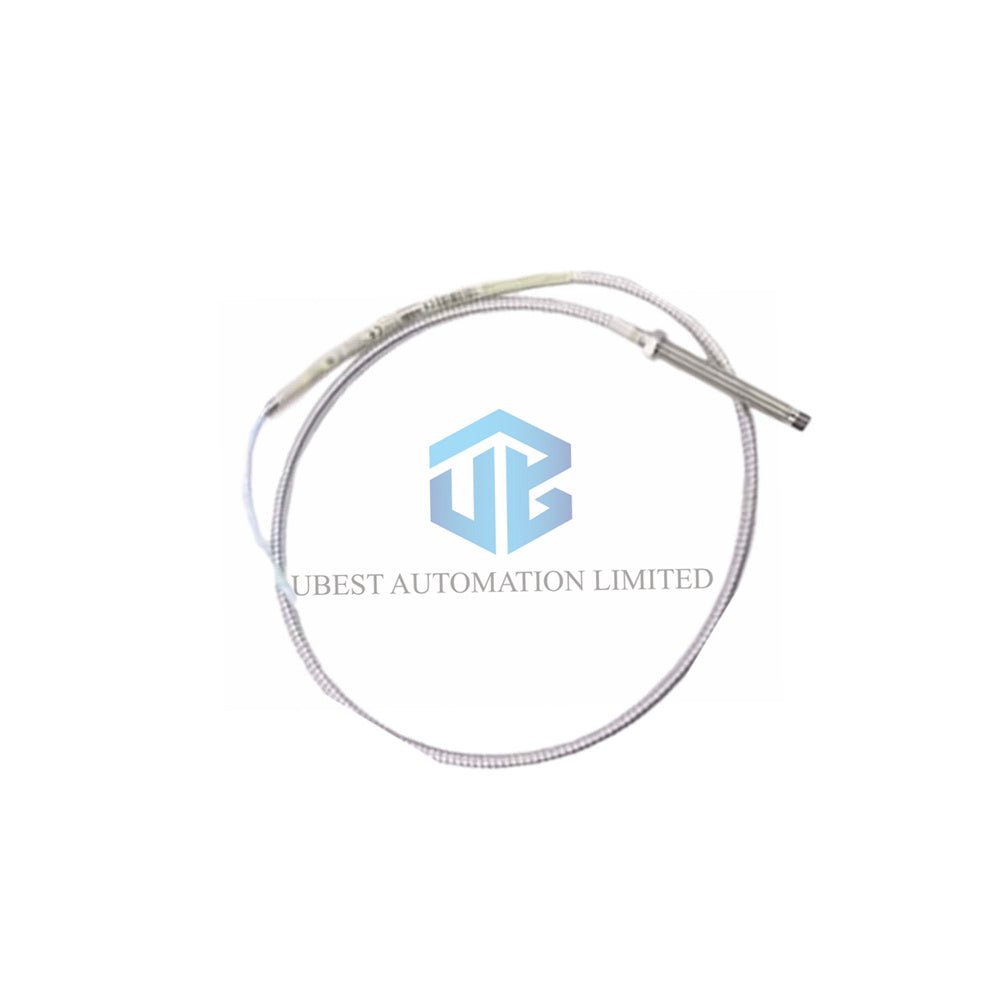

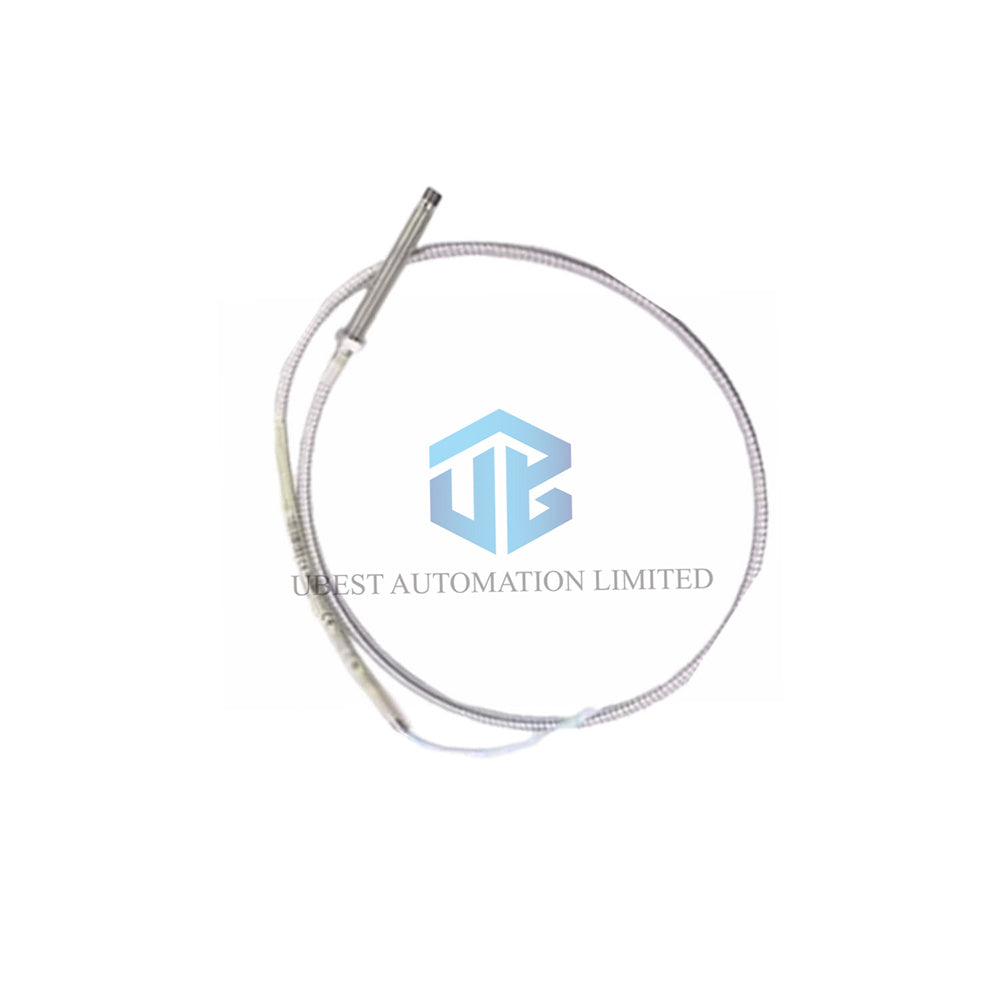

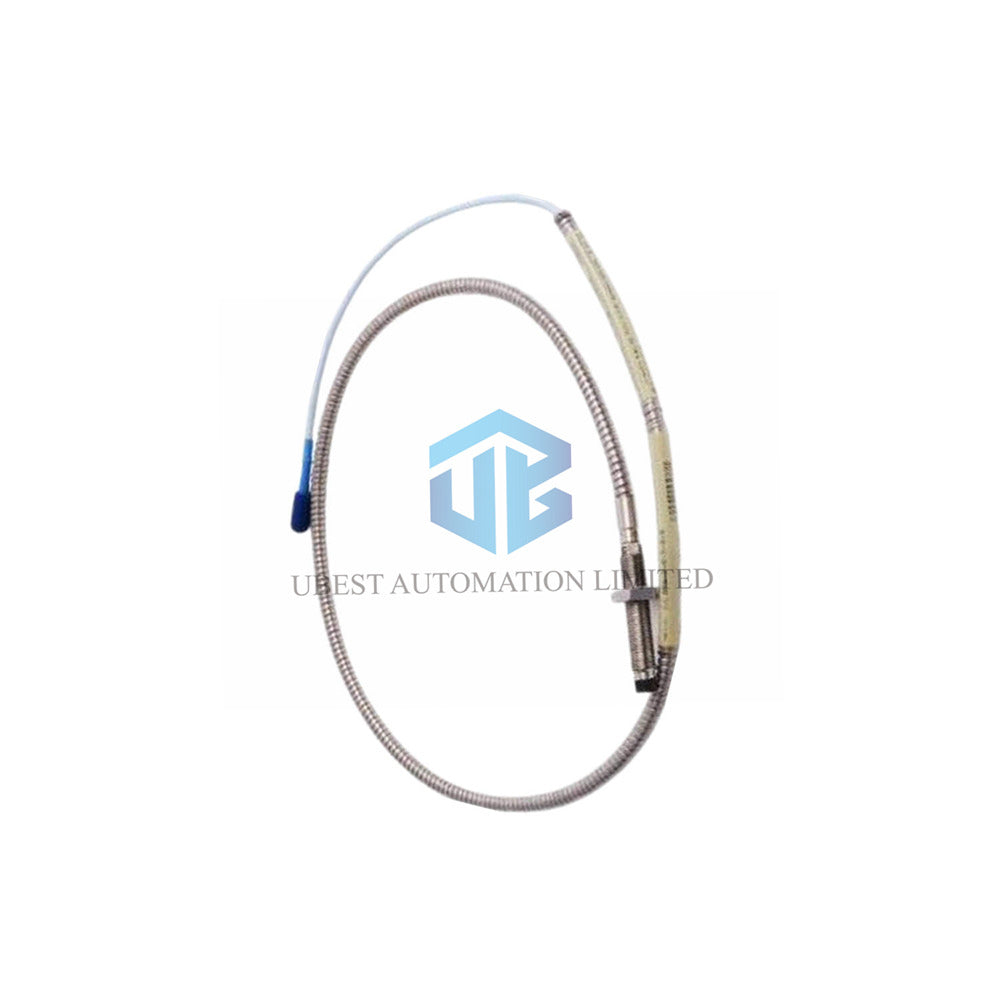

• Brand & Model: Bently Nevada 330172-10-24-05-02-00
• Product Type: 3300 5mm Proximity Probe with armored cable.
• Core Function: Delivers accurate shaft vibration and positional data for machinery protection.
• Robust Construction: Built with an AISI 304 stainless steel case and a resilient PPS probe tip.
• Secure Connection: Features a reliable Miniature Coaxial ClickLoc connector.

Complete Suffix Code Breakdown

• 330172: Base Model (5mm Probe, 1/4-28 UNF Thread)
• 10: Unthreaded Length = 1.0 inch
• 24: Overall Case Length = 2.4 inches
• 05: Total Cable Length = 0.5 meter (1.6 feet)
• 02: Connector = Miniature Coaxial ClickLoc
• 00: Agency Approval = Not Required

Detailed Technical Specifications

• Electrical Power: Requires -17.5 to -26 VDC supply with a maximum of 12 mA current.
• Output Impedance: 50 Ohms for consistent signal output.
• Probe Resistance: 7.45 ± 0.5 Ohms (measured center to outer conductor).
• Operating Temperature: Functions from -35°C to +177°C (-31°F to +351°F).
• Cable Specification: 75 Ohm triaxial cable with FEP insulation.
• Tensile Strength: 222 N (50 lbf) for both probe case and cable connections.
• Installation Torque: Use 5.1 N·m (45 in-lb) recommended, 7.3 N·m (65 in-lb) maximum.
• Cable Bend Radius: Maintain at least a 25.4 mm (1.0 inch) radius.

Frequently Asked Questions (FAQ)

• Q: What is the unthreaded length of this model?
  A: This model has a 1.0-inch unthreaded length (Option 10).
• Q: Does this probe require specific agency approvals?
  A: No, the suffix '00' indicates agency approvals are not required for this unit.
• Q: What is the total length of the attached cable?
  A: The probe comes with a 0.5-meter (1.6-foot) integrated armored cable.
• Q: Is the Bently Nevada 330172-10-24-05-02-00 suitable for high-vibration areas?
  A: Yes, its armored construction and robust design make it ideal for such environments.
