Introduction: Precision Machinery Monitoring

Product Overview & Complete Suffix Information

• Brand: Bently Nevada
• Base Model: 3300 XL 5mm Proximity Probes

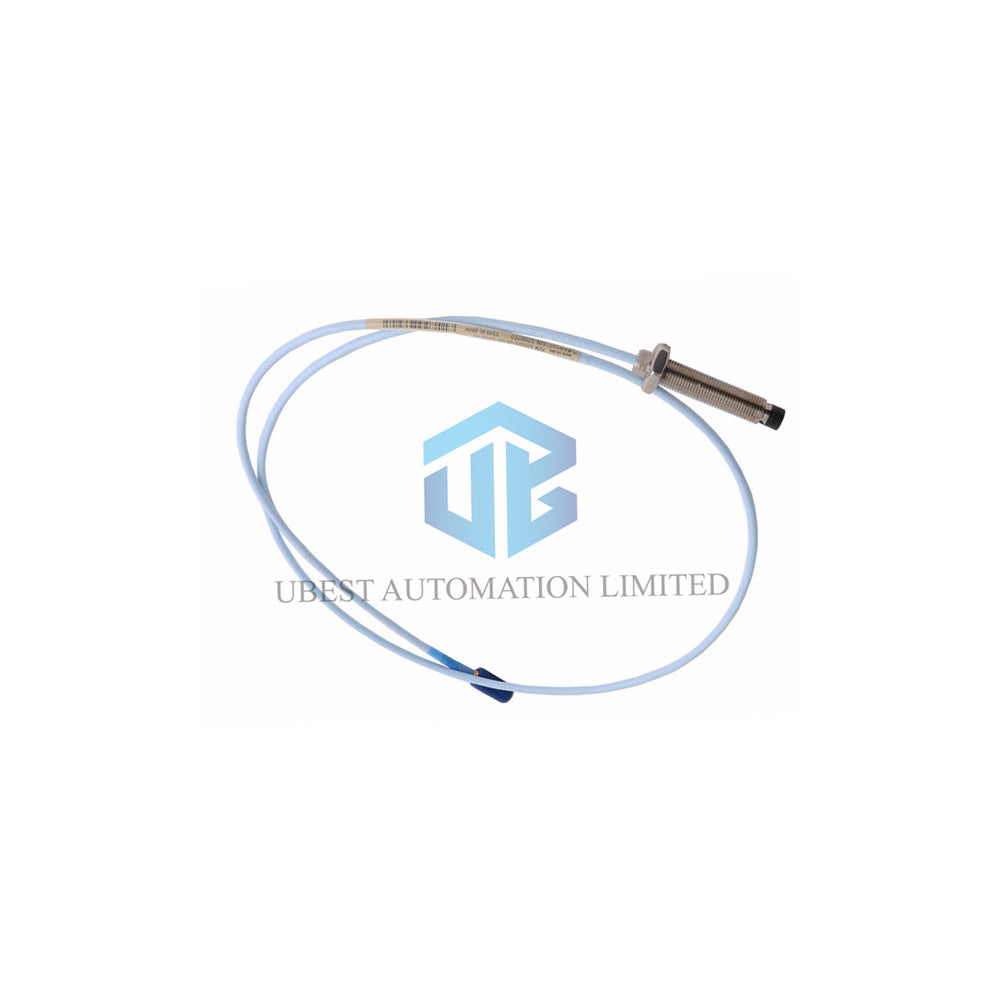

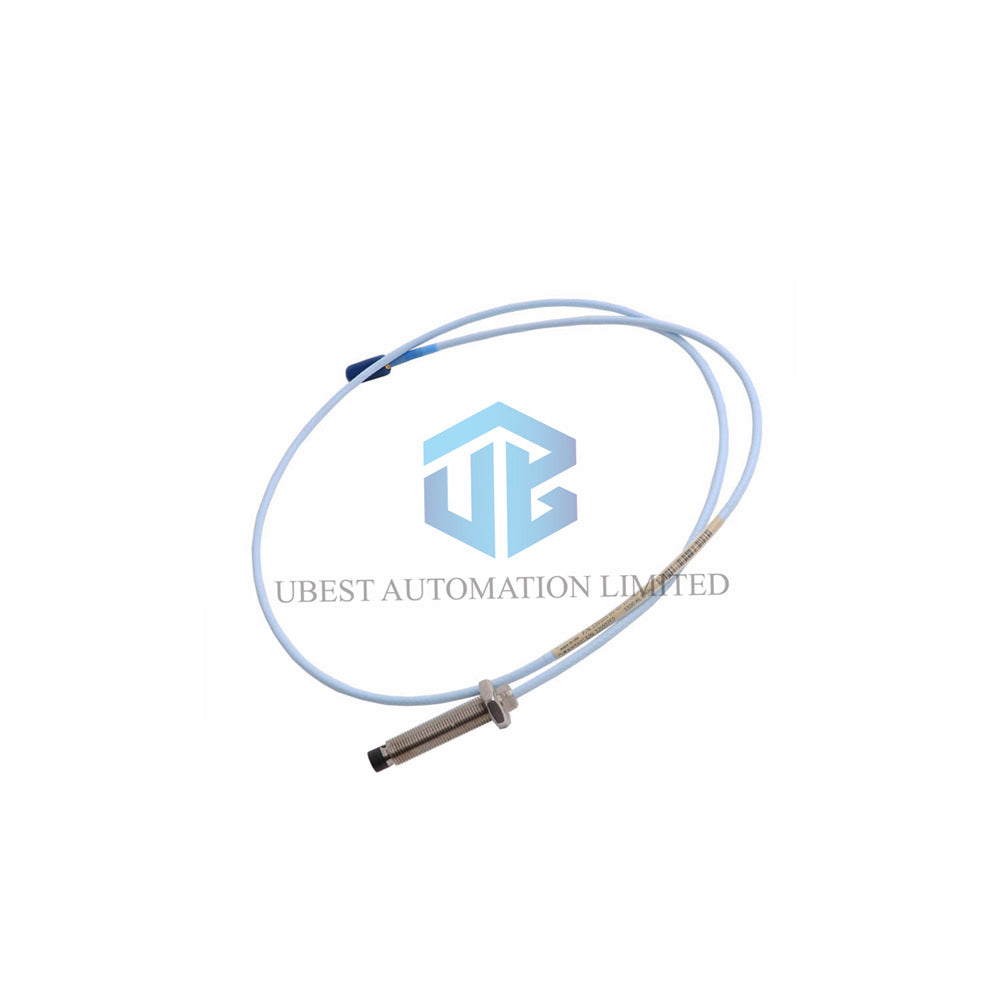

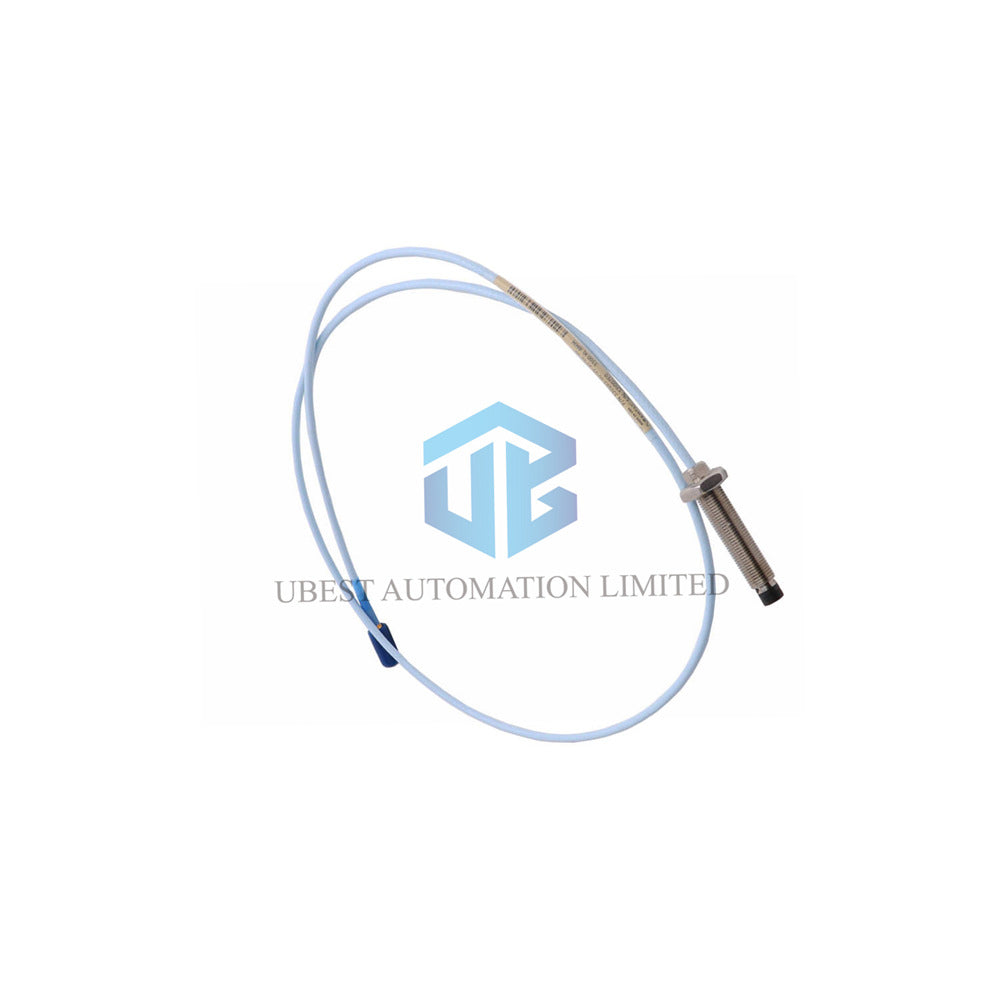

• Full Part Number: 330173-00-03-10-02-00
• Suffix Breakdown:
  • 330173: 5mm Probe, M8x1 thread, without armor
  • -00: Unthreaded Length = 0 mm
  • -03: Overall Case Length = 30 mm
  • -10: Total Cable Length = 1.0 metre (3.3 feet)
  • -02: Connector = Miniature coaxial ClickLoc
  • -00: Agency Approval = Not required

Key Technical Specifications

• Brand & Model: Bently Nevada 330173-00-03-10-02-00
• Electrical Input: Requires -17.5 to -26 VDC power supply at 12 mA max.
• Output Impedance: 50 Ω
• Probe Cable: 75 Ω triaxial with FEP insulation, 1.0m length.
• Probe DC Resistance: 7.59 Ω ± 0.50 Ω (center to outer conductor)
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability
• Probe Case Material: AISI 304 stainless steel
• Operating Temperature: -35°C to +177°C (-31°F to +351°F)
• Tensile Strength: 222 N (50 lbf) for case and connector joints
• Case Torque: 5.1 N·m (45 in-lb) recommended, 7.3 N·m (65 in-lb) max
• Minimum Bend Radius: 25.4 mm (1.0 inch) for the cable

Performance & Environmental Data

• The system works with an AISI 4140 steel target gapped at 1.27 mm.
• Magnetic Field Immunity: Excellent resistance to 60 Hz fields up to 300 Gauss.
• Refer to the detailed table in the specs for specific gap performance data.
• This probe meets specific temperature classifications for hazardous areas.
• These include EPL Ga, Gc, and Dc with various "T" ratings.

Frequently Asked Questions (FAQ)

• What is the cable length? This model has a fixed 1.0-meter cable.
• Can it work in high temperatures? Yes, it operates up to +177°C continuously.
• What connector does it use? It uses the miniature coaxial ClickLoc connector.
• Is the probe tip durable? The PPS plastic tip resists wear and is chemically resistant.
• How do I order? Contact our sales team for pricing and stock availability.
