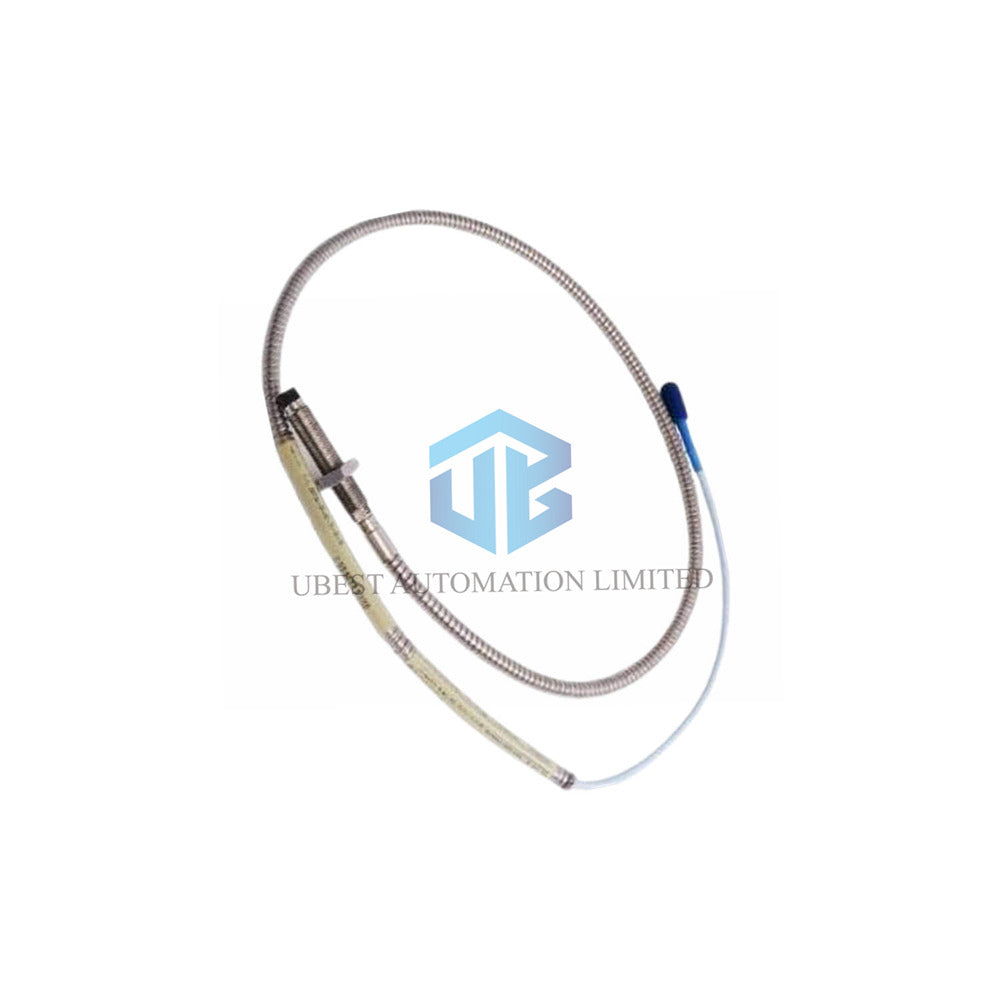

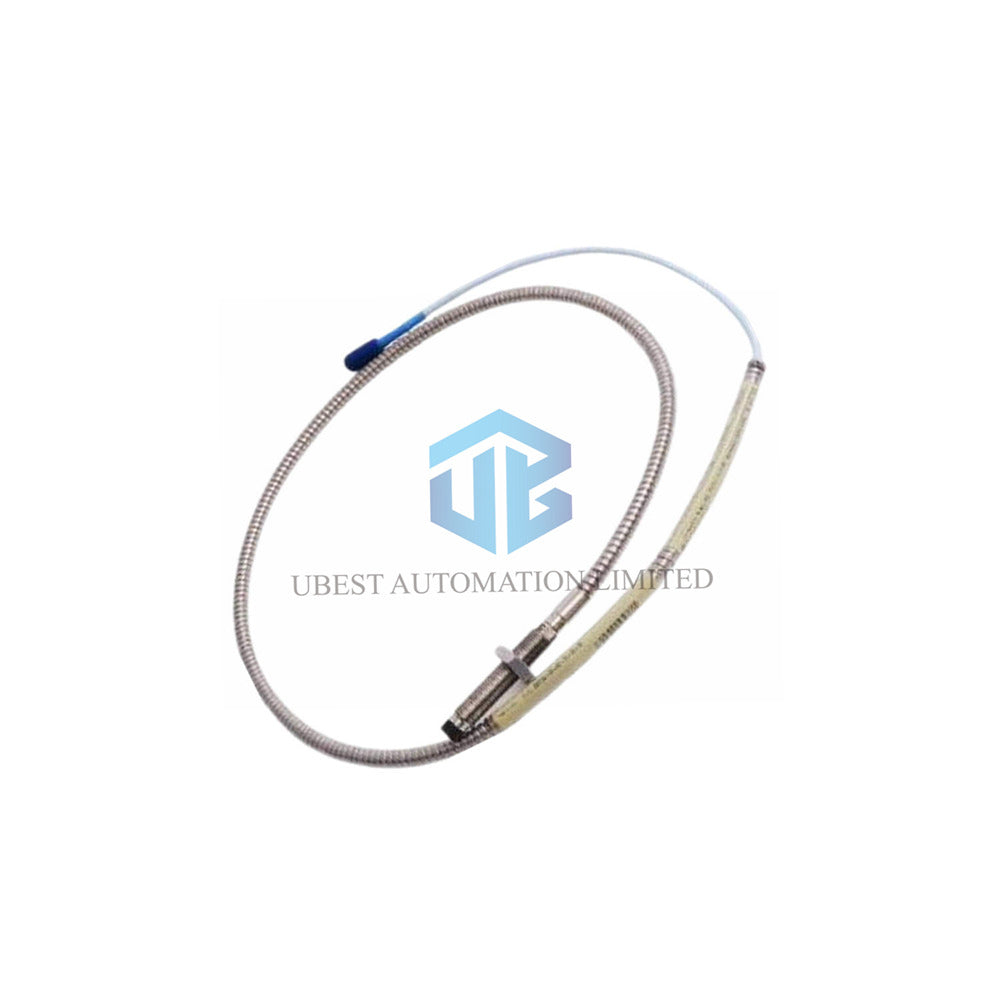

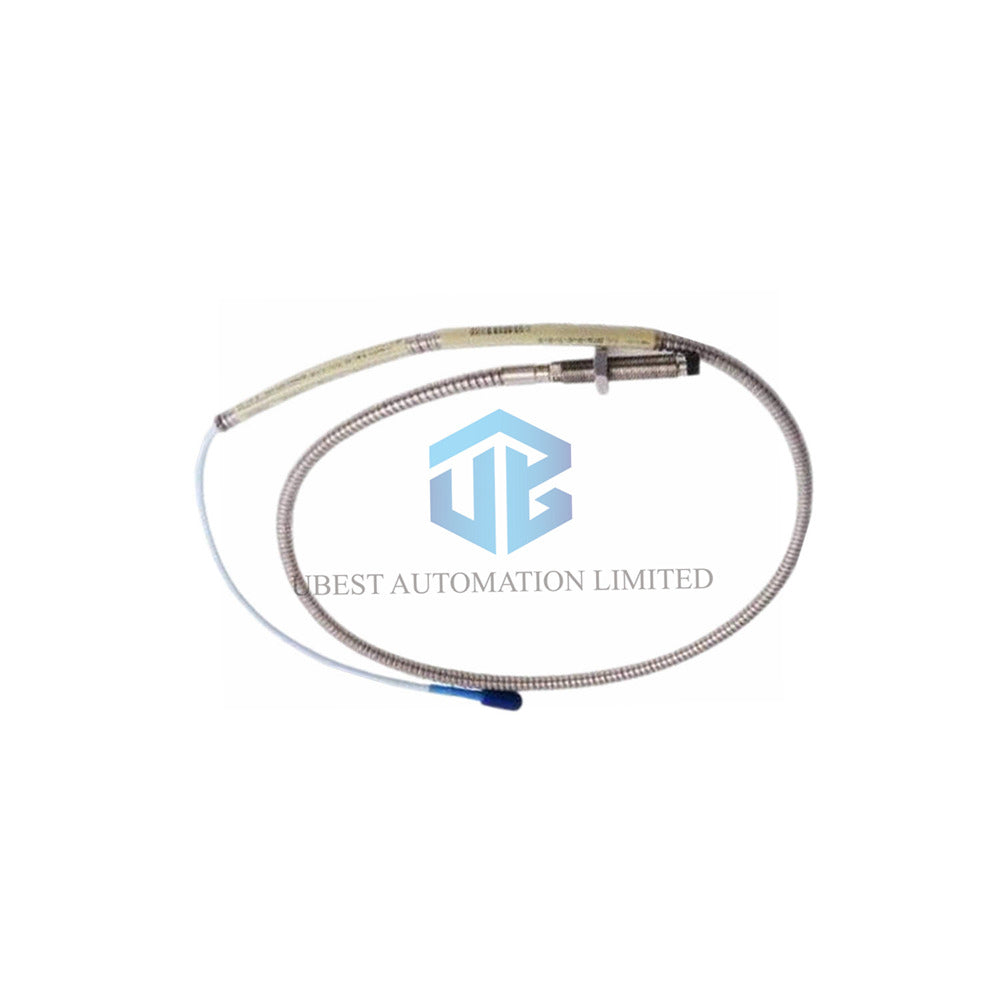

330174-00-02-10-02-CN Bently Nevada 3300 5mm Probe

Complete suffix information

• 330174-00-02-10-02-CN
  • 00 – 0 mm unthreaded length
  • 02 – 20 mm overall case length
  • 10 – 1.0 metre total cable length
  • 02 – Miniature coaxial ClickLoc connector, standard cable
  • CN – Country-specific agency approval

Technical specifications

• Brand: Bently Nevada
• Model: 330174-00-02-10-02-CN
• Type: 3300 5mm proximity probe, M8 x 1 thread, armored
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 304 stainless steel
• DC resistance (1.0m probe): 7.59 Ω ± 0.50 (center to outer conductor)
• Temperature range: -35°C to +177°C
• Thread engagement max: 12 mm (M8 x 1)
• Weight: 0.323 Kg
• Power requirement: -17.5 Vdc to -26 Vdc, <12 mA
• Output resistance: 50 W
• Supply sensitivity: <2 mV change per volt input change
• Probe tensile strength: 222 N (case to lead, lead to connector)
• Recommended case torque: 5.1 N·m (max 7.3 N·m)
• Connector torque: max 0.565 N·m
• Min cable bend radius: 25.4 mm
• Magnetic field immunity (60 Hz): as low as 0.0004 Vpp/gauss (probe only)

Frequently asked questions

• What extension cable works with this probe? Use Bently Nevada 3300 series extension cables with ClickLoc compatibility.
• Can this probe operate below -30°C? Rated -35°C, but avoid sustained below -34°C to preserve pressure seal.
• Is the tip replaceable? No, it is a factory-sealed integral tip for maximum reliability.
• What target material does the spec reference? Calibration uses AISI 4140 steel; other targets affect linearity.
• Shipping methods? We ship via FedEx, UPS, or DHL express worldwide.

Explore our full range of 3300 5mm Proximity Probes for genuine monitoring solutions. The 5mm Proximity Probes series ensures seamless compatibility with Bently Nevada monitors.
