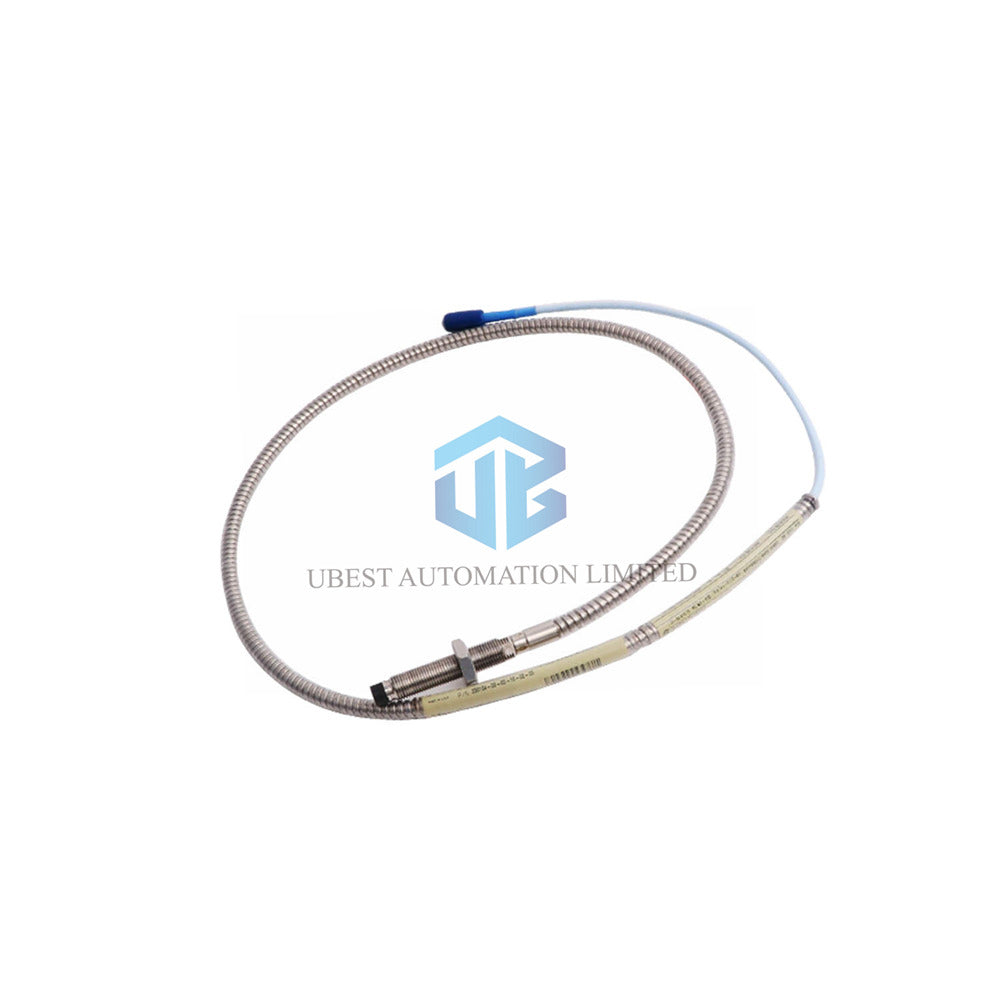

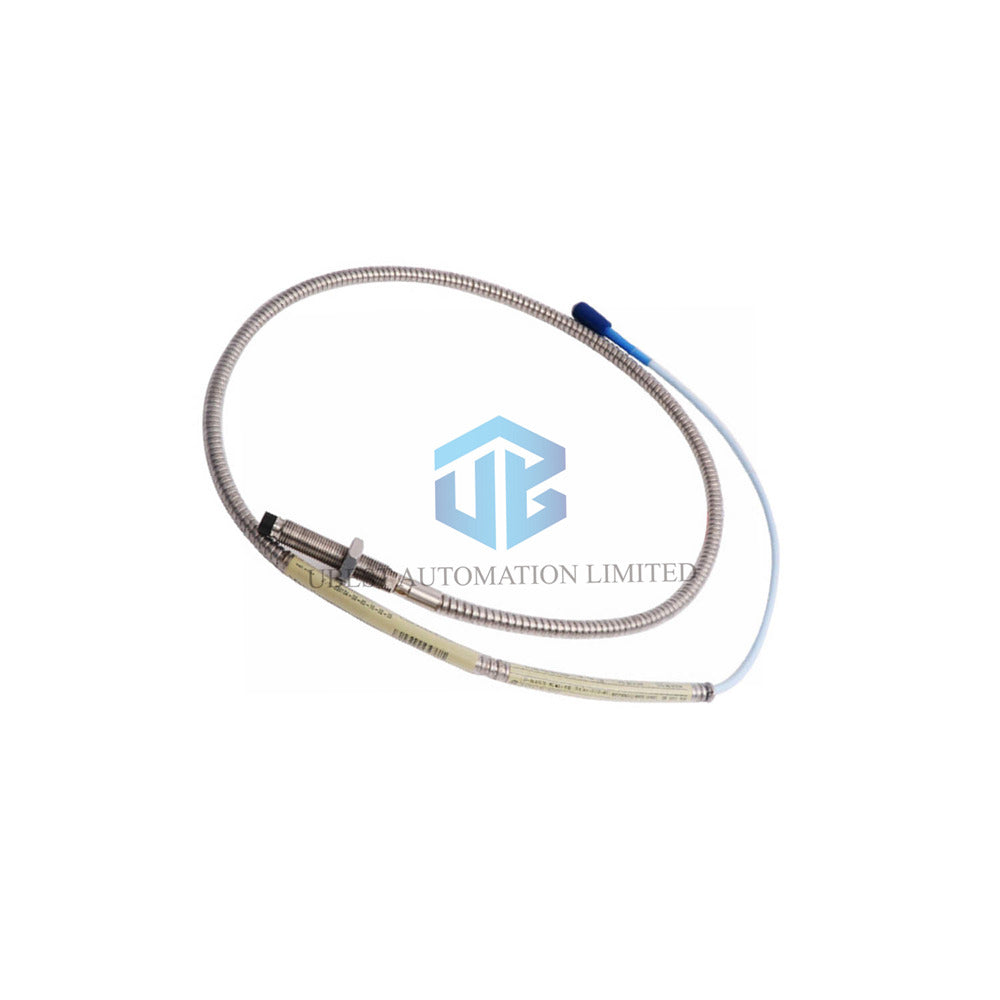

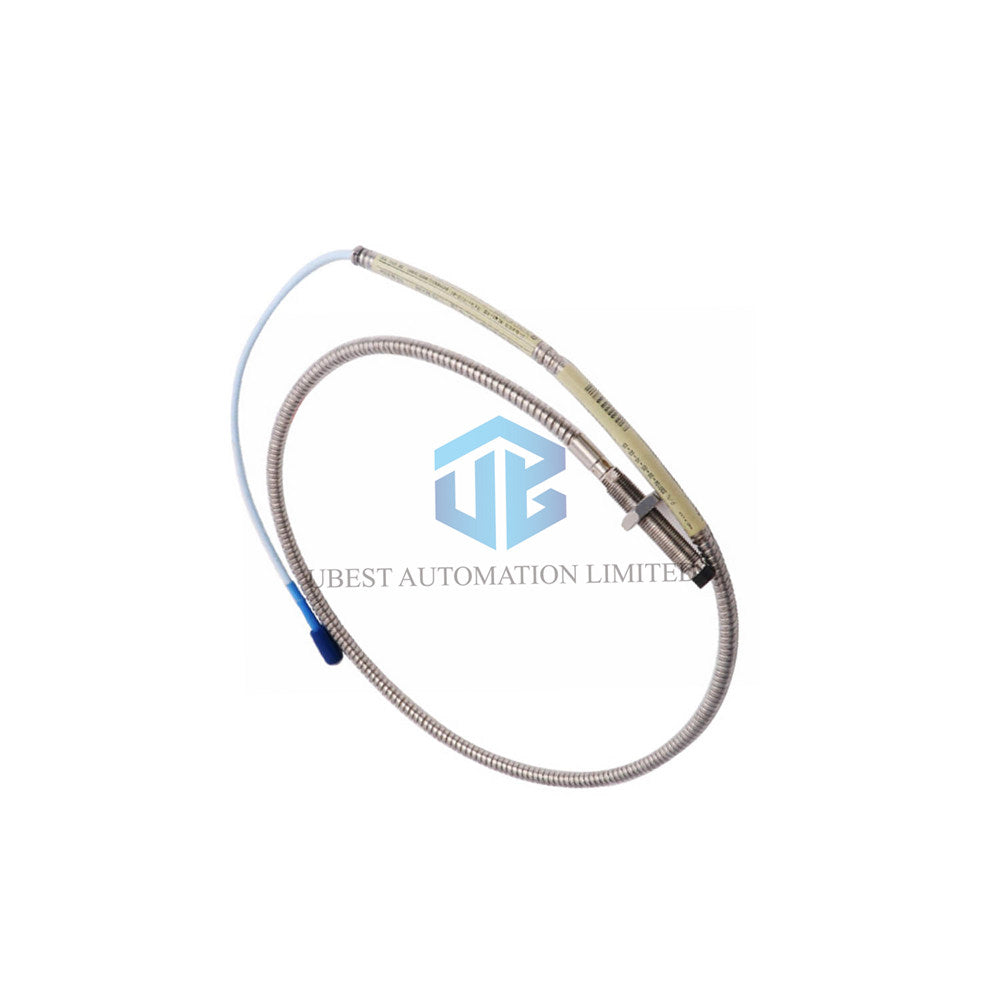

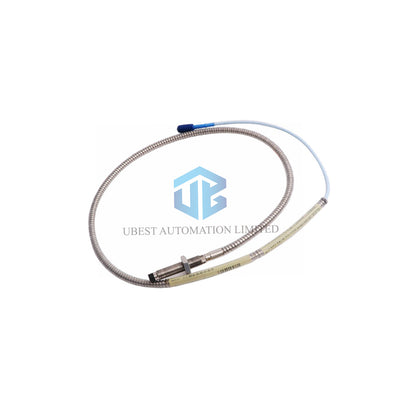

Bently Nevada 3300 XL 8 mm Proximity Probe – Model 330194-05-13-10-05

• Brand: Bently Nevada
• Model Family: 3300 XL 8 mm Proximity Probe
• Full Part Number: 330194-05-13-10-05
• Condition: New & Original in factory packing
• Warranty: 12 months

Complete Suffix Information (Tree Structure)

• 330194 = 3300 XL 8 mm Probe, M10 x 1 thread, with armor
  • Unthreaded Length Option (05) = 50 mm (range 0–230 mm)
  • Overall Case Length Option (13) = 130 mm (range 20–250 mm)
  • Total Length Option (10) = 1.0 meter (3.3 feet)
  • Agency Approval Option (05) = CSA, ATEX, IECEx approvals

Key Technical Specifications

• Power Supply: Requires -17.5 Vdc to -26 Vdc (12 mA max). Barriers need -23 Vdc to -26 Vdc.
• Sensitivity: Less than 2 mV change per volt change in input voltage.
• Output Resistance: 50 Ω
• Nominal Probe DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0m length
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 303 or 304 stainless steel
• Cable Type: 75Ω triaxial FEP insulated (standard)
• Armor: Flexible AISI 302/304 SST with FEP jacket
• Tensile Strength: 330 N (75 lbf) probe case to lead; 270 N (60 lbf) at connectors
• Connector Torque Max: 0.565 N•m (5 in•lbf)
• Probe Case Thread: M10x1, max engagement 15 mm
• Weight: 323 g/m (11.4 oz)
• Sealing: Viton® O-ring (differential pressure seal)

Frequently Asked Questions (FAQ)

• Q: Is this 330194-05-13-10-05 compatible with 3300 XL systems?
• A: Yes, it works perfectly with 3300 Proximitor sensors and 3300 XL extension cables.
• Q: Can I use this probe in hazardous areas?
• A: Yes, agency approval 05 includes CSA, ATEX, and IECEx certifications.
• Q: What is the unthreaded length of this variant?
• A: This probe has 50 mm unthreaded length (option 05).
• Q: Does this probe require a separate extension cable?
• A: No, total length 1.0m makes it a complete one-meter system.
