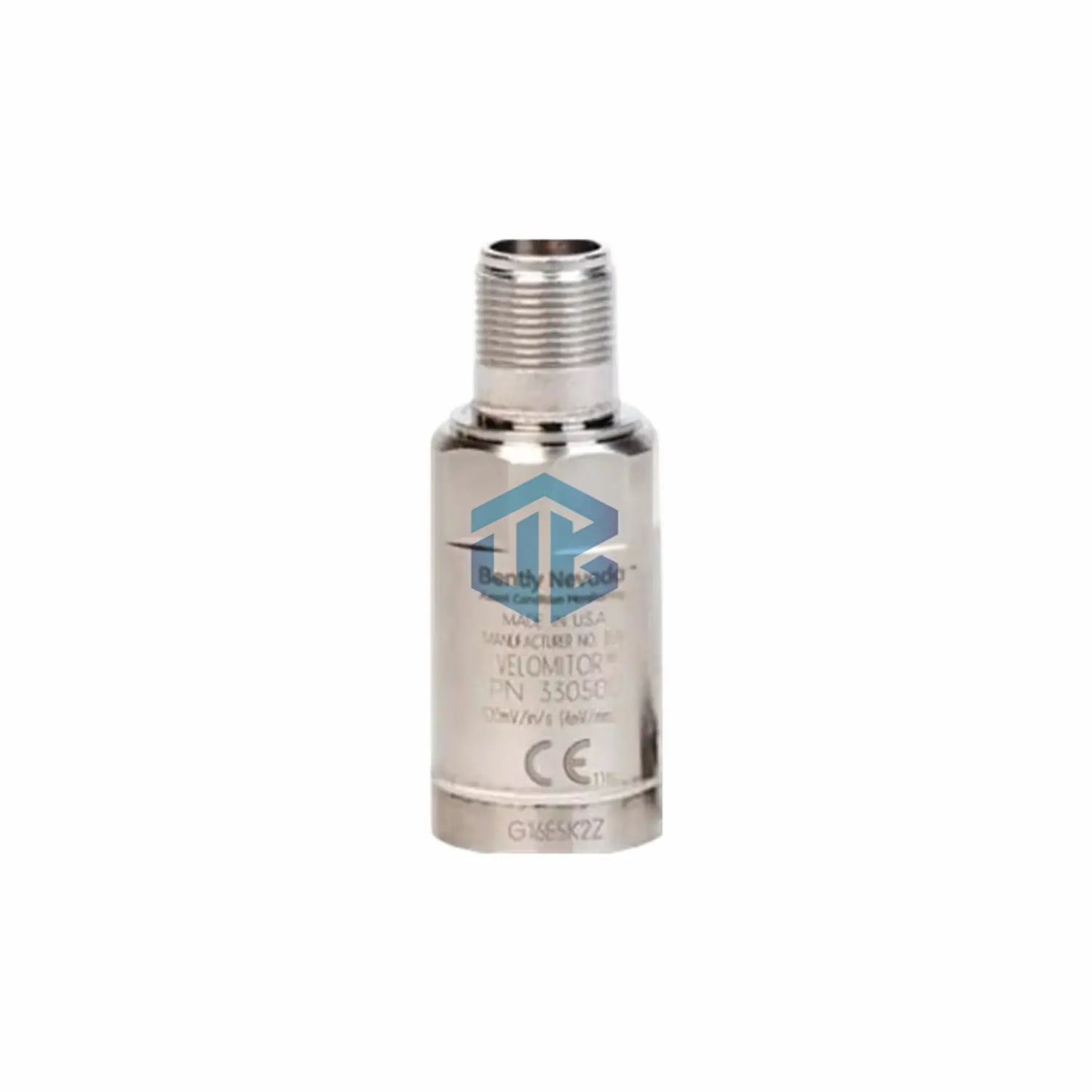

Bently Nevada 330500-06-CN: Hazardous Area Velocity Sensor
Explosion-Proof Vibration Monitoring
Industrial-grade piezo-velocity sensor for dangerous environments. Certified for Class I Div 1 hazardous areas. Withstands extreme temperatures from -67°F to 250°F. U.S.-made with 12-month warranty.
Performance Specifications
- Part Number: 330500-06-CN
- Sensitivity: 100 mV/in/s ±5%
- Frequency Range: 4.5Hz-5kHz (±3dB)
- Velocity Range: 50 in/s peak
- Noise Floor: 0.004 mm/s rms
- Resonance: >12 kHz
- Weight: 5 oz (142g)
Configuration Details
- 330500 - Velomitor base
- 06 - 5/8-18 UNF thread
- CN - Country-specific approvals
Unique Technical Parameters
- Magnetic Immunity: <51 min/s/gauss at 50 gauss
- Base Strain Sensitivity: 0.005 in/s/mstrain
- Output Impedance: <2400 Ω
- Polarity: Positive on Pin A when case moves toward connector
- Cable Type: 02173006 (up to 1000ft)
Hazardous Area Certifications
- AEx ia IIC T4
- Class I Div 1 Groups A-D
- DNV Maritime Certified
- ATEX/IECEx Compliant
Compare Similar Models
-
330500-03-04
- Different 1/4-28 UNF thread
- Standard approvals only
- Not hazardous-area certified
-
330500-02-01
- M10x1.0 metric thread
- Limited temperature range
- No marine certifications
-
330500-00-02
- 1/4-28 UNF thread
- Basic industrial approvals
- Lower shock resistance
Installation Guide
- Apply 24-40 in-lb torque to mounting thread
- Ensure hermetic seal integrity
- Verify pin polarity (A=positive)
- Use recommended cable (02173006)
Package Contents
- 330500-06-CN velocity sensor
- Installation manual
Warranty & Shipping
- 12-month defect coverage
- FedEx/UPS/DHL hazardous materials shipping
- Certified explosion-proof packaging
Expert Support
-
Q: Safe for hydrogen environments?
A: Yes, IIC T4 certified for hydrogen groups -
Q: Minimum cable length?
A: No minimum, but max 1000ft with specified cable -
Q: Submersion rated?
A: Hermetically sealed but not for continuous submersion -
Q: Calibration required?
A: Factory calibrated - field recalibration not needed -
Q: ATEX certification included?
A: Yes, Ex ia IIC T4 certification provided
