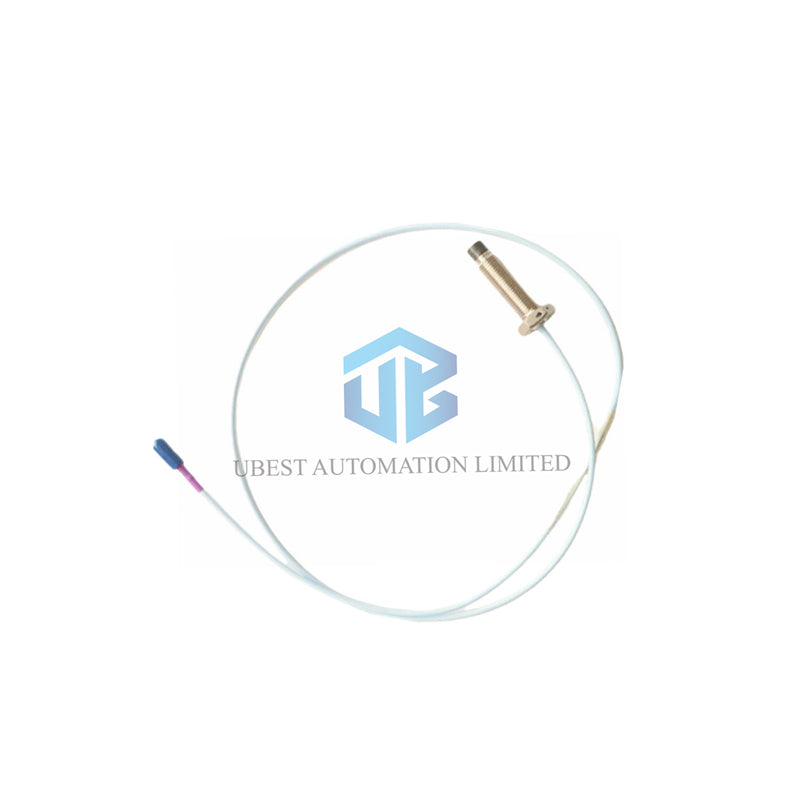

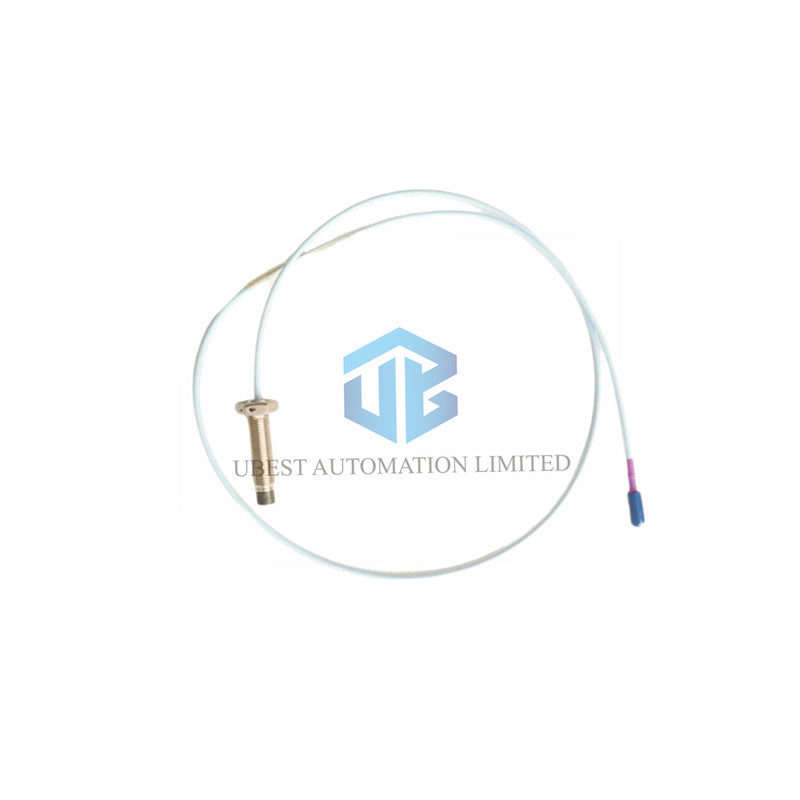

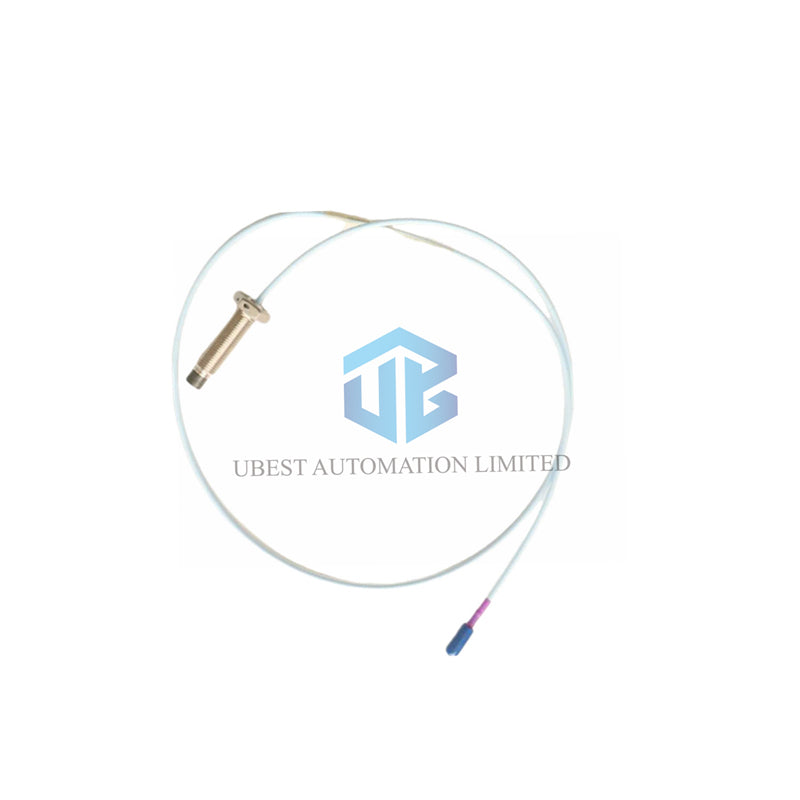

330703-000-026-10-01-05 Bently Nevada 11 mm Probe

In stock
Manufacturer:
Bently Nevada
Product No.:
330703-000-026-10-01-05
Condition:
In Stock
Product Type:
Probe
Product Origin:
USA
Weight:
323g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Compact Bently Nevada 3300 XL 11 mm Probe for Confined Spaces

Core Technical Specifications

  • Brand & Series: Bently Nevada 3300 XL Series
  • Model Number: 330703-000-026-10-01-05
  • Probe Diameter: 11 mm, metric thread M14 x 1.5
  • Unthreaded Length: 00 mm (fully threaded design)
  • Overall Case Length: 26.0 mm (compact short case)
  • Total Length: 1.0 metre (3.3 feet)
  • Connector & Cable: Miniature coaxial ClickLoc™ with protector, standard cable
  • Agency Approval: Multiple Approvals (05)
  • DC Resistance (RPROBE): 5.9 ± 0.5 ohms
  • Material – Tip / Case: Polyphenylene sulfide (PPS) / AISI 304 SST
  • Operating Temperature: -52°C to +177°C

Complete Suffix Breakdown: 330703

  • 330703 – 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor
    • 000 – Unthreaded Length: 00 mm (fully threaded)
    • 026 – Overall Case Length: 26.0 mm (compact)
    • 10 – Total Length: 1.0 metre (3.3 feet)
    • 01 – Connector: Miniature coaxial ClickLoc™ with protector, standard cable
    • 05 – Agency Approval: Multiple Approvals (ATEX, IECEx, etc.)

Physical & Environmental Characteristics

  • Compact Case Design: The 26.0 mm overall length suits shallow mounting holes and space-constrained machinery trains.
  • Temperature Range: Probe operates from -52°C to +177°C. Avoid exposing below -34°C to protect pressure seal integrity.
  • Case Torque: Max 63.3 N•m; Recommended 21.1 N•m (187 in•lb) for M14x1.5 threads.
  • Thread Engagement: Max 21 mm for M14x1.5 case thread.
  • Cable Type: 75 Ω triaxial, FEP insulated, 1.0m integral length with ClickLoc™ connector.
  • Magnetic Field Immunity: Output as low as 0.001 mV pp/Gauss at 0.5 mm gap ensures noise-free operation near generators.
  • Multiple Approvals: Certified to ATEX, IECEx, and other global standards for hazardous area use.

Frequently Asked Questions

  • Q: What makes this 26 mm case probe special?
    A: The 26.0 mm overall case length is ideal for installations with limited space, such as closely coupled machinery or shallow mounting holes.
  • Q: Is the 330703-000-026-10-01-05 compatible with standard 3300 XL systems?
    A: Yes, this 1.0m probe works with all Bently Nevada 3300 XL Proximitors and monitors. Use matching extension cables for longer runs.
  • Q: What approvals does the "05" suffix include?
    A: The "05" multiple approvals include ATEX, IECEx, CSA, and other global certifications for hazardous area installations.
  • Q: What is the recommended gap setting?
    A: Typically set for -8.0 Vdc to -10.0 Vdc output. The linear measurement range spans 0.25 mm to 2.25 mm from the target.
  • Q: How quickly can Ubest Automation ship this probe?
    A: We maintain stock of new Bently Nevada parts. Your order ships same day via FedEx, UPS, or DHL express.

View our selection of 11 mm Proximity Probes with various case lengths and approvals.
