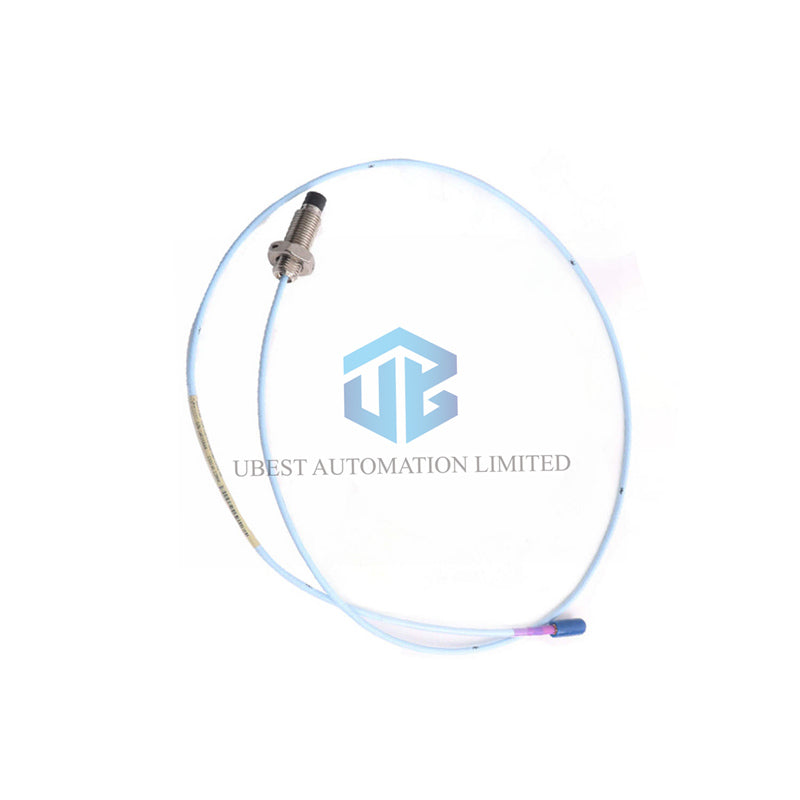

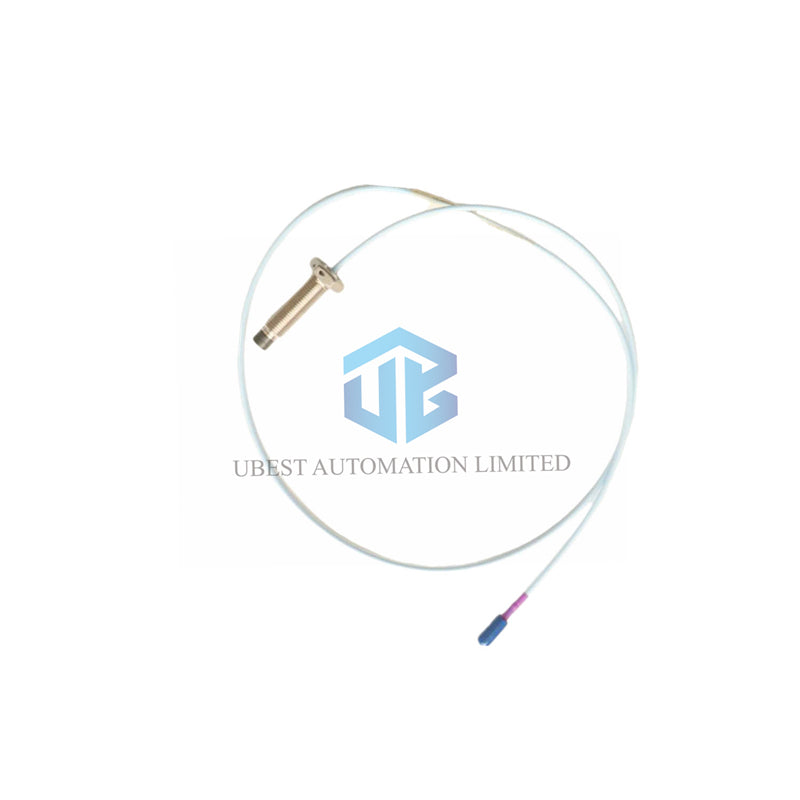

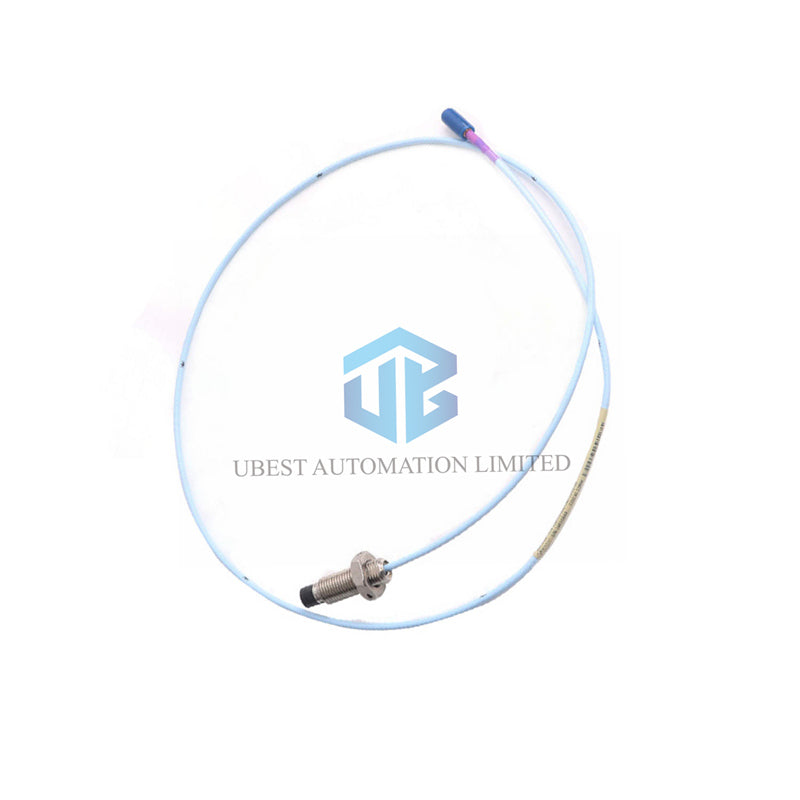

330703-000-040-10-02-CN Bently Nevada 11 mm Probe CN Certified

In stock
Manufacturer:
Bently Nevada
Product No.:
330703-000-040-10-02-CN
Condition:
In Stock
Product Type:
Probe
Product Origin:
USA
Weight:
323g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

Versatile Bently Nevada 3300 XL 11 mm Probe with CN Country Certification

Technical Specifications Overview

  • Brand & Series: Bently Nevada 3300 XL Series
  • Model Number: 330703-000-040-10-02-CN
  • Probe Diameter: 11 mm, metric thread M14 x 1.5
  • Unthreaded Length: 00 mm (fully threaded design)
  • Overall Case Length: 40.0 mm (medium profile)
  • Total Length: 1.0 metre (3.3 feet)
  • Connector & Cable: Miniature coaxial ClickLoc™, standard cable
  • Agency Approval: CN Country Specific
  • DC Resistance (RPROBE): 5.9 ± 0.5 ohms
  • Material – Tip / Case: Polyphenylene sulfide (PPS) / AISI 304 SST
  • Operating Temperature: -52°C to +177°C

Complete Suffix Information: 330703

  • 330703 – 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor
    • 000 – Unthreaded Length: 00 mm (fully threaded)
    • 040 – Overall Case Length: 40.0 mm
    • 10 – Total Length: 1.0 metre (3.3 feet)
    • 02 – Connector: Miniature coaxial ClickLoc™, standard cable
    • CN – Agency Approval: Country Specific (CN)

Performance & Physical Characteristics

  • 40 mm Case Design: This medium-profile 40.0 mm overall length suits standard industrial mounting applications with moderate clearance requirements.
  • Temperature Tolerance: Probe operates reliably from -52°C to +177°C. Do not expose below -34°C to maintain pressure seal integrity.
  • Case Torque Specifications: Maximum 63.3 N•m; Recommended 21.1 N•m (187 in•lb) for M14x1.5 threads.
  • Thread Engagement Limit: Maximum 21 mm for M14x1.5 case thread engagement.
  • Cable Specification: 75 Ω triaxial, FEP insulated, 1.0m integral length with ClickLoc™ connector.
  • Magnetic Field Immunity: Output as low as 0.001 mV pp/Gauss at 0.5 mm gap ensures clean signals in electrically noisy environments.
  • CN Approval: Meets specific country regulatory requirements for safety and performance compliance.

Frequently Asked Questions

  • Q: What applications suit the 40 mm case length?
    A: The 40.0 mm case provides a versatile medium profile suitable for most standard industrial machinery mounting configurations.
  • Q: What does the CN approval signify for this 330703 probe?
    A: CN suffix indicates country-specific certifications, ensuring the probe meets distinct regional regulatory standards for approved installations.
  • Q: Is this probe compatible with 3300 XL monitoring systems?
    A: Yes, this 1.0m probe connects directly to all Bently Nevada 3300 XL Proximitors and monitors. Use matching extension cables for longer distances.
  • Q: What is the standard gap voltage setting?
    A: Typically set for -8.0 Vdc to -10.0 Vdc output. The linear measurement range spans 0.25 mm to 2.25 mm from the target surface.
  • Q: How does Ubest Automation ensure product authenticity?
    A: We source all Bently Nevada parts from authorized distributors. Every item ships in new, original factory packaging with full traceability.
