Home » 330703-000-060-10-02-CN Bently Nevada Probe 60mm Case CN Approved
330703-000-060-10-02-CN
330703-000-060-10-02-CN-1
330703-000-060-10-02-CN-2
330703-000-060-10-02-CN
330703-000-060-10-02-CN-1
330703-000-060-10-02-CN-2
Bently Nevada

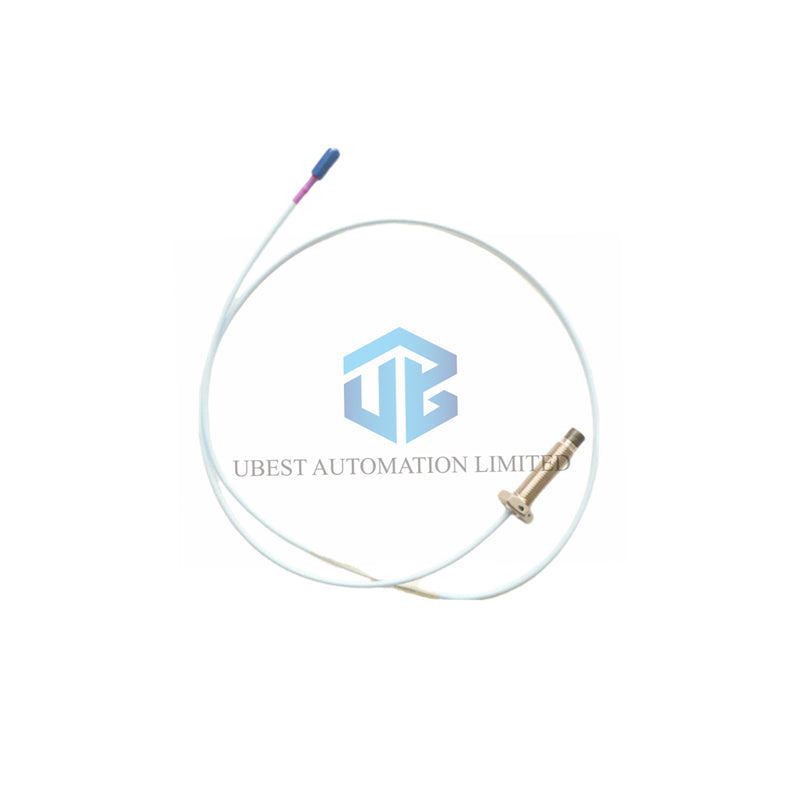

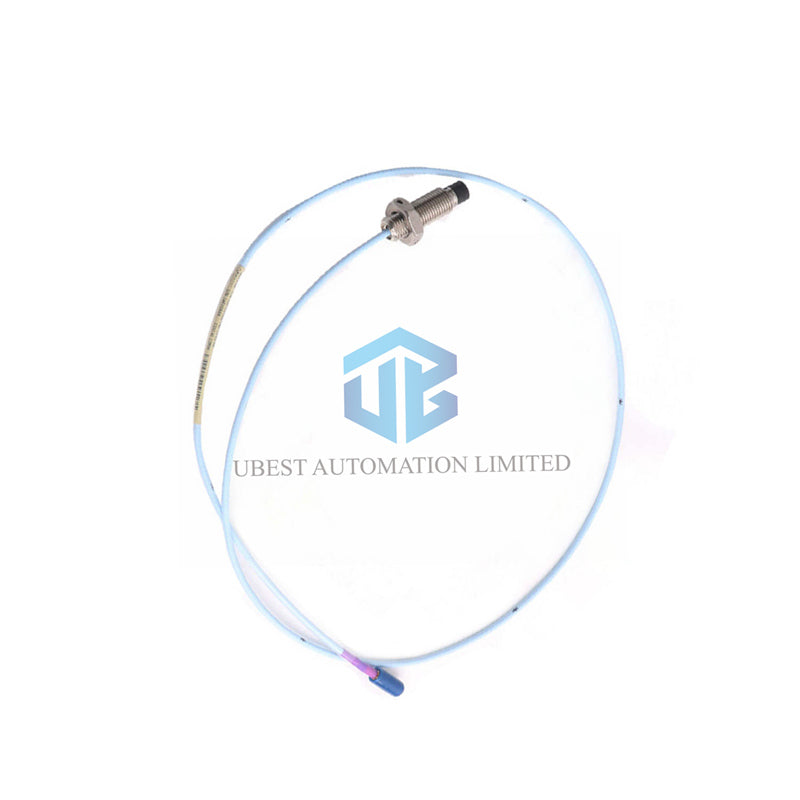

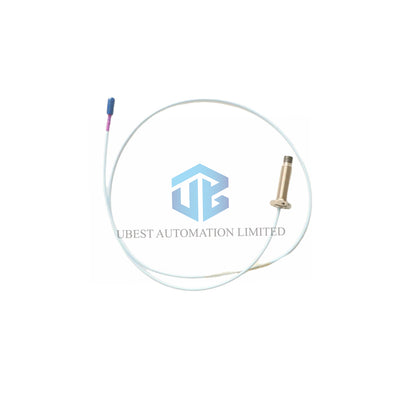

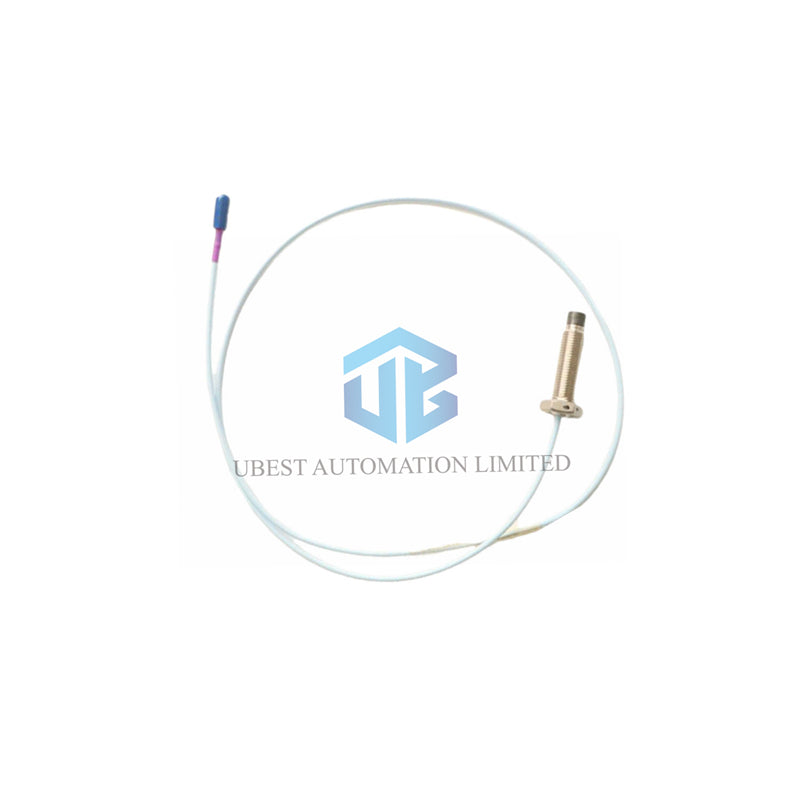

330703-000-060-10-02-CN Bently Nevada Probe 60mm Case CN Approved

In stock
Manufacturer:
Bently Nevada
Product No.:
330703-000-060-10-02-CN
Condition:
In Stock
Product Type:
Probe
Product Origin:
USA
Weight:
323g
Shipping port:
Xiamen
Warranty:
12 months

UBEST – Trusted Global Automation Parts Supplier

We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

About Us | Contact

High-Performance Bently Nevada 3300 XL 11 mm Probe with CN Certification

Key Technical Specifications

  • Brand & Series: Bently Nevada 3300 XL Series
  • Model Number: 330703-000-060-10-02-CN
  • Probe Diameter: 11 mm, metric thread M14 x 1.5
  • Unthreaded Length: 00 mm (fully threaded design)
  • Overall Case Length: 60.0 mm
  • Total Length: 1.0 metre (3.3 feet)
  • Connector & Cable: Miniature coaxial ClickLoc™, standard cable
  • Agency Approval: CN Country Specific
  • DC Resistance (RPROBE): 5.9 ± 0.5 ohms
  • Material – Tip / Case: Polyphenylene sulfide (PPS) / AISI 304 SST
  • Operating Temperature: -52°C to +177°C

Complete Suffix Configuration: 330703

  • 330703 – 3300 XL 11 mm Probe, M14 x 1.5 thread, without armor
    • 000 – Unthreaded Length: 00 mm (fully threaded)
    • 060 – Overall Case Length: 60.0 mm
    • 10 – Total Length: 1.0 metre (3.3 feet)
    • 02 – Connector: Miniature coaxial ClickLoc™, standard cable
    • CN – Agency Approval: Country Specific (CN)

Environmental & Mechanical Data

  • Temperature Tolerance: Withstands -52°C to +177°C. Exposing below -34°C may affect the pressure seal.
  • Case Torque (Rated): Max 63.3 N•m; Recommended 21.1 N•m (187 in•lb) for M14x1.5 threads.
  • Thread Engagement: Max 21 mm for M14x1.5 case thread.
  • Cable Specification: 75 Ω triaxial, FEP insulated, 1.0m integral length.
  • 60 Hz Magnetic Field Immunity: Output as low as 0.001 mV pp/Gauss, ensuring clean signals near generators.
  • CN Approval: Meets specific country regulatory requirements for safety and performance.

Frequently Asked Questions (FAQ)

  • Q: What does the "CN" approval mean for this 330703 probe?
    A: The CN suffix indicates country-specific certifications, ensuring the probe meets distinct regional safety and regulatory standards for use in approved areas.
  • Q: Is this 60 mm case length compatible with standard installations?
    A: Yes, the 60.0 mm overall case length provides flexibility for deeper mounting configurations. Always verify your probe clearance before installation.
  • Q: Does the 330703-000-060-10-02-CN work with 3300 XL Proximitors?
    A: Absolutely. This 1.0m probe connects directly to any Bently Nevada 3300 XL Proximitor. Use matching extension cables for longer runs.
  • Q: What is the standard gap setting for this 11 mm probe?
    A: Typically -8.0 Vdc to -10.0 Vdc on the Proximitor output. The linear measurement range is 0.25 mm to 2.25 mm from the target surface.
  • Q: How does Ubest Automation ship this item?
    A: We ship all orders via FedEx, UPS, or DHL express. Your probe leaves our stock in new, original factory packaging.
