330705-02-18-90-00-00 Bently Nevada 3300 XL | Probe
Manufacturer:
Bently Nevada
Product No.:
330705-02-18-90-00-00
Condition:
In Stock
Product Type:
Proximity Probe
Product Origin:
USA
Weight:
70g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

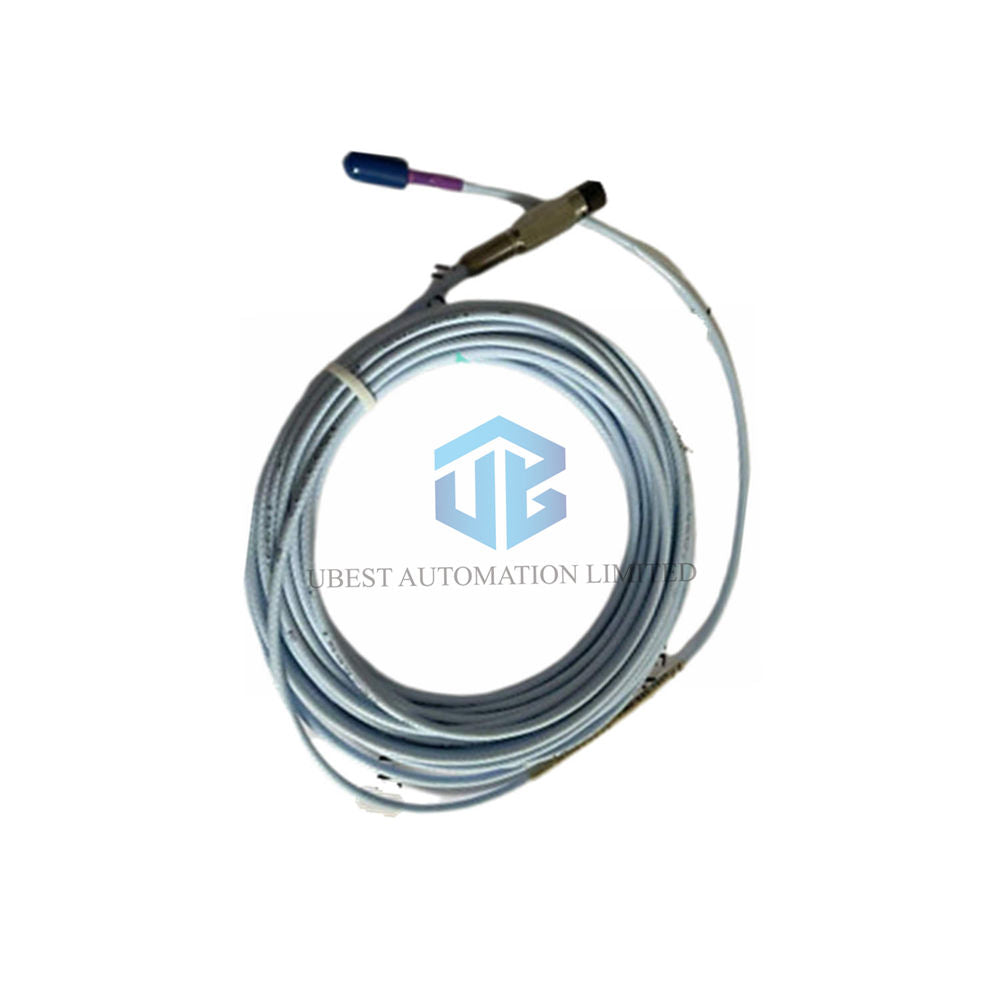

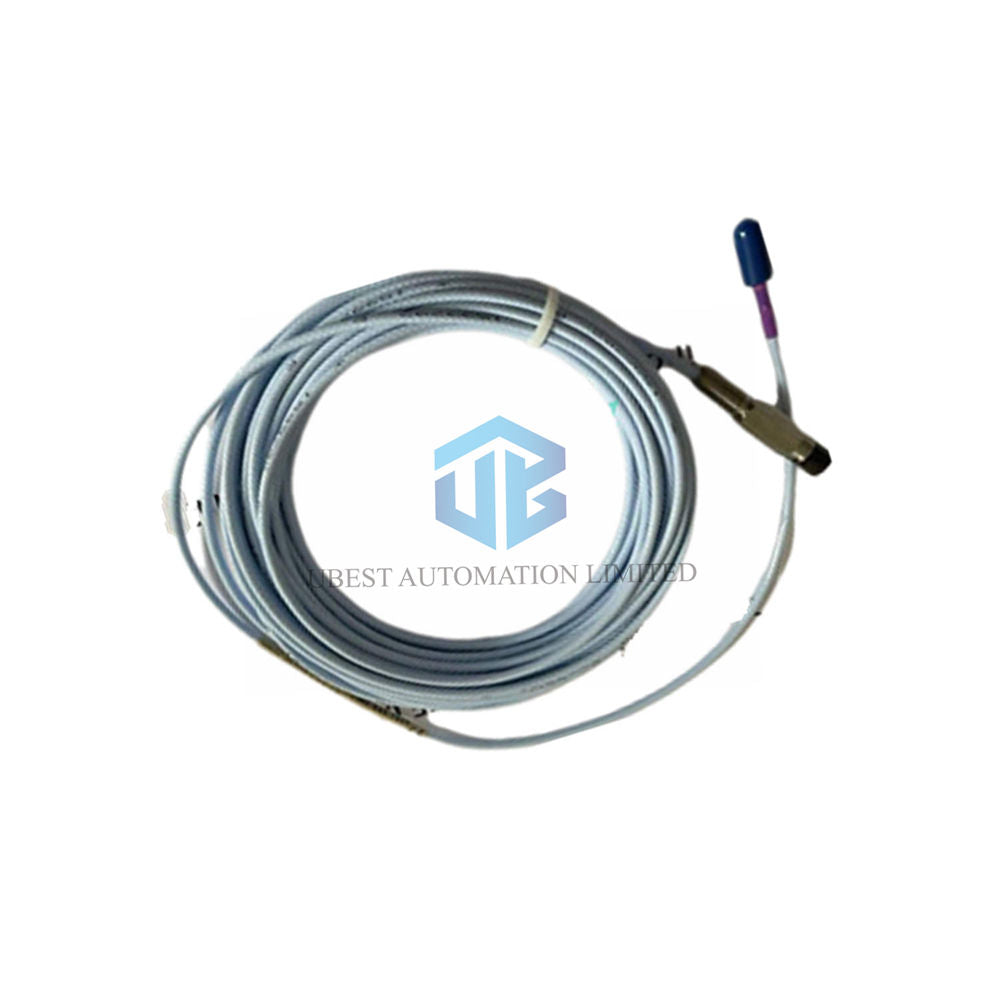

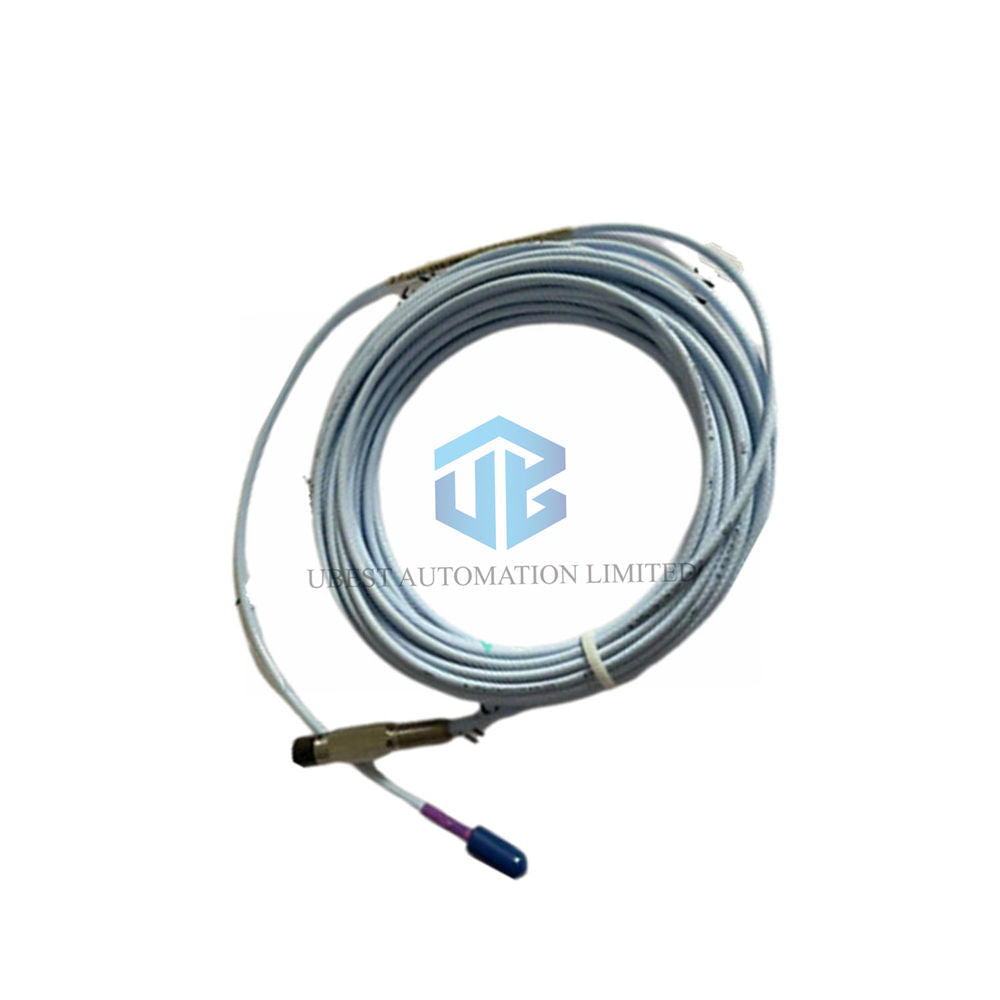

Bently Nevada 330705-02-18-90-00-00 – 3300 XL 11 mm Reverse Mount Probe
Complete suffix information – 330705-02-18- CC-DD-EE
- 330705-02-18-90-00-00 – full part number breakdown
- CC = 18 : 3/8-24 UNF threads (standard mounting thread)
- DD = 90 : 9.0 meters (29.5 feet) total cable – designed for remote installations
- EE = 00 : Miniature ClickLoc™ coaxial connector
- 00 (Agency) : no agency approval required (standard option)
Technical specifications – Bently Nevada 3300 XL series
- Brand : Bently Nevada · Model : 330705-02-18-90-00-00
- Type : 11 mm Reverse Mount Probe (eddy current)
- Measurement range : 2 mm (80 mils) typical, with 7.87 V/mm nominal sensitivity
- Frequency response : 0 to 10 kHz (standard proximity system)
- Resolution : infinite (limited by Proximitor® and readout)
- Linearity : within ±0.025 mm over central 2 mm range
- dc resistance (RPROBE) : 8.5 ± 1.1 Ω (9.0 m length)
- Temperature range : -52°C to +177°C (-62°F to +351°F)
- Pressure seal : Viton® O‑ring, differential design (not factory tested)
- Probe tip material : Polyphenylene sulfide (PPS) – high chemical resistance
- Case material : AISI 304 stainless steel
- Cable : 75 Ω triaxial, FEP insulated, 9 m overall
- Minimum bend radius : 25.4 mm (1.0 in) – even with armor
- Weight : 0.07 kg (probe only)
FAQ – Bently Nevada 330705-02-18-90-00-00
- Can I use this 9 m probe with a 5 m Proximitor? No – 330705-02-18-90-00-00 requires the 9‑meter Proximitor® sensor only. Mismatching lengths degrades performance.
- Does the probe withstand high pressure? The Viton® seal resists differential pressure, but we do not pressure‑test before shipping. Contact Ubest Automation for custom pressure‑test requests.
- Is this probe reverse‑mount specific? Yes – the 11 mm Reverse Mount Probe design fits confined spaces where standard front‑mount probes cannot.
- What is the ClickLoc™ connector advantage? Miniature ClickLoc™ provides secure coaxial connection without special tools – ideal for limited access areas.
- Why is dc resistance higher for 9 m? Longer cable length increases resistance: 8.5 ± 1.1 Ω for this 9.0 m version.
