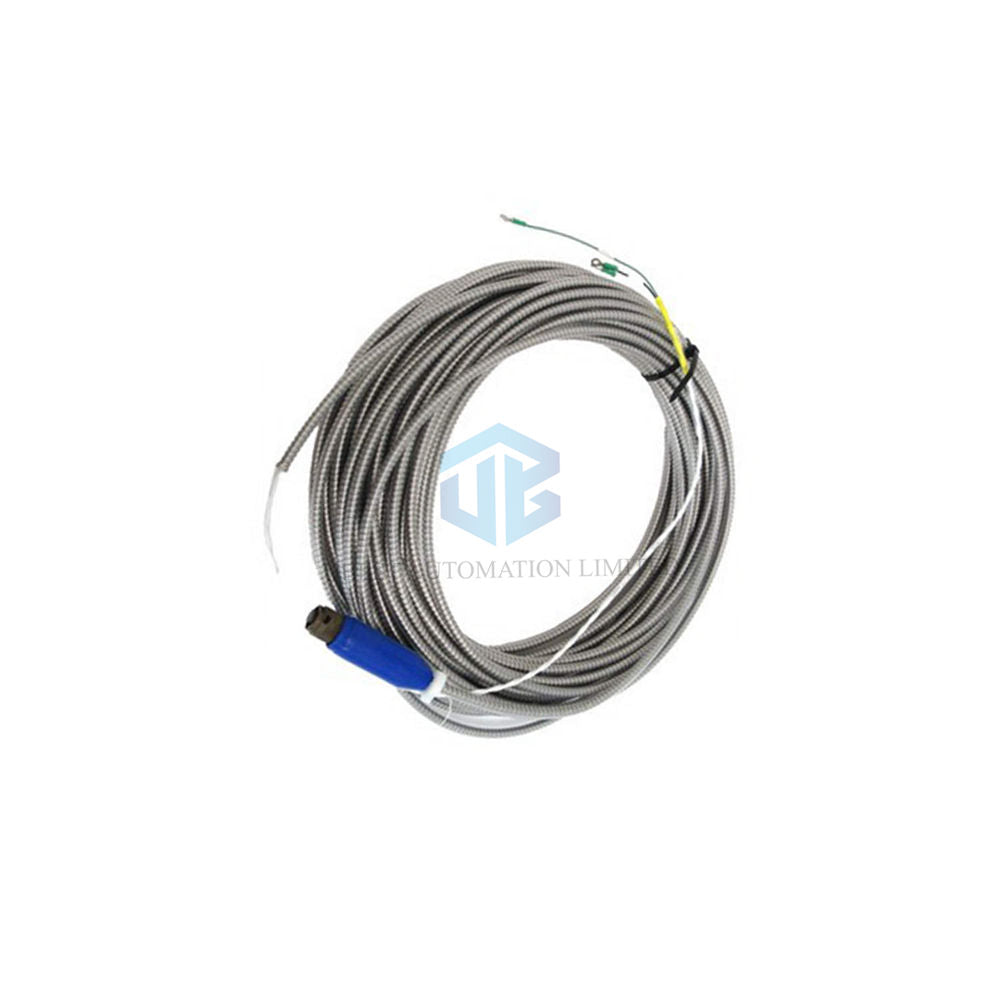

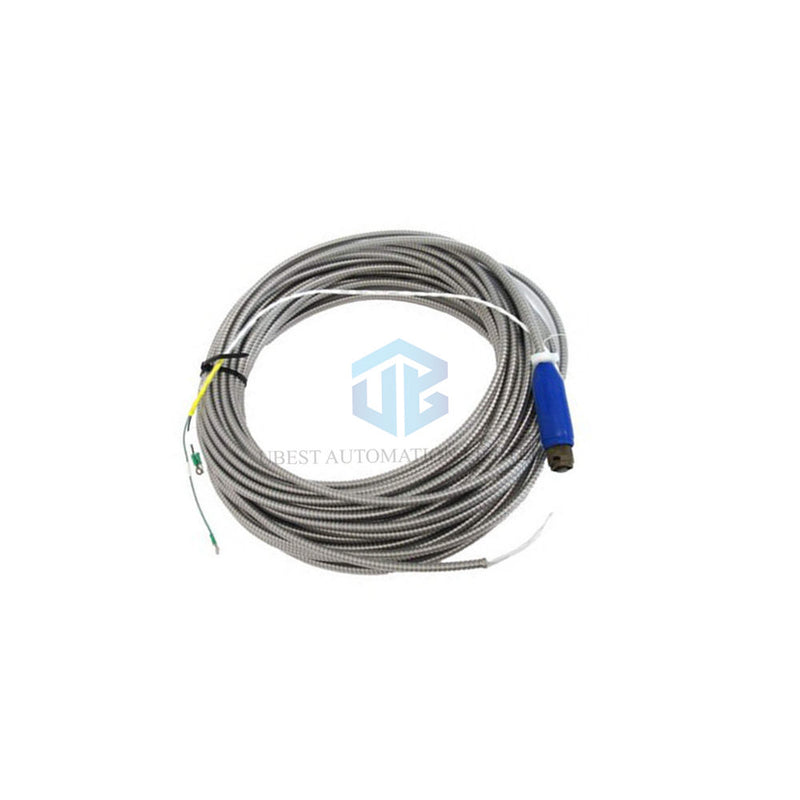

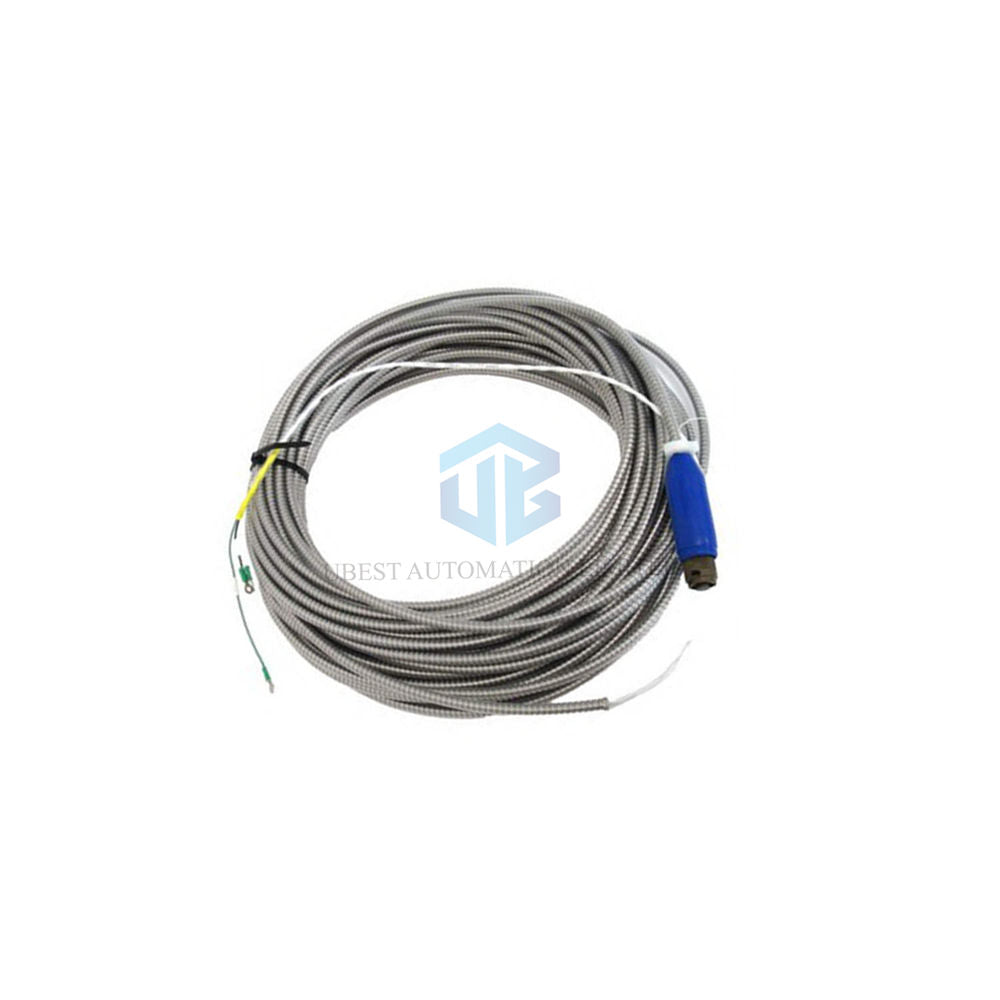

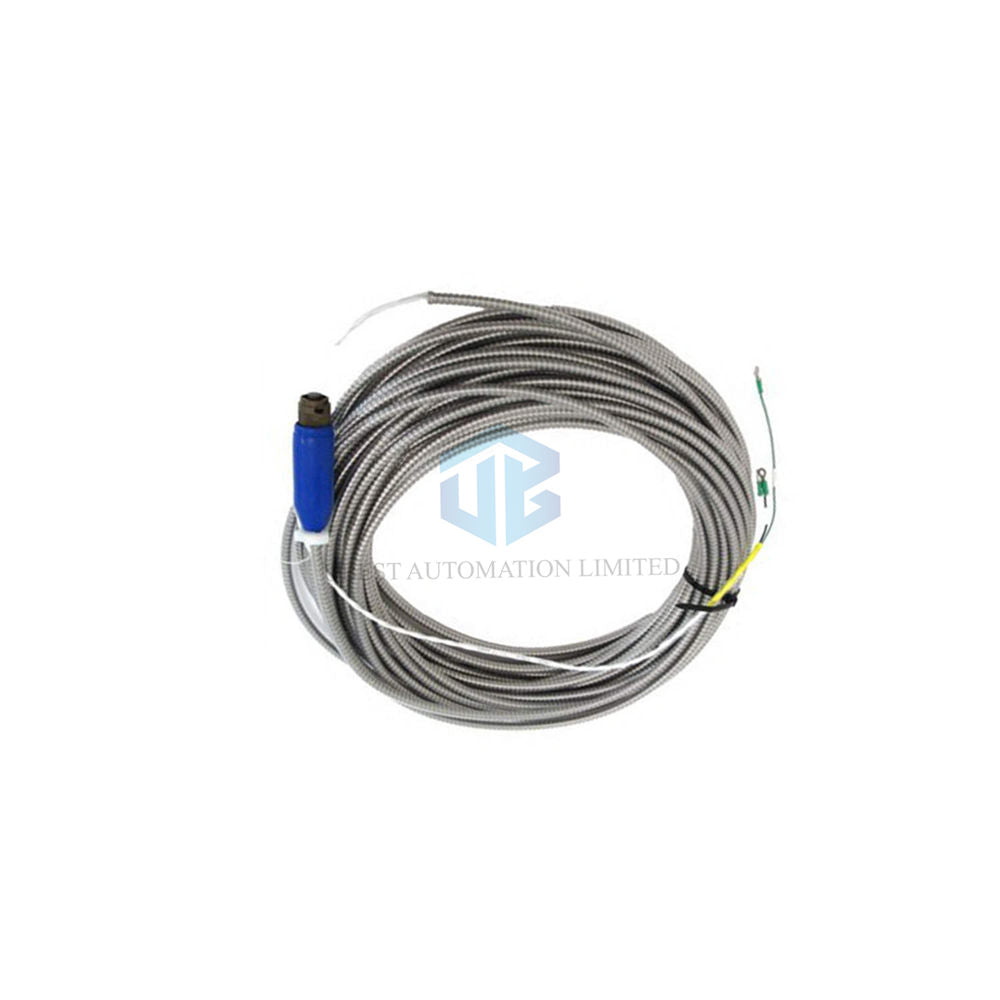

Bently Nevada 330706-005-046-50-00-00 : 3300 XL 11 mm Reverse Mount Probe

Key Technical Specifications

• Brand: Bently Nevada (Made in U.S.A)
• Model Number: 330706-005-046-50-00-00
• Product Type: 3300 XL 11 mm Reverse Mount Proximity Probe
• Total Length: 5.0 meters (16.4 feet) – designed for use with the 5m Proximitor Sensor only.
• Thread Type: M10 x 1
• Connector: Miniature ClickLoc™ coaxial connector (Option 00)
• Agency Approval: Not required (Option 00)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Cable Specification: 75 Ω triaxial, FEP insulation
• Operating & Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Weight: 0.07 kg
• DC Resistance (RPROBE): For 5.0m length, 7.2 ± 0.8 ohms (center conductor to outer conductor)
• Minimum Bend Radius: 25.4 mm (1.0 inch)
• Connector Torque: Finger tight (recommended), max 0.565 N•m (5 in•lb)
• Probe Case Torque (Reverse Mount): Recommended 7.5 N•m (66 in•lb), Maximum Rated 22.6 N•m (200 in•lb)

Complete Suffix Information (Tree Structure)

330706-005-046-50-00-00
├─ 330706 : Base model (11 mm reverse mount probe)
├─ 005 : M10 x 1 threads
├─ 046 : Standard reverse mount configuration
├─ 50 : Total length 5.0 meters (for 5m Proximitor Sensor)
├─ 00 : Miniature ClickLoc™ coaxial connector
└─ 00 : Agency approval not required

Frequently Asked Questions (FAQ)

• Can I use this 5m probe with any extension cable? No, we specifically design the 330706-005-046-50-00-00 for the 5m Proximitor Sensor only.
• Does the probe resist high vibration environments? Yes, the 3300 XL series handles heavy industrial vibration reliably.
• Is the pressure seal tested before shipping? Bently Nevada does not pressure test each probe. Please contact our custom design department if you need a pressure seal test.
• What is the DC resistance value for this 5.0m probe? It is 7.2 ± 0.8 ohms from center to outer conductor.
• Can I get agency approval options? This version comes with Option 00 (Not required).
