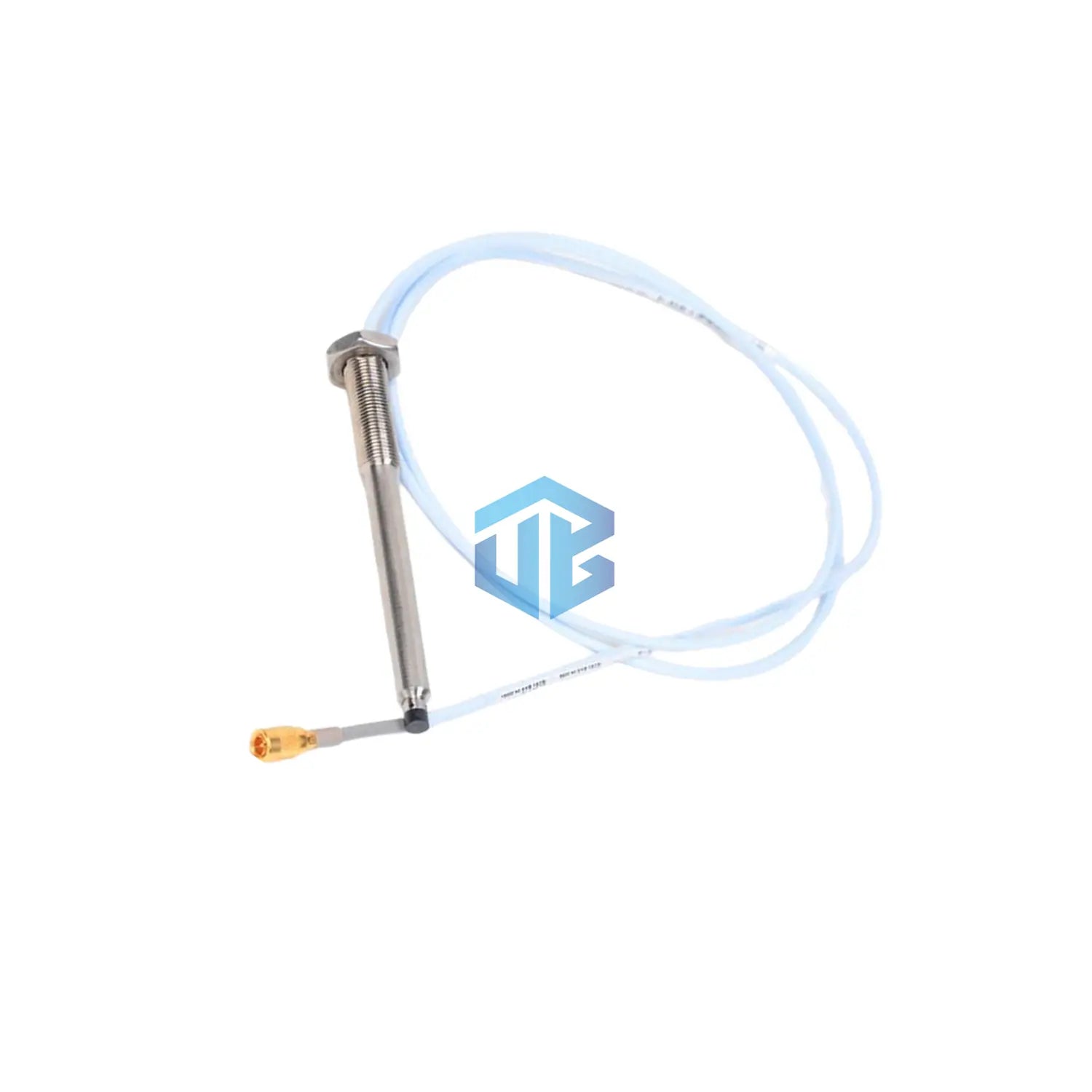

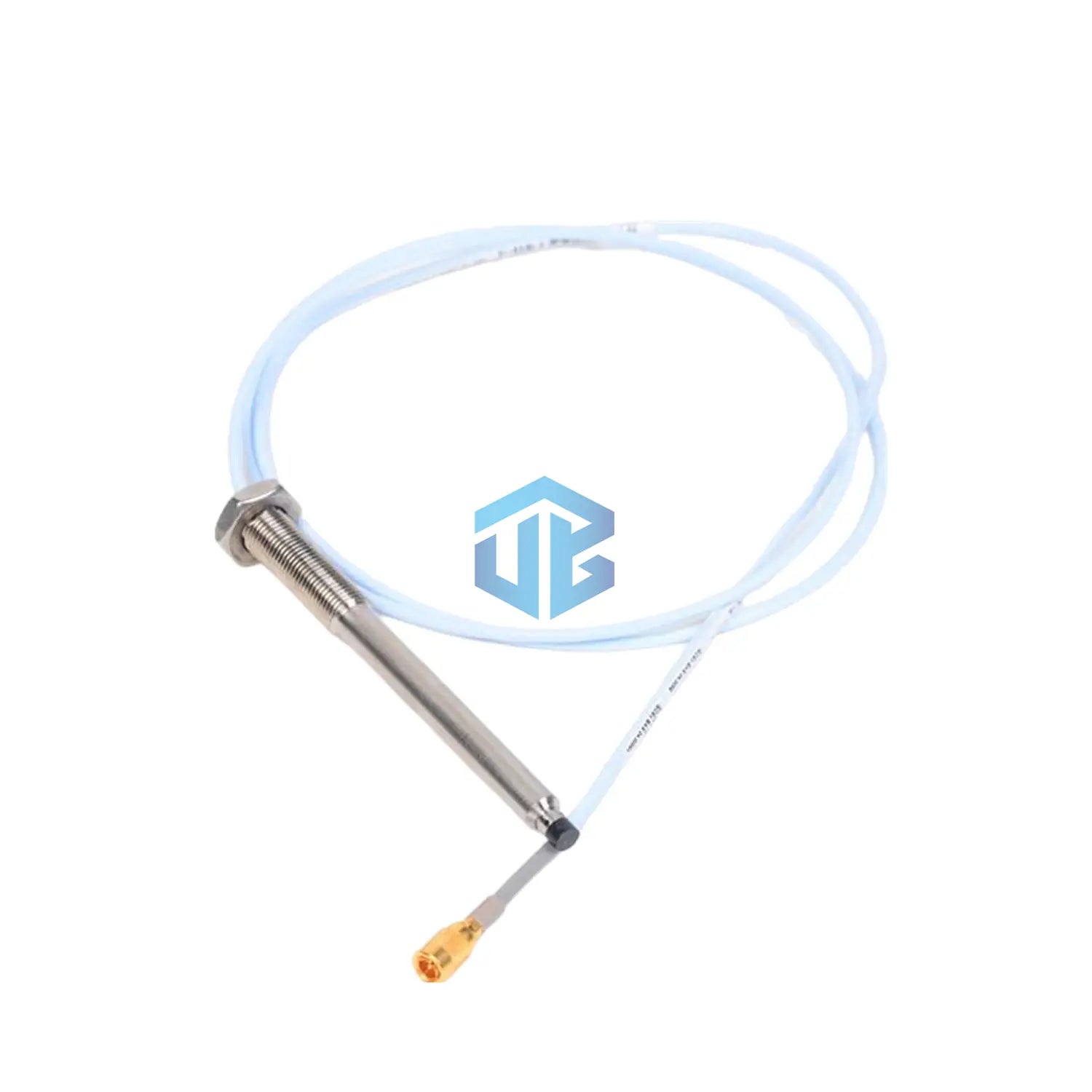

Bently Nevada 330905-05-13-05-02-00: Advanced Vibration Sensing Probe
Next-Gen Machinery Protection
New Bently Nevada NSv proximity probe with M10x1 threading and chemical-resistant design. Perfect for harsh environments like compressors and turbines. Factory sealed with 12-month warranty.
Suffix Configuration Details
Base Model: NSv Probe
Unthreaded: 50mm
Case Length: 130mm
Cable: 0.5 meter
Connector: ClickLoc coaxial
Approval: Standard
Technical Specifications
- Brand: Bently Nevada
- Model: 330905-05-13-05-02-00
- Range: 1.5mm (60 mils)
- Accuracy: ±0.06mm deviation
- Output: 7.87 V/mm linear
- Temp Range: -52°C to +177°C
- Thread Type: M10x1
- Tip Material: Chemical-resistant PPS
- DC Resistance: 4.0Ω ±0.5Ω
- Min Target Size: 8.9mm diameter
Installation Guide
Set gap at 1.0mm (40 mils). Apply 7.5 N•m torque for M10x1 threads. Maintain 25.4mm bend radius. Use shielded triad cable (max 305m).
Package Includes
- 1x NSv vibration probe
- Protective end caps
- Installation guidelines
Warranty & Shipping
12-month manufacturer warranty. Express shipping via FedEx, UPS, DHL. Delivery in 2-5 business days worldwide.
Industrial Applications
- Offshore compressor monitoring
- Chemical processing pumps
- Gas turbine vibration analysis
- Paper manufacturing rollers
FAQ
Q: Cable bend radius limit?
A: Minimum 25.4mm (1 inch) in all conditions.
Q: Pressure sealing capability?
A: Viton O-ring seals differential pressure (contact for custom testing).
Q: Thread engagement depth?
A: Maximum 15mm for M10x1 threading.
Alternative Models Comparison
| Model | Unthreaded | Case | Cable | Key Feature |
|---|---|---|---|---|
| 330905-05-13-05-02-00 | 50mm | 130mm | 0.5m | - |
| 330905-00-25-05-12-00 | 0mm | 250mm | 0.5m | Longer case |
| 330905-06-14-10-02-00 | 60mm | 140mm | 1.0m | Extended cable |
| 330905-07-17-05-02-05 | 70mm | 170mm | 0.5m | Agency approved |
