Product Information: Bently Nevada 3500/15-04-04-02 Power Supply

Manufacturer: Bently Nevada

Part Number: 3500/15-04-04-02

Product Type: 3500/15 Power Supply

Country of Origin: Made in U.S.A

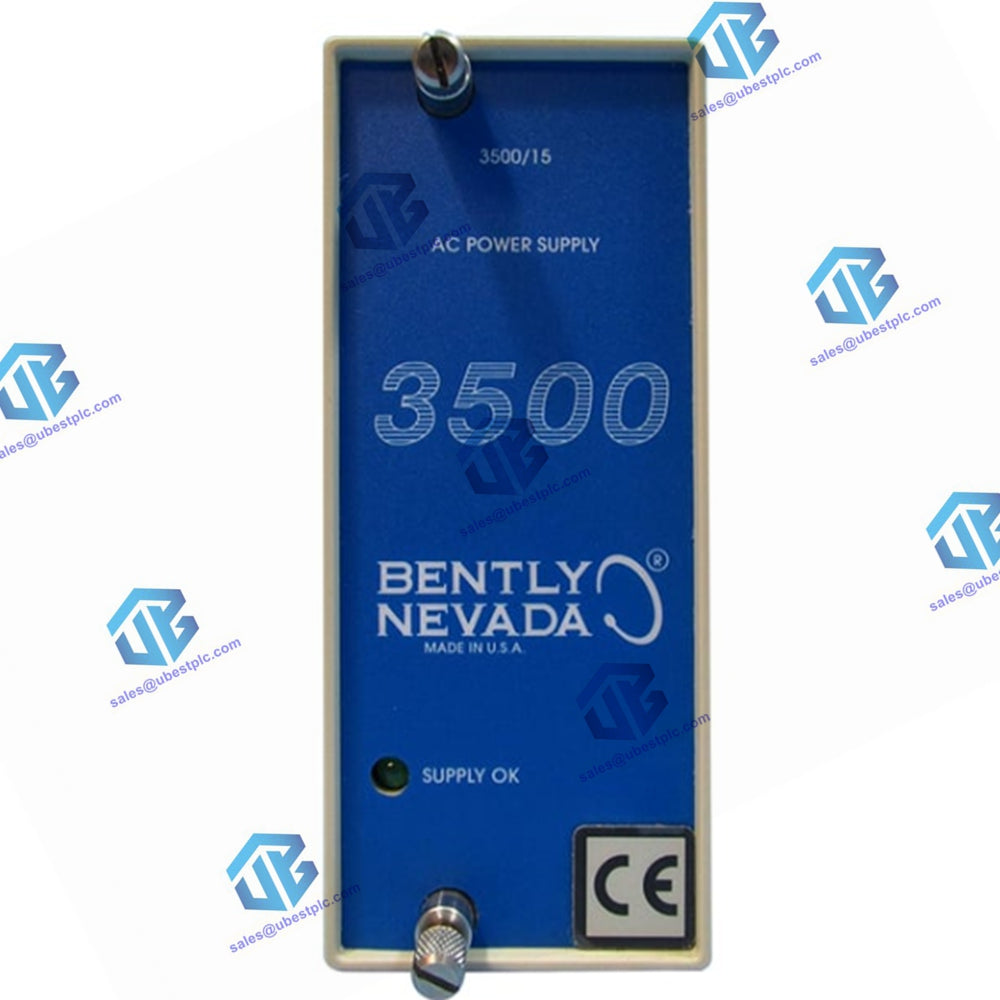

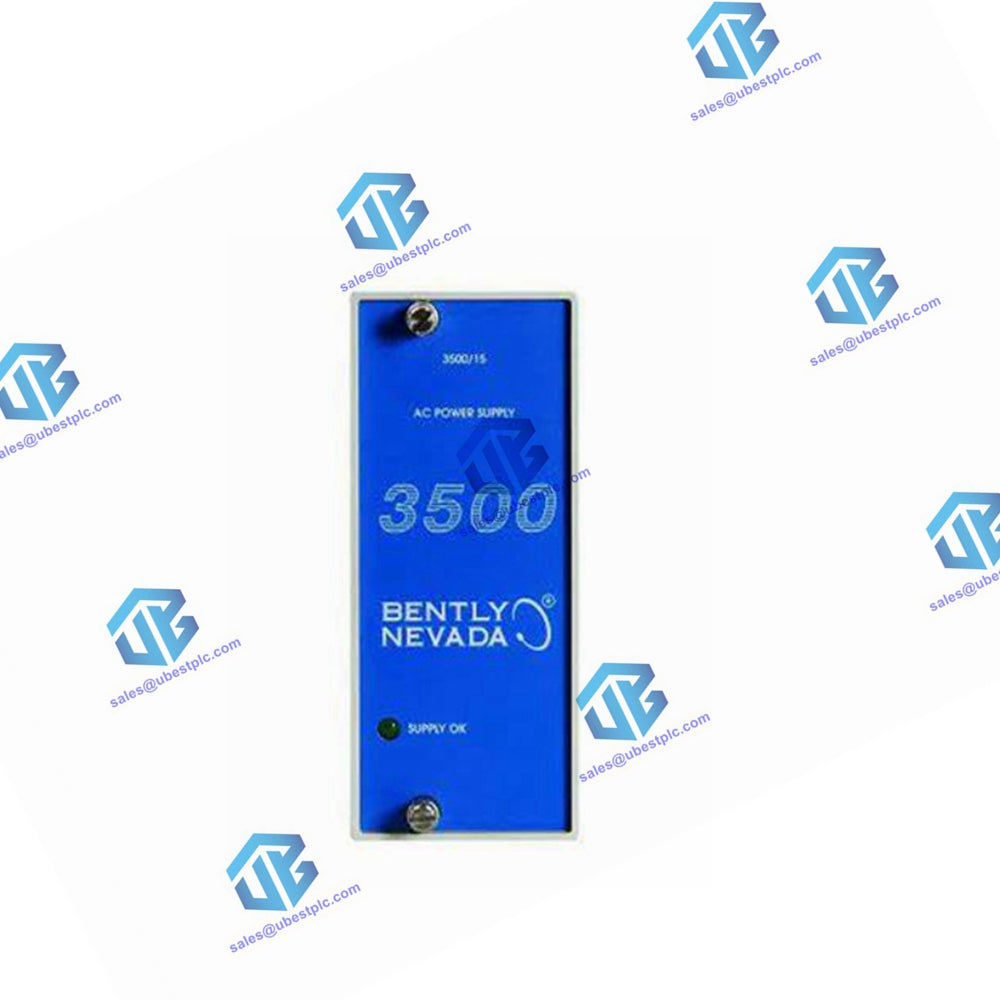

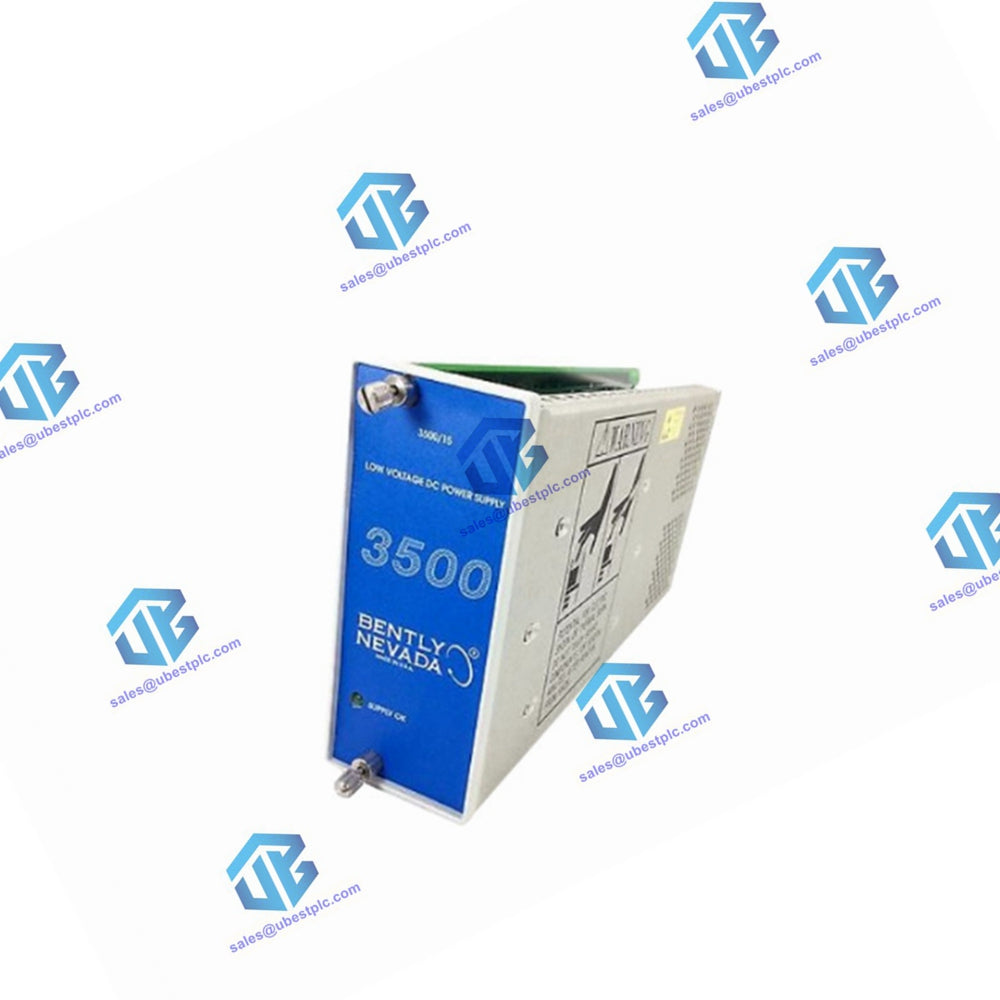

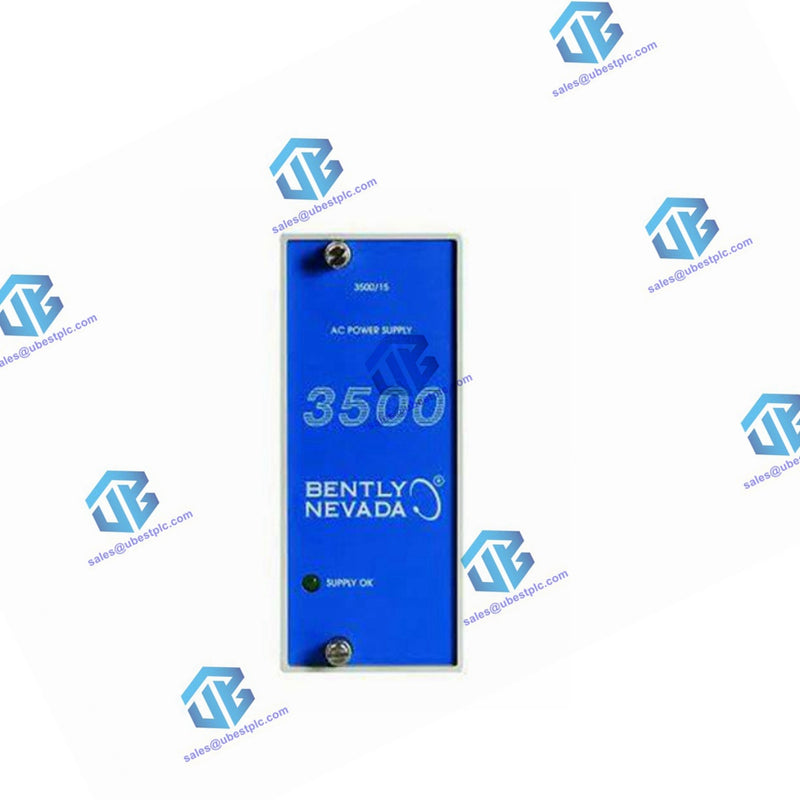

Description: The Bently Nevada 3500/15 Power Supply is a half-height module integral to the 3500 Series Machinery Protection System. It is designed for installation in specially designated slots on the left side of the rack. The power supply accepts a variety of input voltages, converting them to suitable levels for use by other 3500 modules. Available in three versions—Universal AC Power, High Voltage DC Power, and Low Voltage DC Power—this power supply ensures reliable operation across different configurations.

Features:

• Half-height design for optimized rack space utilization
• Supports a wide range of input voltages
• Converts input voltages to appropriate levels for 3500 modules
• Multiple power supply versions to match different system requirements
• ATEX/CSA agency approval for use in hazardous environments (Class 1, Zone 2)

Specifications:

Power Supply Type:

• Low Voltage DC:
  • Top Slot: -04 (20 to 30 Vdc)
  • Bottom Slot: -04 (20 to 30 Vdc)
  • Agency Approval Option:
    • -02: ATEX/CSA (Class 1, Zone 2)

Input Voltage Options:

• High Voltage AC:
  • Nominal: 220 Vac
  • Range: 175 to 264 Vac rms, 247 to 373 Vac peak
  • Frequency: 47 to 63 Hz
• Low Voltage AC:
  • Nominal: 110 Vac
  • Range: 85 to 132 Vac rms, 120 to 188 Vac peak
  • Frequency: 47 to 63 Hz
• High Voltage DC:
  • Range: 88 to 140 Vdc
• Low Voltage DC:
  • Range: 20 to 30 Vdc

Power Supply Module Dimensions and Weight:

• Dimensions (Height x Width x Depth):
  • 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in)
• Weight:
  • 1.39 kg (3.06 lb.)

Power Input Modules Dimensions and Weight:

• Dimensions (Height x Width x Depth):
  • 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in)
• Weight:
  • 0.34 kg (0.75 lb.)

Environmental Limits:

• Operating Temperature:
  • -30°C to +65°C (-22°F to +150°F)
• Storage Temperature:
  • -40°C to +85°C (-40°F to +185°F)
• Humidity:
  • Up to 95%, non-condensing

The Bently Nevada 3500/15-04-04-02 Power Supply is designed to ensure reliable and efficient power conversion for the 3500 Series Machinery Protection System, meeting the demanding requirements of industrial environments. Its robust design and wide range of input options make it a versatile and essential component for maintaining system integrity.
