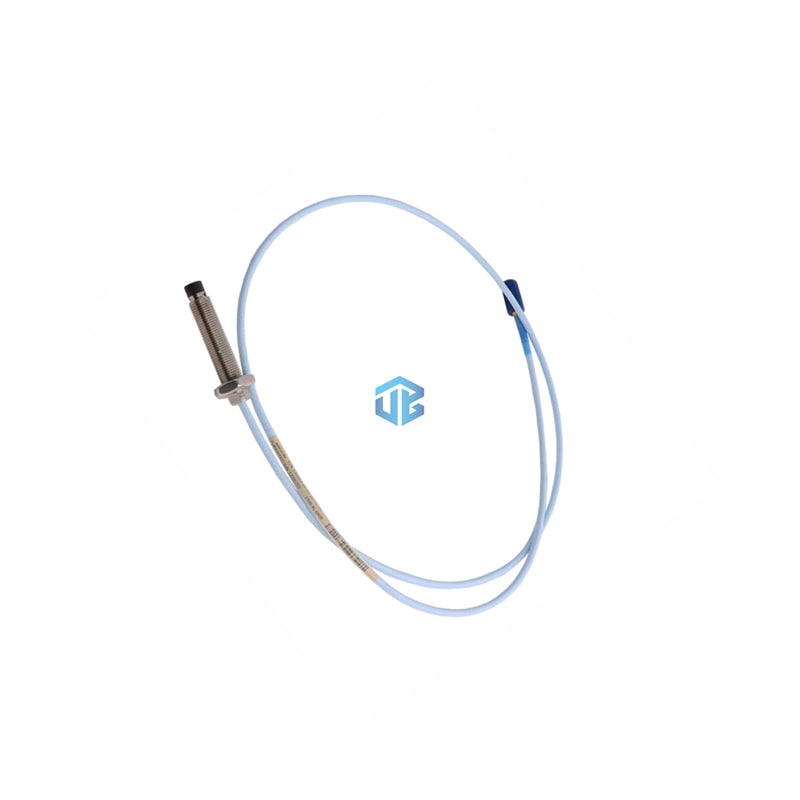

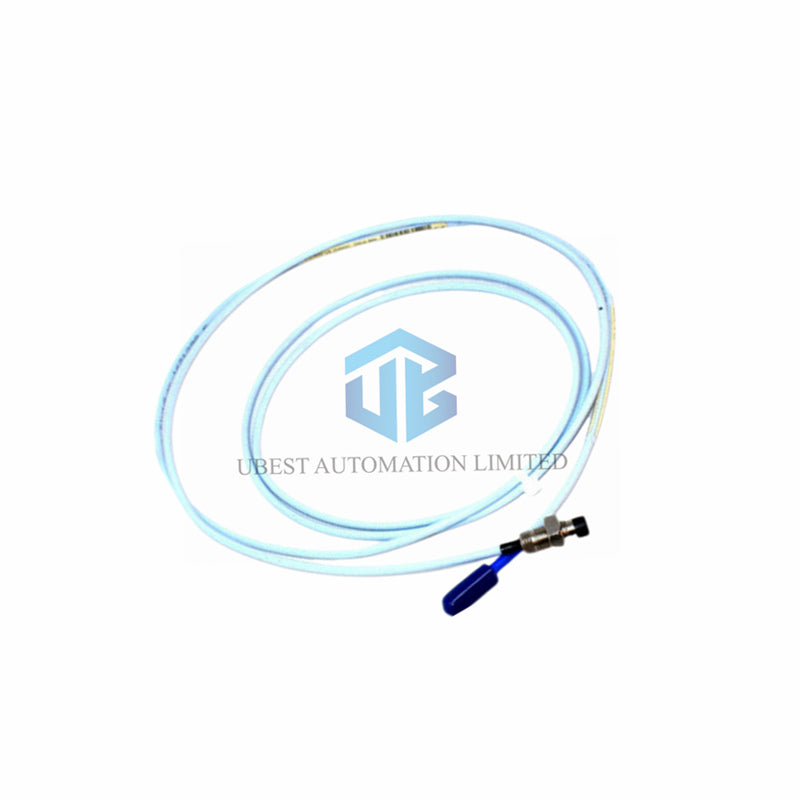

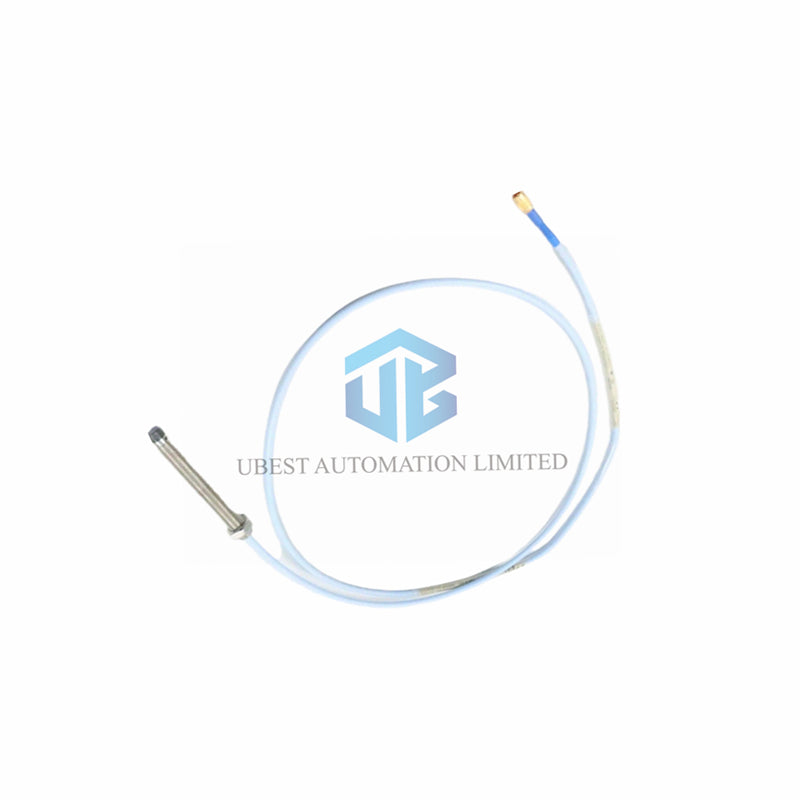

Bently Nevada 3300 XL 8 mm Proximity Probe 330103-00-06-50-01-00: 5-Meter Sensor Solution

Detailed Technical Specifications

• Brand & Model: Bently Nevada 3300 XL 8 mm Proximity Probe.
• Complete Part Suffix Details:
  • 330103: 3300 XL 8mm Probe, M10x1 thread, without armor.
  • 00: Unthreaded Length = 0 mm.
  • 06: Overall Case Length = 60 mm.
  • 50: Total Cable Length = 5.0 meters (16.4 feet).
  • 01: Miniature coaxial ClickLoc connector with protector.
  • 00: Agency Approvals = Not Required.
• Compatibility Note: This 5-meter probe works only with a 5-meter Proximitor sensor.
• Linear Measurement Range: 2 mm (80 mils), linear from 0.25 mm to 2.3 mm from target.
• Recommended Gap Setting: 1.27 mm (50 mils) for radial vibration, corresponding to -9 Vdc.
• Nominal DC Resistance (RPROBE): 8.73 Ω ± 0.50 for the 5.0m cable version.
• Temperature Range: Standard operation from -52°C to +177°C (-62°F to +350°F).

Mechanical Construction & Durability

• Probe Tip Material: Robust Polyphenylene Sulfide (PPS).
• Probe Case Material: AISI 303 or 304 Stainless Steel.
• Sealing System: Features a Viton® O-ring to seal differential pressure between the tip and case.
• Mounting Thread: M10 x 1, with maximum thread engagement of 15 mm.
• Humidity Resistance: Shows less than 3% change in performance at 93% humidity per IEC 68-2-3.

Frequently Asked Questions (FAQ)

• Q: What is the key difference for part number 330103-00-06-50-01-00?
  A: This model has a 5.0-meter integrated cable and must be paired with a 5-meter Proximitor sensor.
• Q: Does this 3300 XL 8 mm Probes have ATEX certification?
  A: This specific suffix (00) does not include agency approvals. Please contact us for certified variants.
• Q: What is the standard gap voltage for setting up this probe?
  A: For accurate radial vibration measurement, set the gap to achieve a -9 Vdc output.
