6FX8002-2CF02-1DA0 Siemens Motor Cable - 30m Motion Connect
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

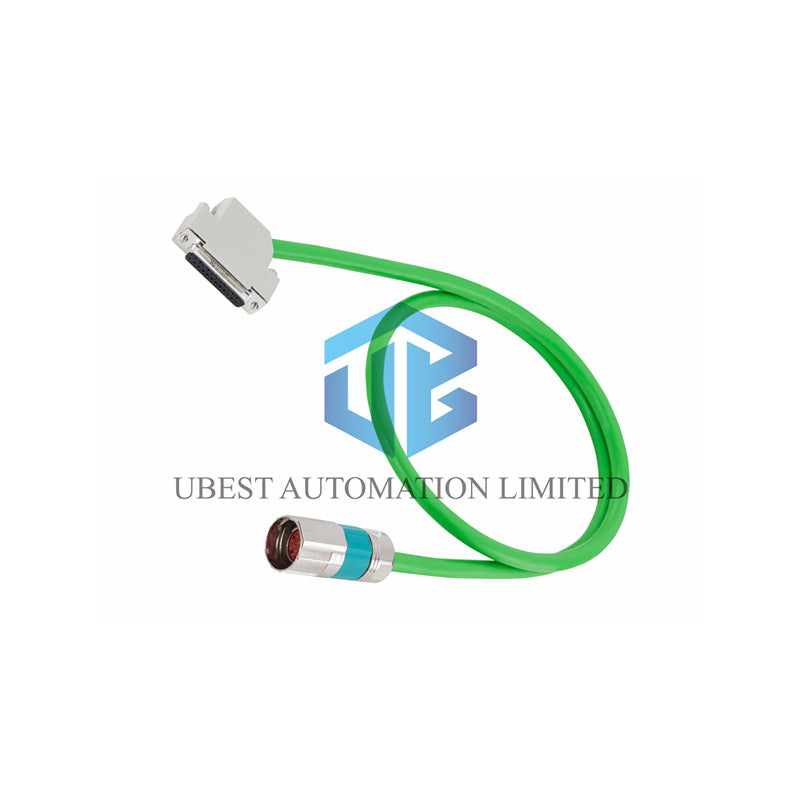

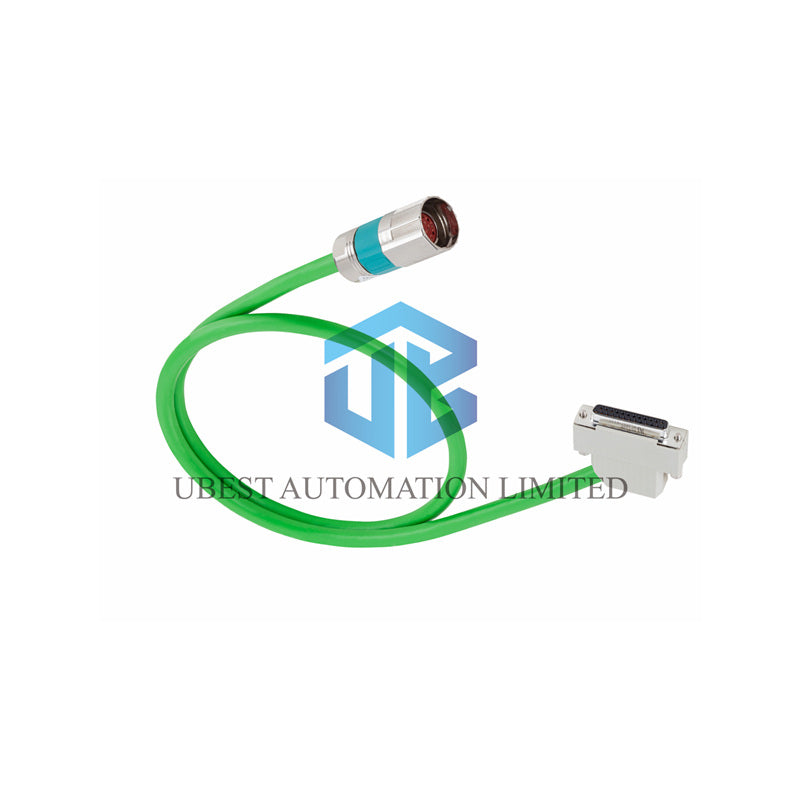

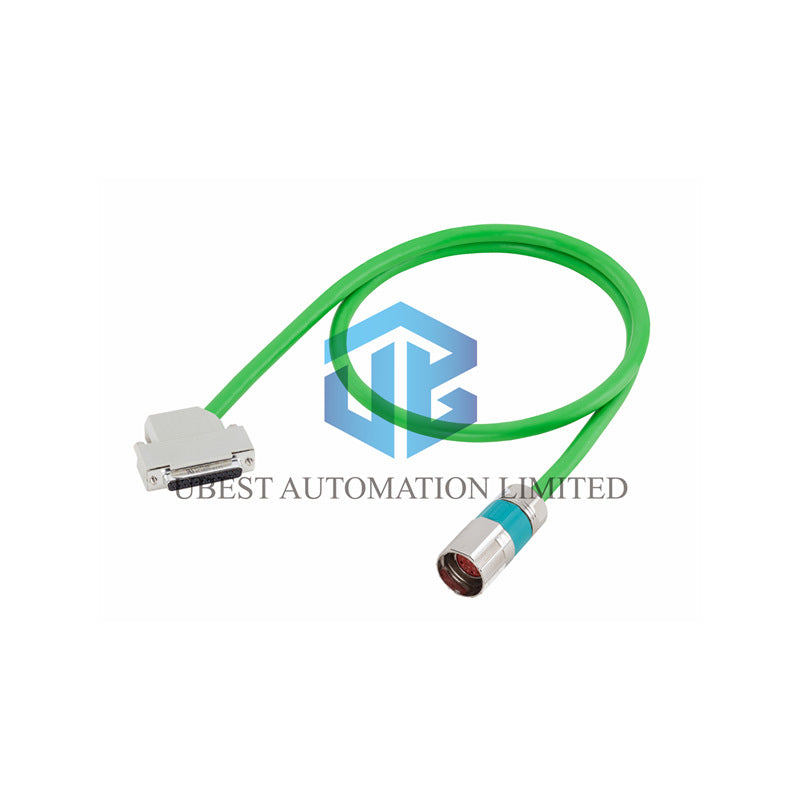

Siemens 6FX8002-2CF02-1DA0 Motion Connect 800Plus Cable
High-performance motor cable designed for demanding industrial applications. Perfect connection between drives and motors with exceptional durability.
- 30-meter length for flexible installation
- Resolver compatible for precise feedback
- PUR jacket for oil and chemical resistance
- M23 to SUB-D connectors ready to use
- Wide temperature range from -50°C to 80°C
Technical Specifications
- Brand: Siemens
- Model: 6FX8002-2CF02-1DA0
- Series: Motion Connect 800Plus
- Cable Length: 30.0 meters
- Motor Connector: M23 full thread
- Drive Connector: SUB-D
- Sensor Type: Resolver 2-pole
- Rated Voltage: 30 V
- Test Voltage: 500 V RMS
- Cable Diameter: 9.2 mm maximum
- Bending Radius: 70 mm flexible, 4xD fixed
- Max Speed: 300 m/min
- Max Acceleration: 50 m/s²
- Tensile Stress: 20-50 N/mm²
- Torsional Stress: 30°/m maximum
- Bend Cycles: 10,000,000 cycles
- Cable Color: Green RAL 6018
- Jacket Material: Polyurethane (PUR)
- Oil Resistance: Certified EN 60811-2-1
- Flame Resistance: EN 60332-1-1 to 1-3
- UL Certification: UL758, cURus AWM-Style
- CSA Certification: CSA-C22.2-N.210.2-M90
Environmental Ratings
- Operating Temperature: -50°C to 80°C (fixed)
- Moving Cable Temperature: -20°C to 60°C
- Storage Temperature: -20°C to 80°C
- Protection Class: HD22.10 S2
- Silicone-free: Yes
- CFC-free: Yes
Installation Notes
- Maintain minimum bending radius during installation
- Secure cable properly to avoid stress on connectors
- Route away from sharp edges and heat sources
- Verify connector orientation before mating
- Follow local electrical codes and standards
Frequently Asked Questions
What types of motors is this cable designed for?
It's specifically designed for motors with resolver feedback systems in motion control applications.
Can this cable be used in outdoor applications?
While durable, it's primarily designed for industrial indoor use with proper protection from direct weather exposure.
What is the expected service life with flexible installation?
Designed for up to 10 million bend cycles, ensuring long-term reliability in dynamic applications.
Is this cable suitable for high-vibration environments?
Yes, with its robust construction and stress ratings, it performs well in vibrating applications.
What maintenance does this cable require?
Regular visual inspection for wear and proper connector engagement is recommended.
