Siemens 6FX8002-2DC10: Ready-to-Use DRIVE-CLiQ Signal Cable

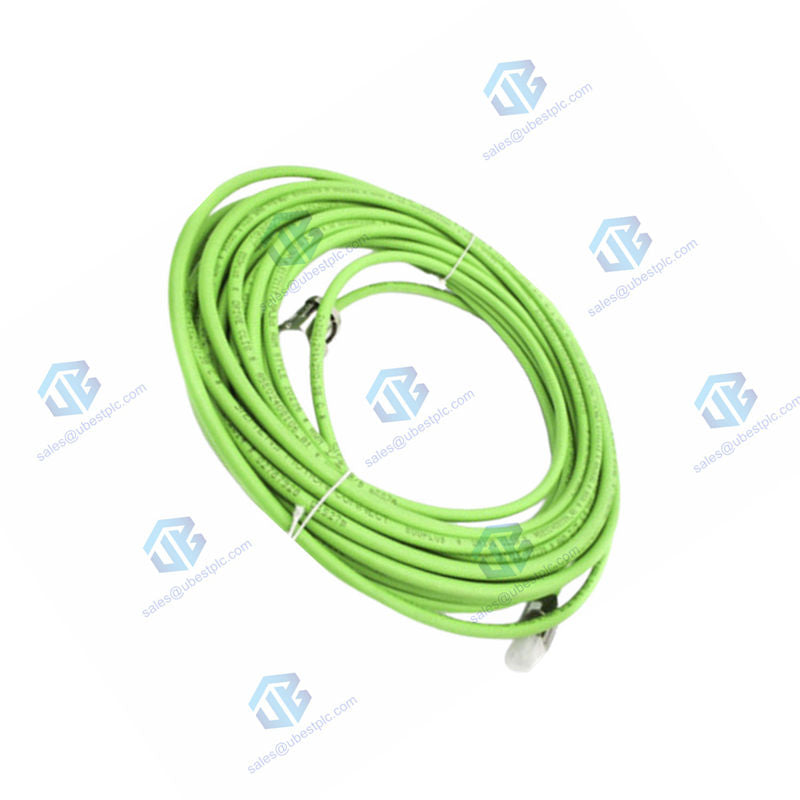

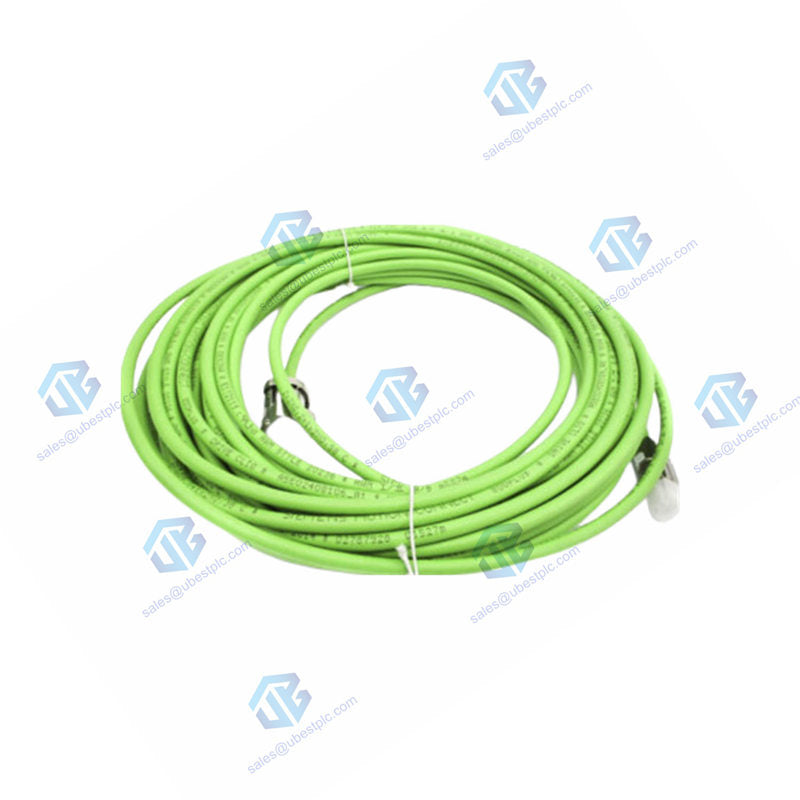

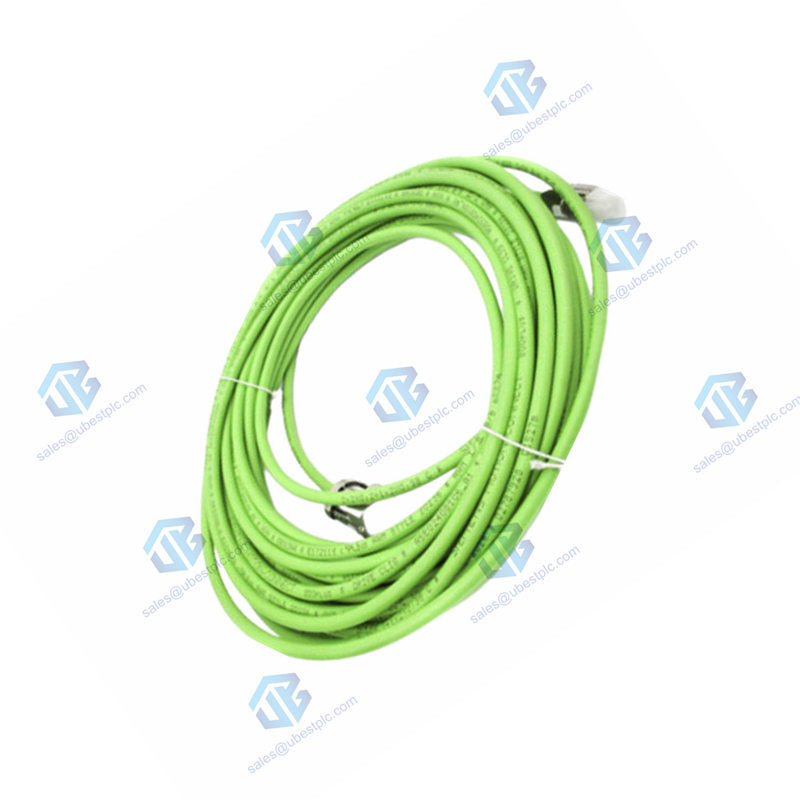

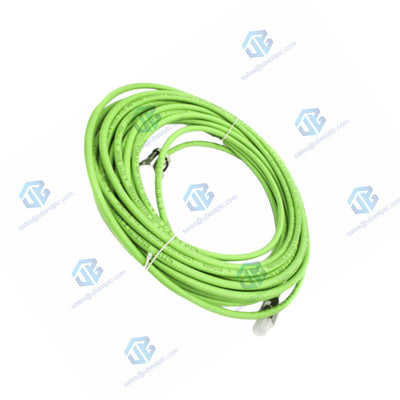

Connect your drive to the motor easily. The Siemens 6FX8002-2DC10 is a pre-assembled DRIVE-CLiQ cable. It links SINAMICS S120 Motor Modules to motors. One end is IP20 for the cabinet, the other is IP67 for the motor side. Saves installation time.

Easy Connection Steps

• Identify the DRIVE-CLiQ port on your S120 Motor Module.
• Connect the IP20 (RJ45) end into the module inside the control cabinet.
• Route the cable to your motor.
• Connect the rugged IP67 plug to the motor's encoder or feedback interface.
• Secure the cable with clamps every 0.5 to 1 meter for strain relief.

Complete Cable Specifications

Siemens Part Number: 6FX8002-2DC10 (Full: 6FX80022DC101BE0)
Cable Type: Pre-assembled DRIVE-CLiQ Signal Cable, MOTION-CONNECT 800PLUS series.
Connector A (Module Side): Standard RJ45 plug, rated IP20 for indoor use.
Connector B (Motor Side): Ruggedized 24V plug, rated IP67 (dust-tight, waterproof).
Maximum Length: Certified for reliable communication up to 75 meters.
Cable Diameter: Outer diameter (Dmax) is 7.1 mm for flexible routing.
Length Tolerance: Standard length with a +0/+10/+4/+0 meter code for production batches.
System Compatibility: For SINAMICS S120 Motor Modules and SINUMERIK 840D sl CNCs.
Net Weight: Approximately 2.163 lbs (~0.98 kg) per cable.
Country of Origin: Manufactured in Slovakia.
Package: Sold as 1 piece per box.

Frequently Asked Questions

Can I cut and re-terminate this cable myself?
No. It is a factory-preassembled, tested unit. Cutting it will void reliability and the warranty. Always order the correct length.

Why are the IP ratings different on each end?
The IP20 end is for the protected inside of the control cabinet. The IP67 end is designed for the harsh, oily, or wet environment near the motor.

What happens if I use a cable longer than 75m?
DRIVE-CLiQ communication may become unstable, causing faults, data errors, or drive shutdowns. Always use cables within the certified length.

Is this cable shielded?
Yes, as part of the MOTION-CONNECT 800PLUS series, it has high-quality shielding to protect the high-speed DRIVE-CLiQ signals from electrical noise in industrial environments.

Can I use it to connect two drive units together?
This specific variant (with IP67 end) is primarily for motor connection. For unit-to-unit links, check other DRIVE-CLiQ cables with appropriate connectors (e.g., RJ45 to RJ45).

Warranty & Shipping Info

This cable is protected by a 12-month warranty against defects. We ship quickly worldwide via FedEx, UPS, and DHL.
