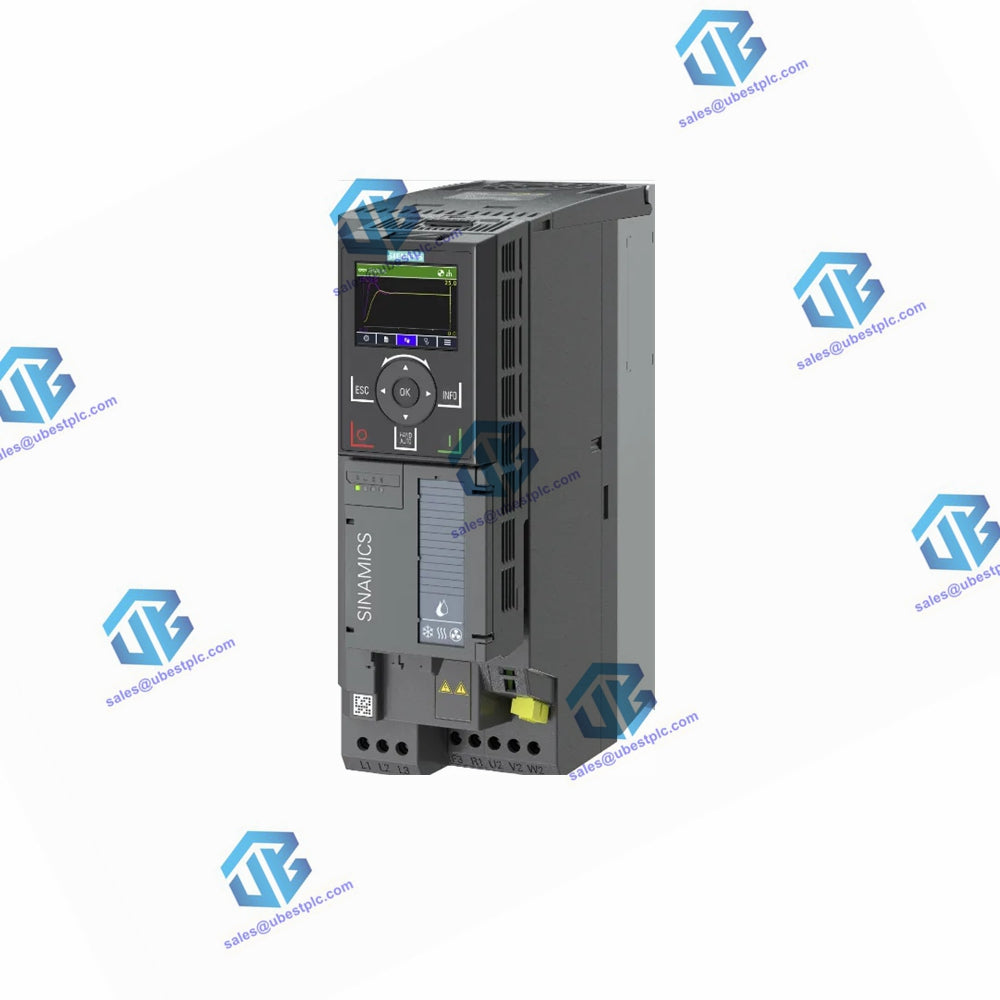

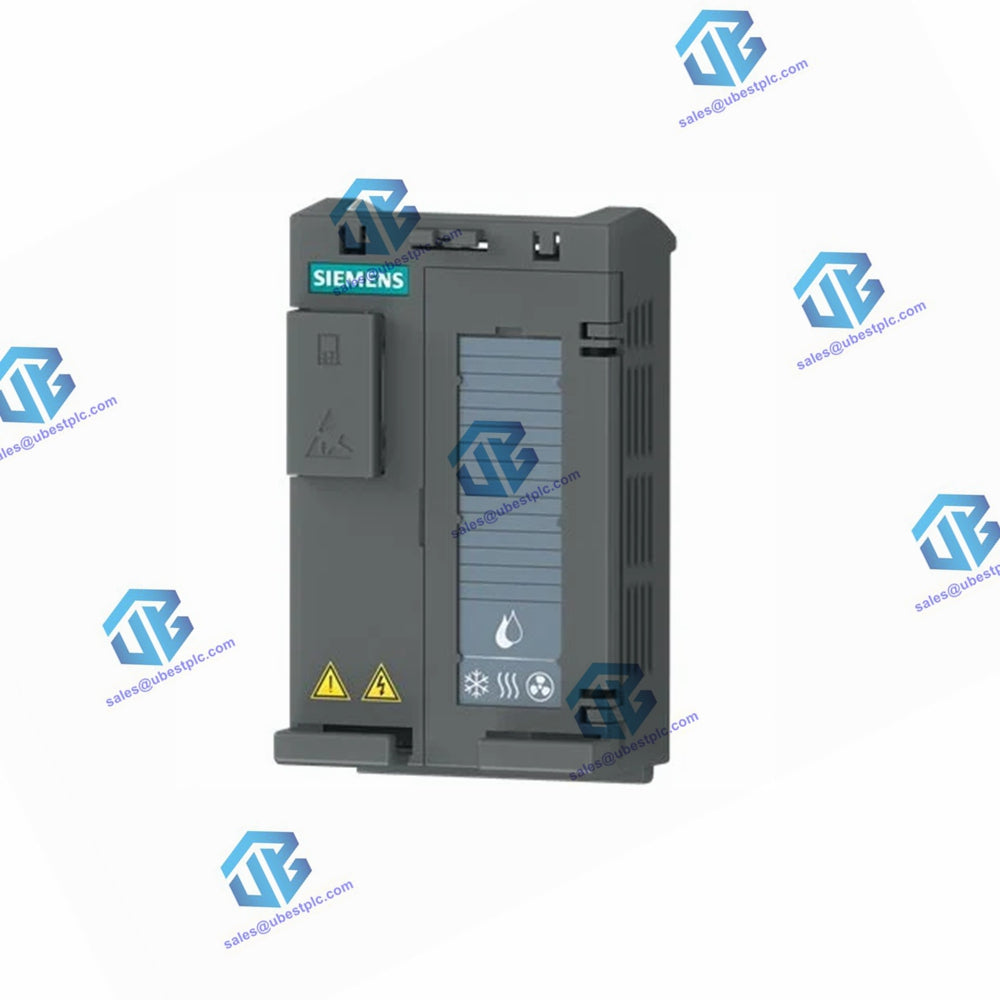

6SL3220-2YE24-0UP0 | Variable Speed Drive Siemens
Manufacturer:
Siemens
Product No.:
6SL3220-2YE24-0UP0
Condition:
In Stock
Product Type:
Variable Speed Drive
Product Origin:
DE
Weight:
5830g
Shipping port:
Xiamen
Warranty:
12 months
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Siemens Product Information | |
|---|---|
| Article Number (Market Facing Number): | 6SL3220-2YE24-0UP0 |
Siemens Rated Data | |
|---|---|
| Input | |
| Number of Phases: | 3 AC |
| Line Voltage: | 380 ... 480 V +10 % -20 % |
| Line Frequency: | 47 ... 63 Hz |
| Rated Voltage: | 400V IEC, 480V NEC |
| Rated Current (LO): | 17.00 A / 14.30 A |
| Rated Current (HO): | 13.25 A / 10.60 A |
| Output | |
| Number of Phases: | 3 AC |
| Rated Voltage: | 400V IEC, 480V NEC |
| Rated Power (LO): | 7.50 kW / 10.00 hp |
| Rated Power (HO): | 5.50 kW / 7.50 hp |
| Rated Current (LO): | 18.00 A / 14.00 A |
| Rated Current (HO): | 13.20 A / 11.00 A |
| Rated Current (IN): | 18.50 A |
| Max. Output Current: | 24.00 A |
| Pulse Frequency: | 4 kHz |
| Output Frequency for Vector Control: | 0 ... 200 Hz |
| Output Frequency for V/f Control: | 0 ... 550 Hz |
Siemens General Technical Specifications | |
|---|---|
| Power Factor λ: | 0.70 ... 0.85 |
| Offset Factor cos φ: | 0.96 |
| Efficiency η: | 0.97 |
| Sound Pressure Level (1m): | 63 dB |
| Power Loss: | 0.259 kW |
| Filter Class (Integrated): | Unfiltered |
| EMC Category (With Accessories): | Without |
| Safety Function "Safe Torque Off": | Without SIRIUS device (e.g. via S7-1500F) |
Siemens Inputs / Outputs | |
|---|---|
| Standard Digital Inputs: | 6 |
| Switching Level 0 → 1: | 11 V |
| Switching Level 1 → 0: | 5 V |
| Max. Inrush Current: | 15 mA |
| Fail-Safe Digital Inputs: | 1 |
| Digital Outputs: | Number as relay changeover contact: 2 |
| Output (Resistive Load): | DC 30 V, 5.0 A |
| Number as Transistor: | 0 |
| Analog / Digital Inputs: | 2 (Differential input) |
| Resolution: | 10 bit |
| Switching Threshold as Digital Input 0 → 1: | 4 V |
| Switching Threshold as Digital Input 1 → 0: | 1.6 V |
Siemens Ambient Conditions | |
|---|---|
| Standard Board Coating Type: | Class 3C2, according to IEC 60721-3-3: 2002 |
| Cooling: | Air cooling using an integrated fan |
| Cooling Air Requirement: | 0.009 m³/s (0.325 ft³/s) |
| Installation Altitude: | 1,000 m (3,280.84 ft) |
| Ambient Temperature - Operation: | -20 ... 45 °C (-4 ... 113 °F) |
| Ambient Temperature - Transport: | -40 ... 70 °C (-40 ... 158 °F) |
| Ambient Temperature - Storage: | -25 ... 55 °C (-13 ... 131 °F) |
| Relative Humidity - Max. Operation: | 95 % At 40 °C (104 °F), condensation and icing not permissible |
Siemens Connections | |
|---|---|
| Signal Cable Conductor Cross-Section: | 0.15 ... 1.50 mm² (AWG 24 ... AWG 16) |
| Line Side - Version: | Screw-type terminal |
| Line Side - Conductor Cross-Section: | 1.50 ... 6.00 mm² (AWG 16 ... AWG 10) |
| Motor End - Version: | Screw-type terminals |
| Motor End - Conductor Cross-Section: | 1.50 ... 6.00 mm² (AWG 16 ... AWG 10) |
Siemens Mechanical Data | |
|---|---|
| Degree of Protection: | IP20 / UL open type |
| Frame Size: | FSB |
| Net Weight: | 5.83 kg (12.85 lb) |
| Dimensions | |
| Width: | 100 mm (3.94 in) |
| Height: | 275 mm (10.83 in) |
| Depth: | 218 mm (8.58 in) |
