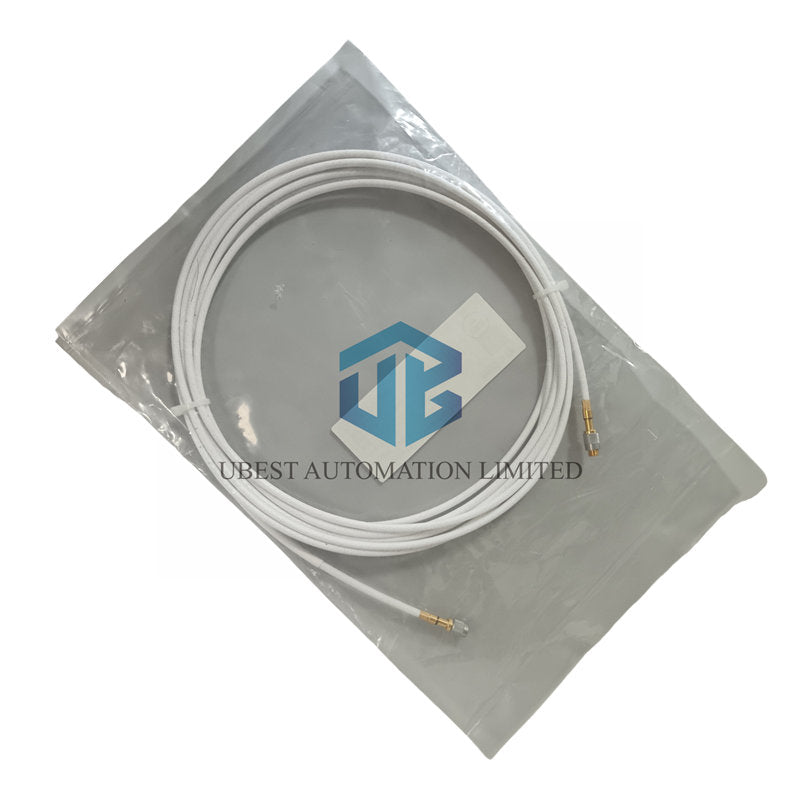

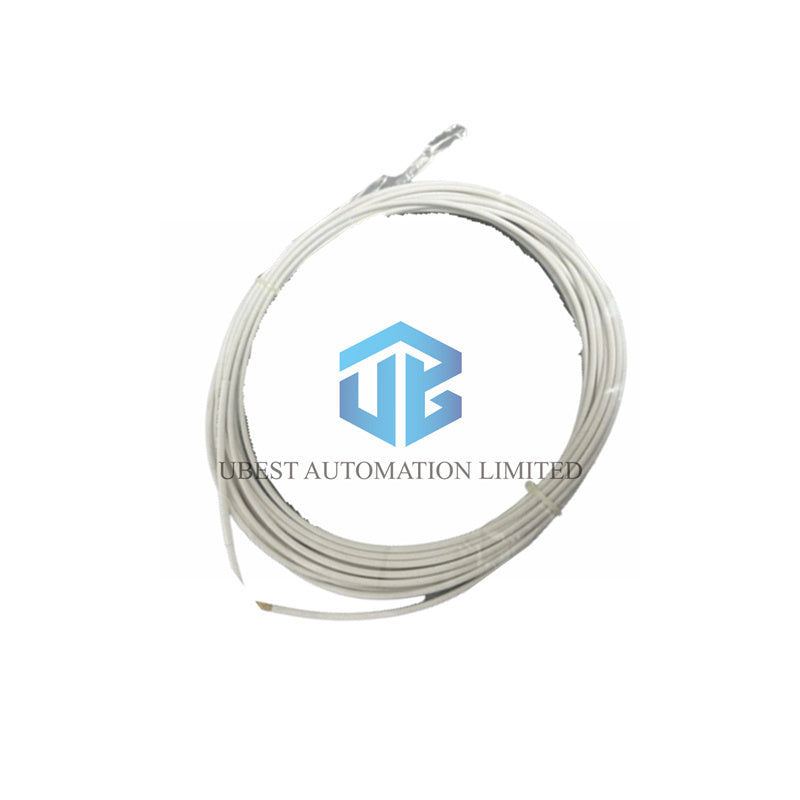

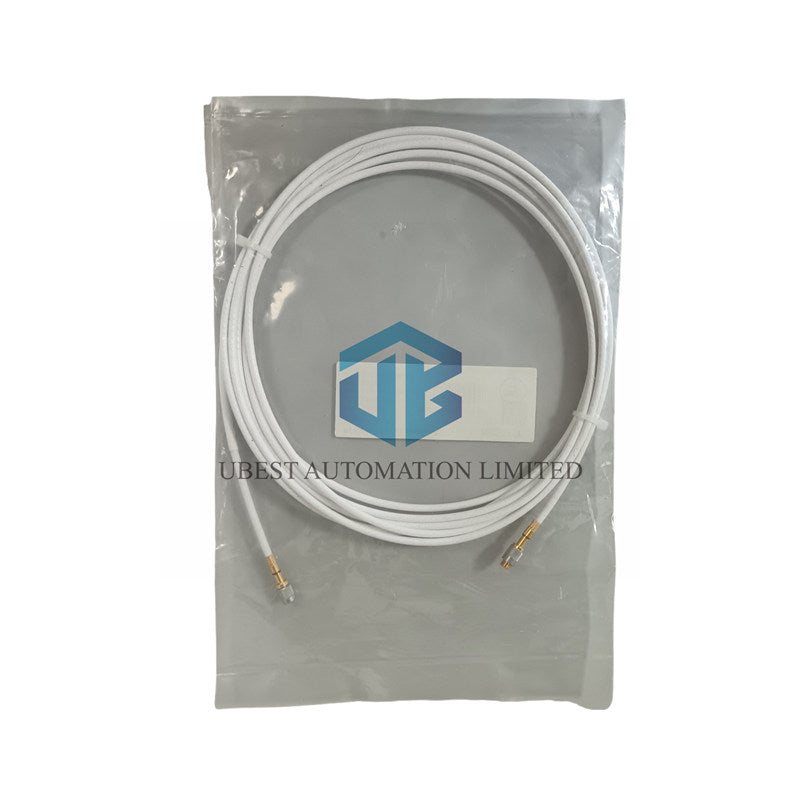

Meggitt Vibro-Meter Long Reach Proximity Sensor - 9.5m Cable
- Extended Length - 9.5 meter cable for distant installations
- No Hose Design - Flexible routing without protective housing
- Weather Resistant - IP68 rated for outdoor and harsh environments
- Quick Dispatch - Ships via FedEx, UPS, DHL within 24 hours
Product Overview
The Meggitt Vibro-Meter proximity system offers extended reach with 9.5-meter cable. This proximity measuring system provides reliable vibration monitoring for large machinery. Perfect for applications requiring longer distance between sensor and monitoring equipment.
Technical Specifications
- Product Code: 913-402-000-013/A1-E095-F0-G000
- Cable Length: 9.5 meters ±950 mm
- Sensor Type: Eddy-current proximity probe
- Probe Size: 8 mm diameter
- Gap Range: 2 mm or 4 mm selection
- Bandwidth: 0 to 20,000 Hz
- Temp Range: -40°C to +180°C
- Ingress Protection: IP68 submersible
- Cable Construction: FEP coaxial, 3.6mm diameter
- Impedance: 70 ohm characteristic
- Mounting: Dual M4 threaded holes
- Total Weight: 220 grams
Key Features
- Long 9.5m cable for flexible placement
- No protective hose for easy installation
- Automatic temperature compensation
- Short circuit and reverse polarity protection
- Compliant with API 670 standards
- VM600 and VibroSmart compatible
Installation Guide
Secure with two M4 screws on mounting surface. Connect to IQS900 signal conditioner. Route 9.5m cable to control system. Hand-tighten coaxial connectors until secure click.
Expert FAQ
What applications need 9.5 meter cable length?
Large turbines, generators, and industrial machinery where monitoring equipment is located far from measurement points.
Does cable length affect signal quality?
Minimal signal degradation with proper installation. System designed for cable lengths up to 10 meters.
Can the cable be cut to custom length?
Not recommended. Cable length is factory-set for optimal performance. Custom lengths available on request.
How to protect exposed cable in harsh areas?
Use cable trays, conduits, or optional protective hose for additional mechanical protection in high-traffic areas.
What's the maximum temperature for continuous use?
180°C continuous operation with less than 5% sensitivity drift. Short-term survival up to 220°C.
