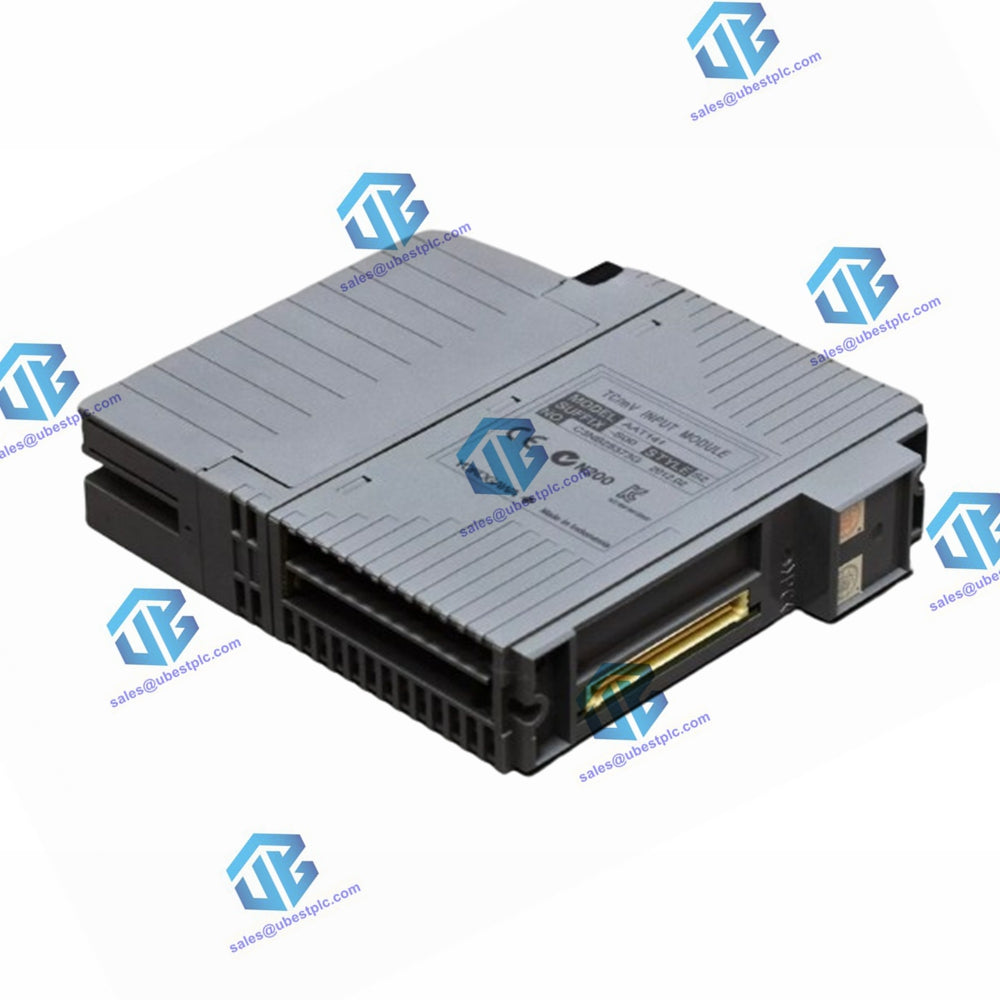

Model AAT141-S00 Overview

• Number of Input Channels: 16 isolated channels
• Input Signal Types:
  • Thermocouples (TC): JIS C1602:1995, IEC584:1995 - Types J, K, E, B, R, S, T, N
  • Millivolts (mV): -100 to 150 mV, -20 to 80 mV
  • Resistance Temperature Detector (RTD): JIS C1604:1997, IEC751:1995 - Pt100 3-wire type
• Allowable Input Voltage: ±5 V
• Withstanding Voltage: 1500 V AC between input and system
• Input Resistance: 2 MΩ or larger (both power on and off)
• Accuracy:
  • TC: ±30 μV
  • mV: ±80 μV (-100 to 150 mV), ±30 μV (-20 to 80 mV)
  • RTD: ±120 mΩ
• Allowable Total Resistance of Signal Source Plus Wiring: 1000 Ω or less
• Reference Junction Compensation Accuracy: Within ±1 °C
• Temperature Drift:
  • ±80 μV/10 °C (for -100 to 150 mV input)
  • ±30 μV/10 °C (for TC and -20 to 80 mV input)
  • ±120 mΩ/10 °C (for RTD input)
• Data Update Period: 1 second
• Burn-out Detection:
  • All channels can be set together
  • Detection time: 60 seconds
• Maximum Current Consumption: 450 mA (5 V DC)
• Weight: 0.3 kg
