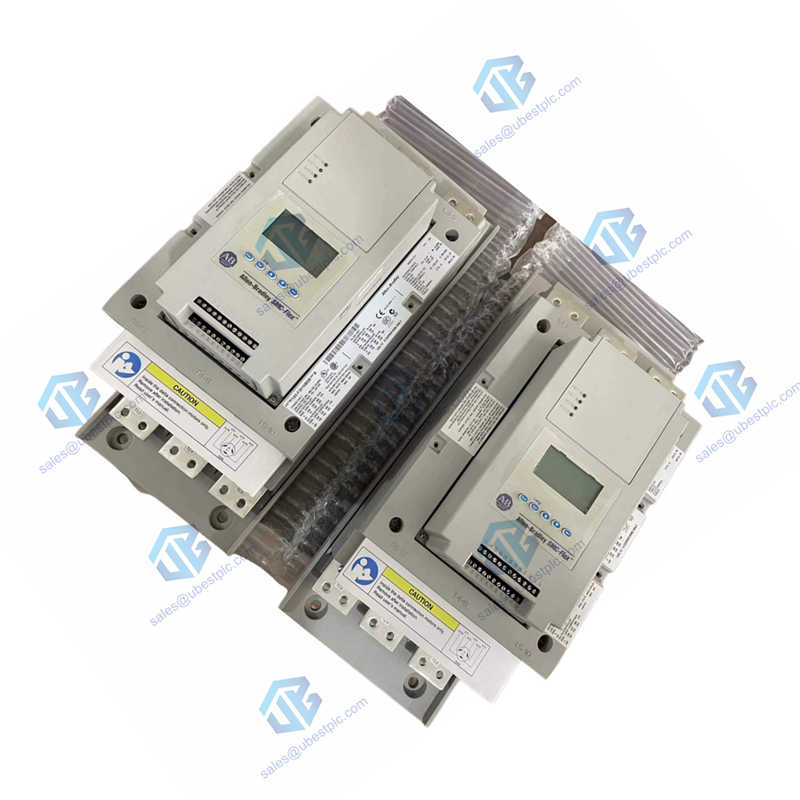

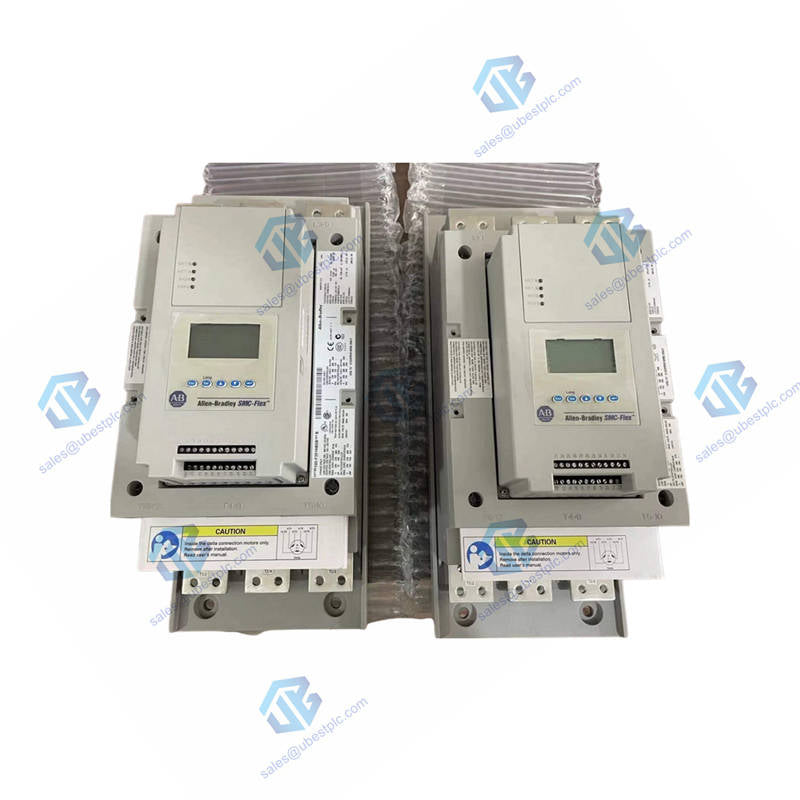

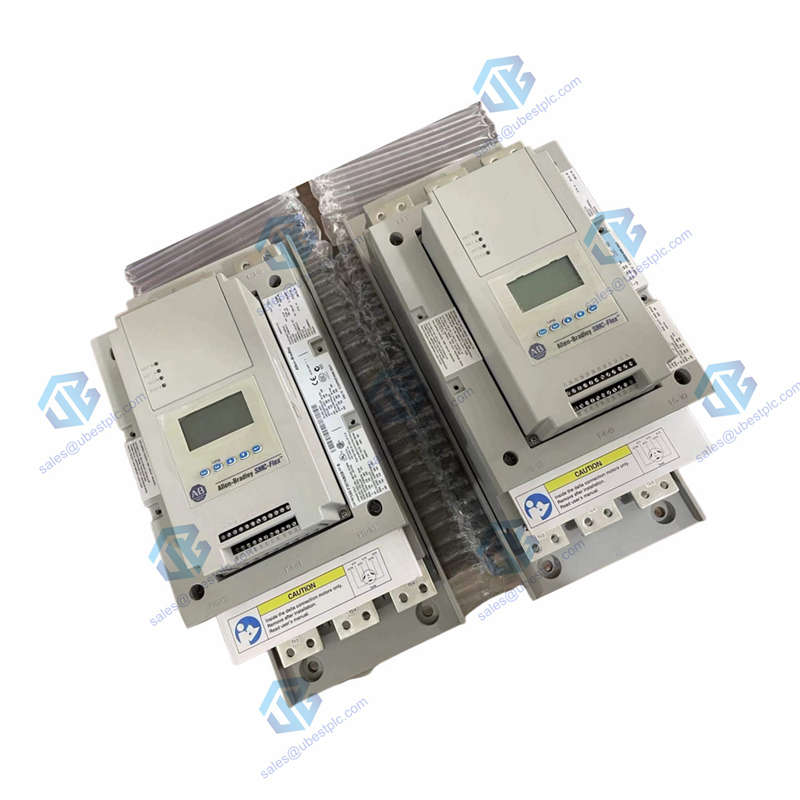

Allen-Bradley 150-F201NBR SMC Flex Smart Motor Controller

The Allen-Bradley 150-F201NBR is a versatile smart motor controller. This soft starter handles motors up to 150 horsepower with advanced control features. Its integrated display and multiple operating modes suit various industrial applications.

Core Technical Specifications

• Brand & Model: Allen-Bradley 150-F201NBR SMC Flex
• Line Voltage: 200-460V AC, 3-Phase, 50/60 Hz
• Control Voltage: 24V AC/DC for 5-480A units
• Output Current: 201 Amperes continuous rating
• Output Power: 150 HP at 460V AC rated voltage
• Enclosure Type: Open design for panel mounting
• Display: Integrated LCD backlit screen

Operating Modes & Functions

• Soft Start: Gradual voltage increase starting
• Full Voltage Start: Direct starting option
• Smart Motor Braking: Controlled deceleration
• Current Limit Start: Maximum current restriction
• Dual Ramp Start: Two-stage acceleration
• Pump Start & Stop: Specialized pump control
• Accu-Stop: Precise stopping control
• Kickstart: Immediate torque application

Additional Control Features

• Slow Speed with Braking: Low-speed operation
• Coast-to-Rest: Natural stopping without brakes
• Preset Slow Speed: Fixed low-speed setting
• Linear Speed Acceleration: Needs tachometer
• Soft Stop: Smooth motor deceleration
• Multiple Options: 14 total operating modes

Protection & Diagnostics

• Power Loss: Automatic power failure response
• Line Fault: Power line abnormality detection
• Voltage Unbalance: Phase voltage monitoring
• Phase Reversal: Incorrect rotation detection
• Undervoltage/Overvoltage: Voltage limit protection
• Controller Temperature: Internal heat monitoring
• Motor Protection: Stall, jam, overload detection

Electrical Specifications

• Insulation Voltage: 500V AC IEC-rated insulation
• Impulse Voltage: 6000V rated impulse capacity
• Dielectric Withstand: 2,200V withstand rating
• DV/DT Protection: RC Snubber Network included
• Branch Protection: 600A Class J fuse required
• Short-Circuit Rating: Maximum 18KA capacity

Control Circuit Details

• Control Voltage: 24V AC/DC operation
• Dielectric Withstand: 1600V control circuit
• ON-State Voltage: 19.2V DC/20.4V AC minimum
• Current Draw: 7.6mA operational current
• Temperature Control: 40VA heatsink fan cooling
• Motor Compatibility: Squirrel-cage induction type

Auxiliary Contacts & Relays

• Contact Quantity: Four programmable relays
• Contact Ratings: 3A and 1.5A (NC/NO) capacity
• Voltage Ratings: 120V AC and 240V AC
• Function Options: Normal, up-to-speed, fault
• Alarm Contact: Pre-configured for faults
• Network Control: Programmable network status

Physical & Installation Requirements

• Weight: 61.19 lbs (27.75 kg) unit weight
• Shipping Weight: 30.4 kg net shipping weight
• Shipping Volume: 560 x 225 x 258.3 mm
• Enclosure Size: Minimum 965 x 762 x 356 mm
• Mounting: Direct sub-panel installation
• Mounting Holes: Provided top and bottom

Environmental Specifications

• Operating Temperature: 23°F to 122°F range
• Storage Temperature: -4°F to 167°F range
• Humidity: 5 to 95% non-condensing
• Altitude: 2000m operation without de-rating
• Location: Indoor installation required
• Certifications: CCC, c-UL-us, UL, CE marks

Communication & Interface

• DPI Port: DeviceNet PI communication port
• Human Interface: Optional HIM connection
• Communication: Network module connection
• Monitoring: Built-in HIM for local operation
• Configuration: Local parameter adjustment
• Status Display: Drive operation monitoring

Motor Protection Features

• Electronic Overload: i2t Algorithm protection
• Motor Type: Standard induction motors only
• Thermal Protection: Motor capacity monitoring
• Alarm Functions: Multiple pre-configured alarms
• Under Load: Motor underload detection
• Motor Jam: Mechanical jam identification

Package & Support

• Allen-Bradley 150-F201NBR Controller
• Documentation and programming guides
• Mounting hardware and installation info
• Global shipping via FedEx, UPS, and DHL
• Technical support for setup assistance
• Comprehensive quality warranty

Expert Questions & Answers

• What is the advantage of multiple start modes?

Different applications need different starting methods. Multiple modes let you match the starting method to your specific equipment requirements.

• How does the i2t Algorithm protect motors?

The i2t Algorithm calculates thermal energy in the motor. It prevents overheating by monitoring current over time and predicting temperature rise.

• What certifications does this controller have?

The 150-F201NBR carries CCC, c-UL-us, UL, and CE certifications. These ensure compliance with international safety standards.

• Why is a minimum enclosure size specified?

Adequate enclosure space ensures proper heat dissipation and allows for safe electrical clearances between components.

• What types of motors work with this controller?

This controller works with standard squirrel-cage induction motors. It does not support other motor types like synchronous or wound rotor motors.
