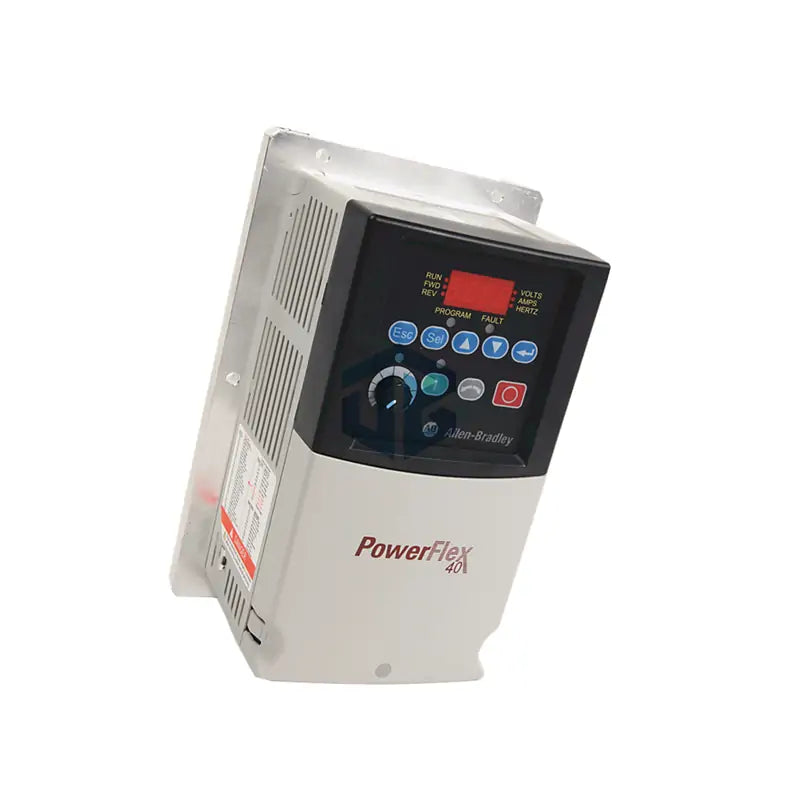

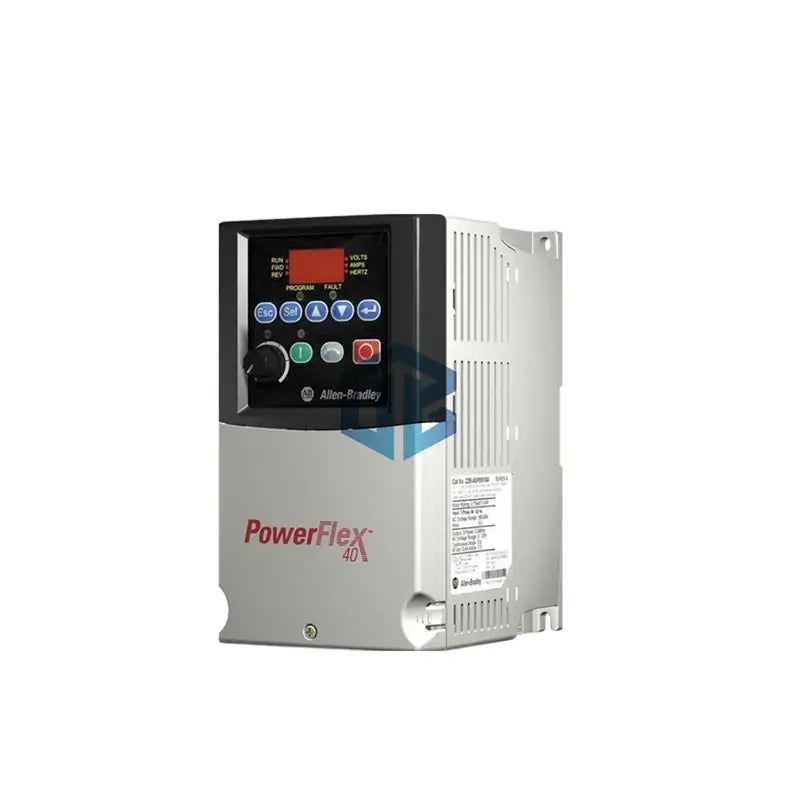

Allen-Bradley 22B-A2P3F104 – Reliable & Compact 0.5HP Motor Drive

Why Choose the 22B-A2P3F104?

• Easy to use – Simple keypad control for quick setup.
• Strong performance – 0.5HP power for small to medium machines.
• Flexible mounting – Flange mount design saves space.
• Built to last – High-quality parts for long life.
• Works with many motors – Great for fans, pumps, and more.

Key Features

• Model: Allen-Bradley 22B-A2P3F104 (PowerFlex 40 Series)
• Power: 0.5HP (0.37kW)
• Voltage: 240V AC (single-phase input)
• Current: 2.3A output
• Frequency: 0-400Hz adjustable
• Mounting: Flange (IP20 open enclosure)
• Communication: RS-485 for easy connectivity
• Overload Protection: 150% for 60 sec, 200% for 3 sec
• Operating Temp: -10°C to 50°C (14°F to 122°F)
• Weight: Lightweight at 1.2kg (2.6 lbs)

Warranty & Shipping

• 12-month warranty – Hassle-free replacement if needed.
• Fast shipping – FedEx, UPS, or DHL for quick delivery.

FAQ

• Can this drive run a 3-phase motor?
• Yes, it converts single-phase input to 3-phase output.
• Does it work with 208V power?
• No, it needs 240V AC for best performance.
• Is a filter included?
• No, but you can add one if needed.
• Can I mount it on a DIN rail?
• No, this model is flange-mount only.
• What’s the max cable length?
• Keep motor cables under 50ft (15m) for best results.

Compare Similar Models

• 22B-B2P3H204 – 0.5HP, 240V, with CE filter
• 22B-B2P3N104 – 1HP, 240V, higher power option
