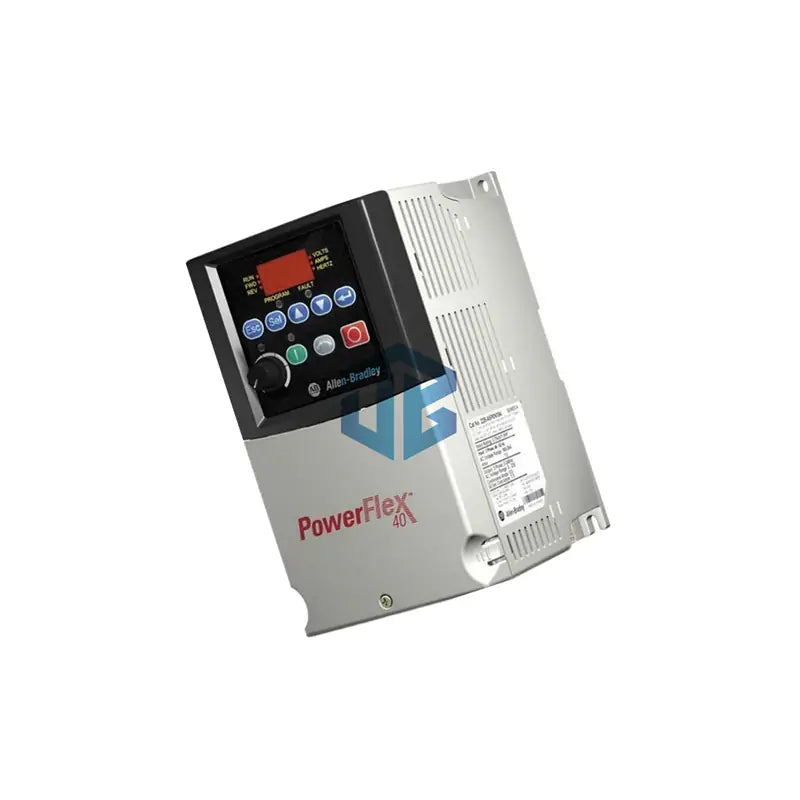

Allen-Bradley 22B-E4P2F104 PowerFlex 40 Drive – Powerful 3HP Motor Control

Why Choose This Drive?

• High torque performance - 3HP output with sensorless vector control
• Wide voltage range - Works from 500V to 600V AC
• Compact design - Fits in tight spaces (9.8×9.6×3.7 inches)
• Easy programming - Intuitive keypad interface
• Download manual: Download Full Specifications (PDF)

Technical Specifications

• Model: Allen-Bradley 22B-E4P2F104
• Power: 3HP (2.2kW)
• Voltage: 600V AC (3-phase, 500-600V range)
• Current: 4.2A output
• Frequency: 50-60Hz
• Control: Sensorless vector technology
• Dimensions: 250×244×94mm (9.8×9.6×3.7in)
• Weight: 4.53kg (10lbs)
• Temperature: 0°C to 60°C operating
• Cable Requirement: Min. 0.4mm insulation

Your Protection

• 12-month warranty - Quality guaranteed
• Fast shipping - FedEx, UPS, or DHL available

Expert Answers

• What motors work with this drive? Most 3-phase motors up to 3HP
• Can it handle low-speed applications? Yes, with excellent torque control
• What's the minimum cable size? 0.4mm insulation required
• Is cooling required? Works up to 60°C without extra cooling
• Can I network multiple drives? Yes, via RS-485 communication

Installation Notes

• Flange mount design for secure installation
• IP20 enclosure protects from dust particles
• Follow all cable specifications for safety
