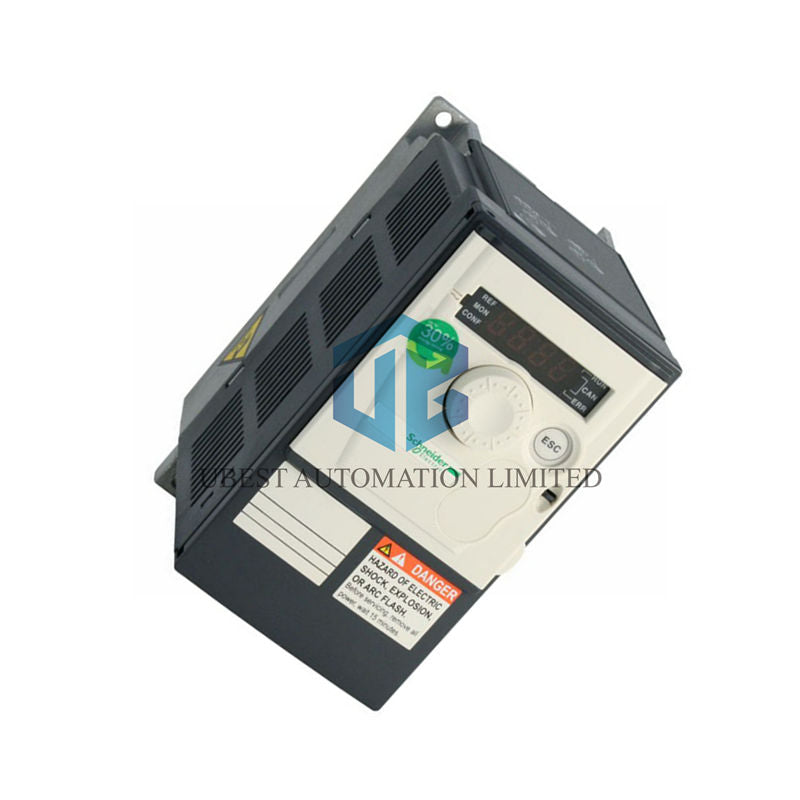

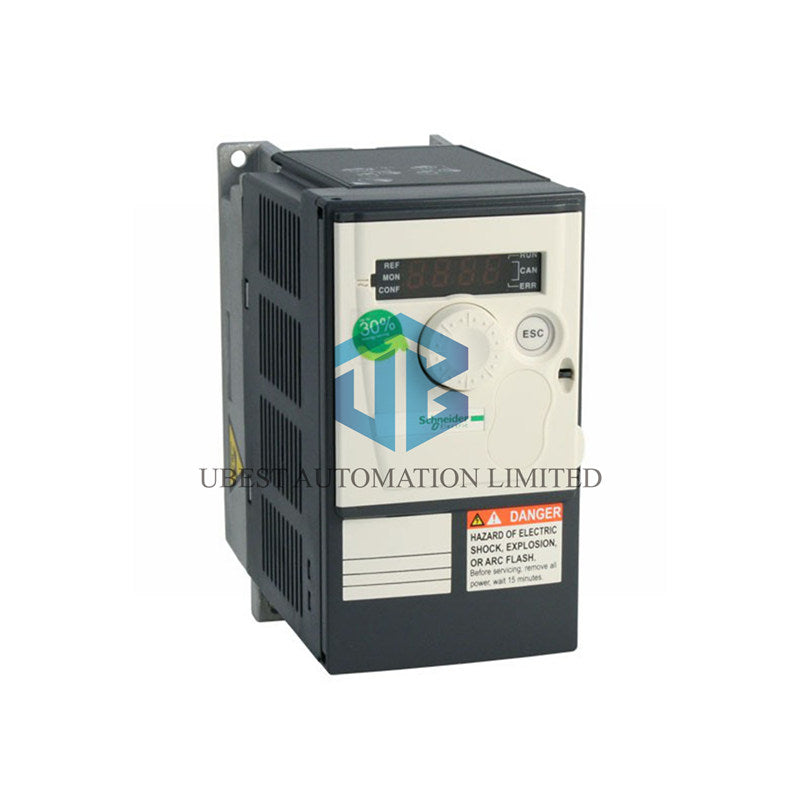

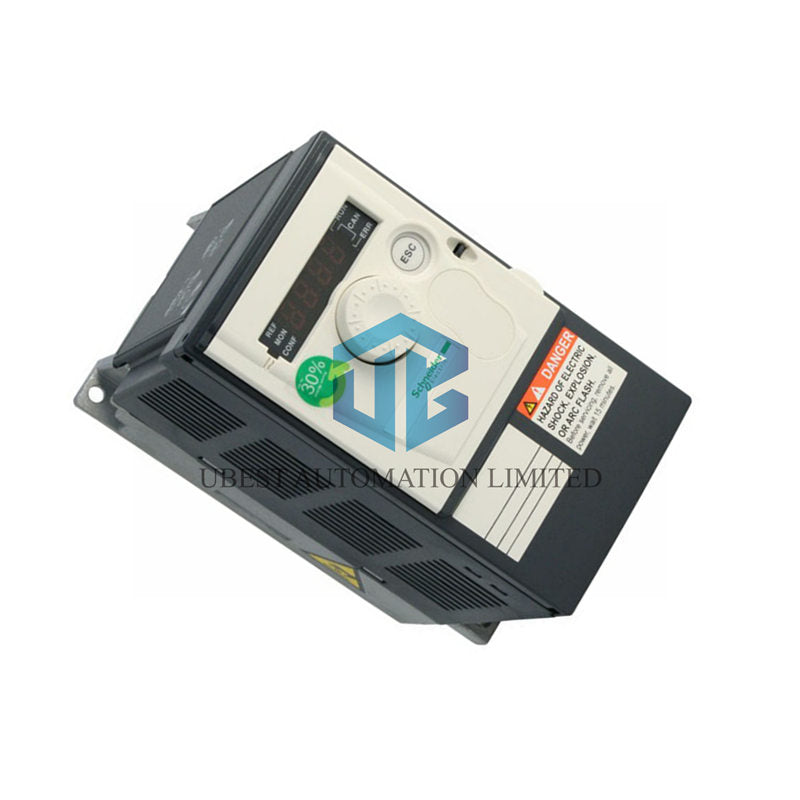

ATV312H018M2 Schneider Altivar 312 Drive - Motor Controller
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Schneider Electric ATV312H018M2 Variable Speed Drive
- Compact 0.18kW motor control solution
- Perfect for small automation projects
- Easy to install and operate
- Fast shipping with tracking
Product Overview
The Schneider Electric ATV312H018M2 variable speed drive offers reliable performance for small motors. This ATV312H018M2 model provides smooth speed control for various applications. Ideal for single-phase power systems.
Key Specifications
Motor Power: 0.18 kW (0.25 HP)
Input Voltage: 200-240V Single Phase
Output Current: 1.5A Continuous
Frequency Range: 0-500 Hz
Control Method: Sensorless Vector
Communication: Modbus, CANopen
EMC Filter: Built-in
Protection Rating: IP20/IP31
Weight: 1.5 kg
Dimensions: 145 x 72 x 132 mm
Technical Details
Brand: Schneider Electric
Model: ATV312H018M2
Series: Altivar 312
Apparent Power: 0.6 kVA
Digital Inputs: 6 Programmable
Analog Inputs: 3 Channels
Relay Outputs: 2 Configurable
Switching Frequency: 2-16 kHz
Operating Temperature: -10°C to 50°C
Certifications: CE, UL, CSA
Control Features
Motor Control: Asynchronous
Torque Capacity: 200% Transient
Braking: DC Injection
Ramps: Adjustable 0.1-999.9s
Display: 4-digit 7-segment
Programming: Easy Menu
Connections: Screw Terminals
Installation: Wall Mount
Communication
Built-in: Modbus, CANopen
Port: RJ45 Connector
Speed: Up to 1 Mbps
Addresses: 127 Devices Max
Protocol: RTU Frame
Interface: RS485
Setup: Simple Configuration
Monitoring: Real-time Data
Warranty & Shipping
All drives include 12 months quality warranty. We ship via FedEx, UPS, DHL express services worldwide.
Frequently Asked Questions
What power supply does it need?
Works with standard 200-240V single phase power sources.
Can it control small motors precisely?
Yes, provides smooth speed control from 0 to 500 Hz.
Is communication setup difficult?
No, simple Modbus and CANopen setup with clear guides.
What protection does it offer?
Includes overload, short circuit and thermal protection.
Can I use it in tight spaces?
Yes, compact design fits in small control panels easily.
