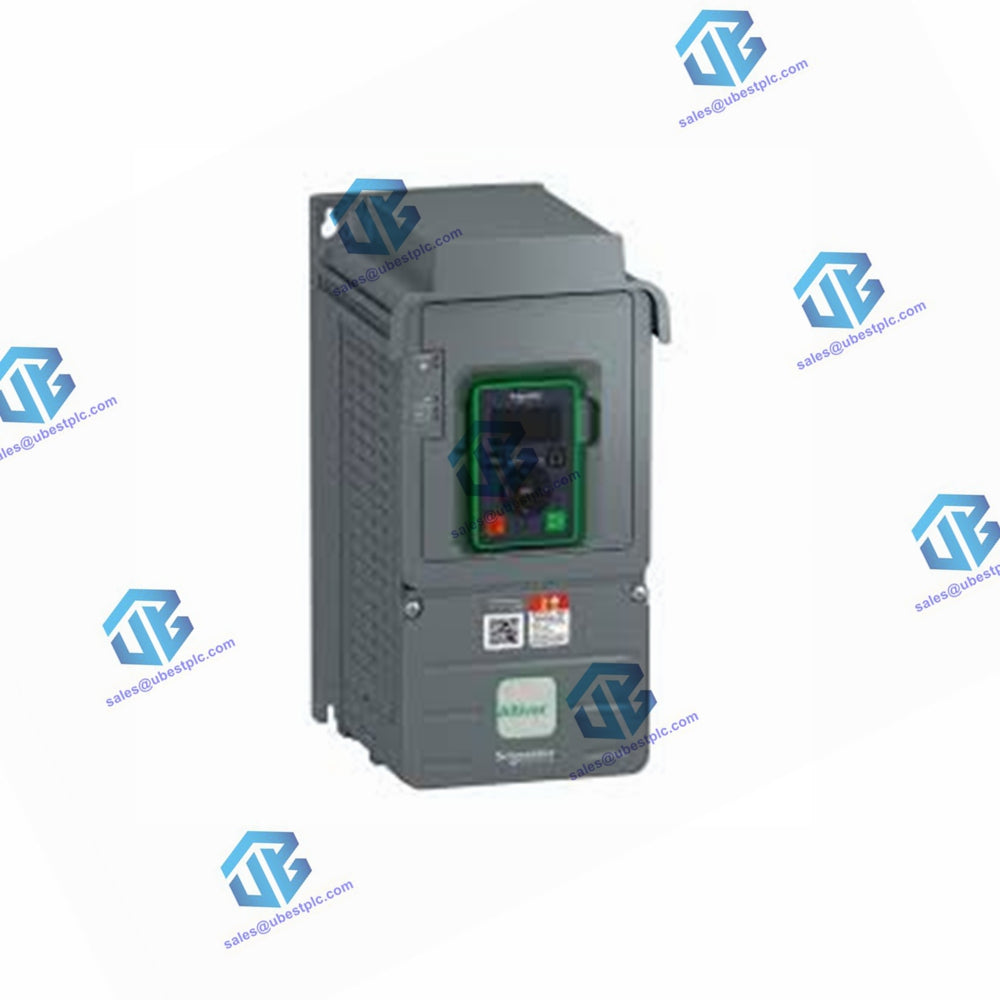

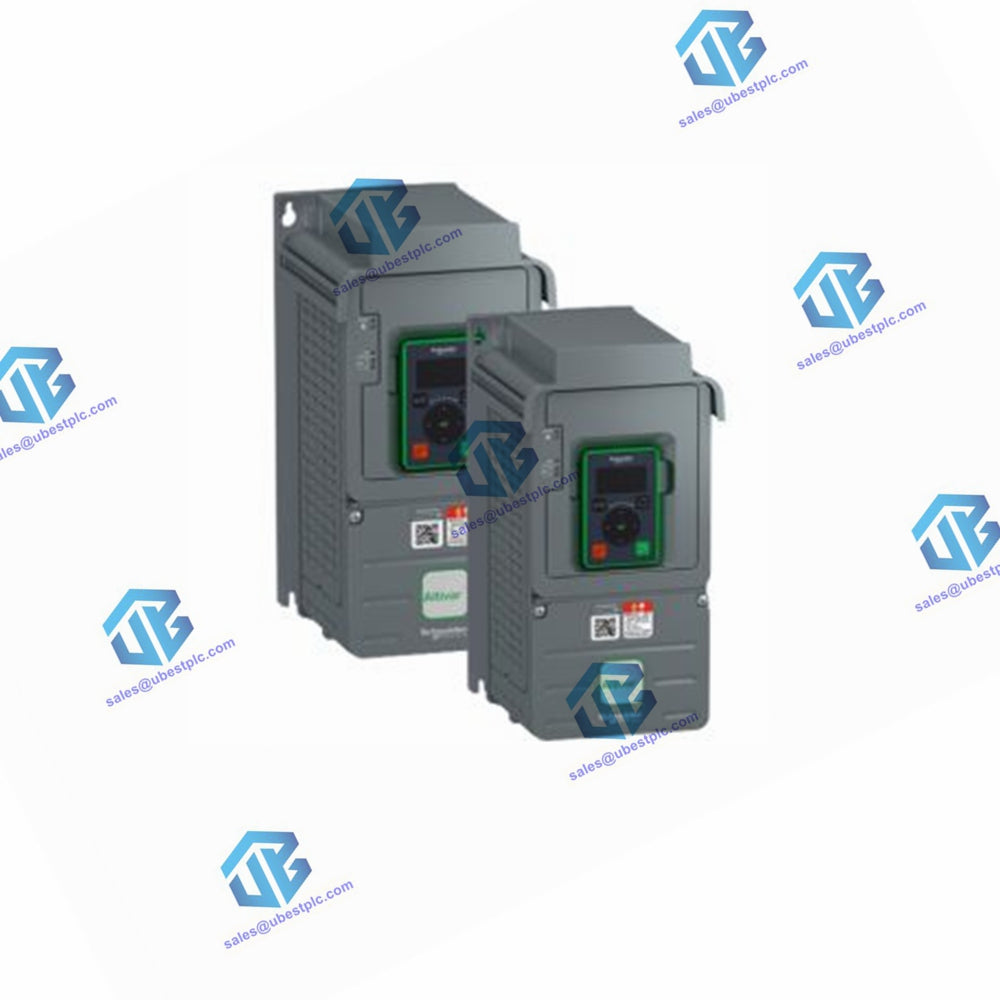

Schneider ATV610D11N4 Altivar 610 Variable Speed Drive

Compact & Efficient Motor Control

• 11kW/15HP capacity (7.5kW/10HP heavy duty)
• Ultra-compact 171×360×233mm design (7.73kg)
• Integrated EMC Filter (IEC 61800-3 C3 compliant)
• Whisper-quiet 56dB operation for sensitive environments

Performance Specifications

• Current Ratings:
  • 380V: 22A (ND), 16.4A (HD)
  • 460V: 19.6A (ND), 14.6A (HD)
• Frequency Range: 0.1-500Hz
• Switching Frequency: 2-12kHz adjustable

Advanced Control Features

• I/O Configuration:
  • 3 analog inputs (0-10V/0-20mA)
  • 6 digital inputs (24VDC, 0-30kHz)
  • 2 analog outputs
  • 3 relay outputs (3A@250VAC)
• Communication: Modbus RTU via RJ45
• 16 preset speeds for operational flexibility

Installation & Wiring

• Screw Terminals:
  • Control: 0.5-1.5mm²
  • Power: 4-16mm²
• Vertical mounting (±10°) in IP20 cabinets
• LED status indicators for easy monitoring

Package Options

• Single Unit: 21.5×34×58cm (9.48kg)
• 3-Unit Pack: 73×60×80cm (36.44kg)
• Includes: Drive unit, documentation
• 12-month manufacturer warranty

Environmental Specifications

• Operating Temp: -15°C to +45°C (up to 60°C derated)
• Altitude: 1000m without derating
• Standards: IEC 61800-3, CE marked
• Power Dissipation: 310W (forced cooling)

Ideal Applications

• Small HVAC systems
• Compact pump controls
• Light conveyor systems
• Space-constrained installations

Why This Drive Stands Out

• Space-saving - 30% smaller than standard drives
• Energy efficient - Low 54W natural convection power loss
• Versatile - Handles both normal and heavy duty applications
• Easy integration - Standard Modbus communication
