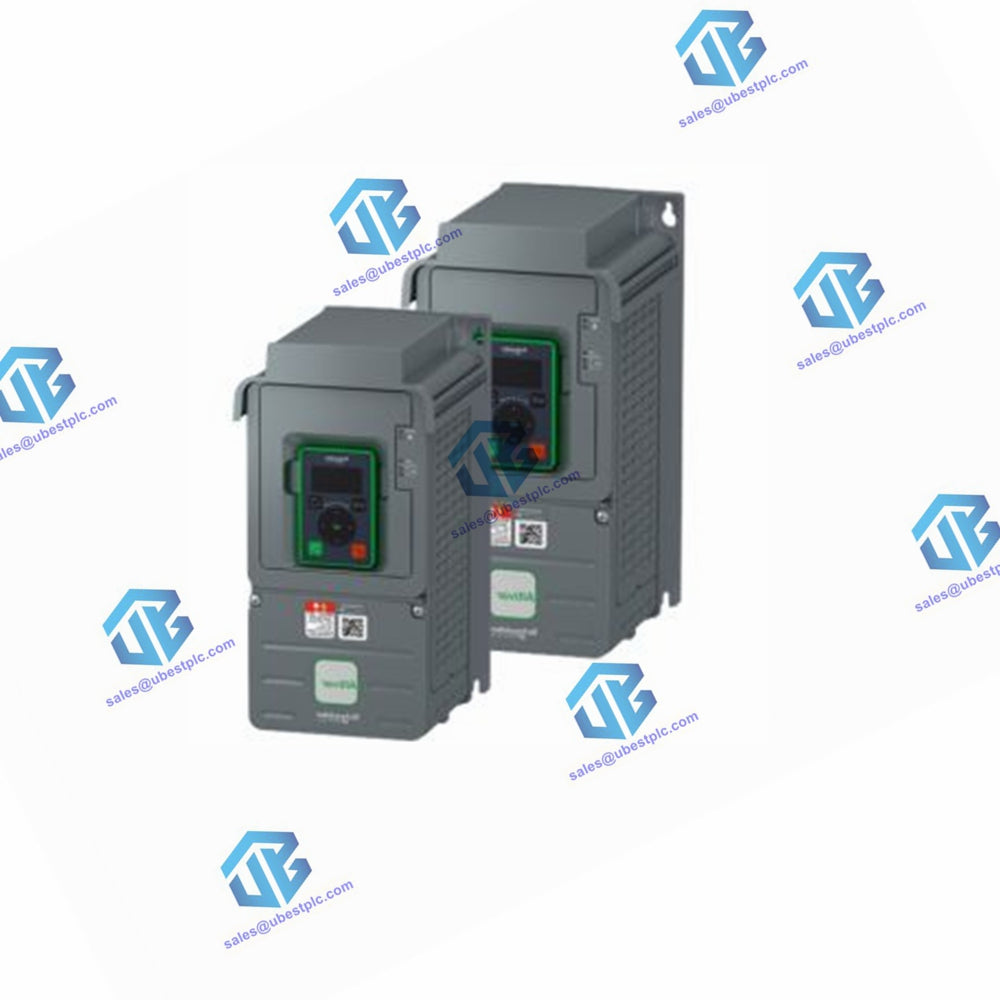

Schneider ATV610D18N4 Altivar 610 Variable Speed Drive

Compact Power for Precision Control

• 18.5kW/25HP capacity (15kW/20HP heavy duty)
• Integrated EMC Filter (IEC 61800-3 C3 compliant)
• Compact 211×495×232mm cabinet design (13.5kg)
• Optimized for fan, pump, and conveyor applications

Performance Specifications

• Current Ratings:
  • 380V: 37.2A (ND), 31.6A (HD)
  • 460V: 33.5A (ND), 28.3A (HD)
• Frequency Range: 0.1-500Hz
• Switching Frequency: 2-12kHz adjustable (4kHz nominal)

Advanced Control Features

• I/O Configuration:
  • 3 analog inputs (0-10V/0-20mA)
  • 6 digital inputs (24VDC, 0-30kHz)
  • 2 analog outputs
  • 3 relay outputs (3A@250VAC)
• Communication: Modbus RTU via RJ45 (4.8-38.4kbit/s)
• 16 preset speeds for quick operation changes

Installation & Wiring

• Screw Terminals:
  • Control: 0.5-1.5mm²
  • Power: 10-16mm²
• Vertical mounting (±10°) in IP20 cabinets
• LED indicators for real-time status monitoring

Package Options

• Single Unit: 33×25×68cm (15kg)
• 4-Unit Pack: 77×80×60cm (80kg)
• Includes: Drive unit, documentation
• 12-month warranty

Technical Specifications

• Noise Level: 65dB
• Operating Temp: -15°C to +45°C (up to 60°C derated)
• Altitude: 1000m without derating
• Standards: IEC 61800-3, IEC 61800-5-1, CE marked

Why Choose This Drive?

• Space-saving design for compact installations
• Flexible configuration with optional expansion cards
• Precision control with 0.1Hz resolution
• Energy efficient operation with multiple cooling options
