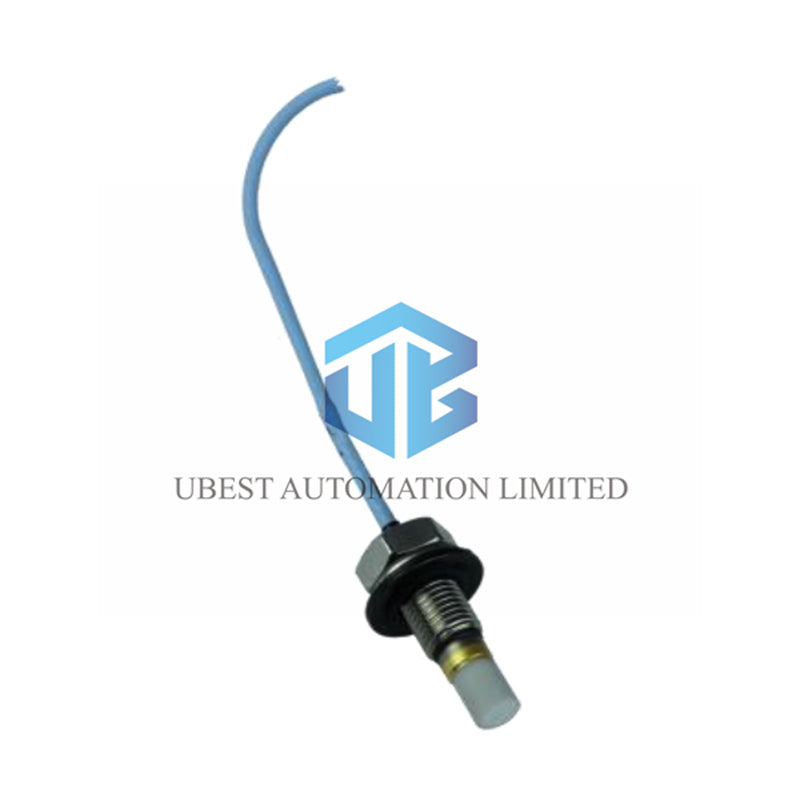

Bently Nevada 146054 Probe - 3300 Series Vibration Sensor
UBEST – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

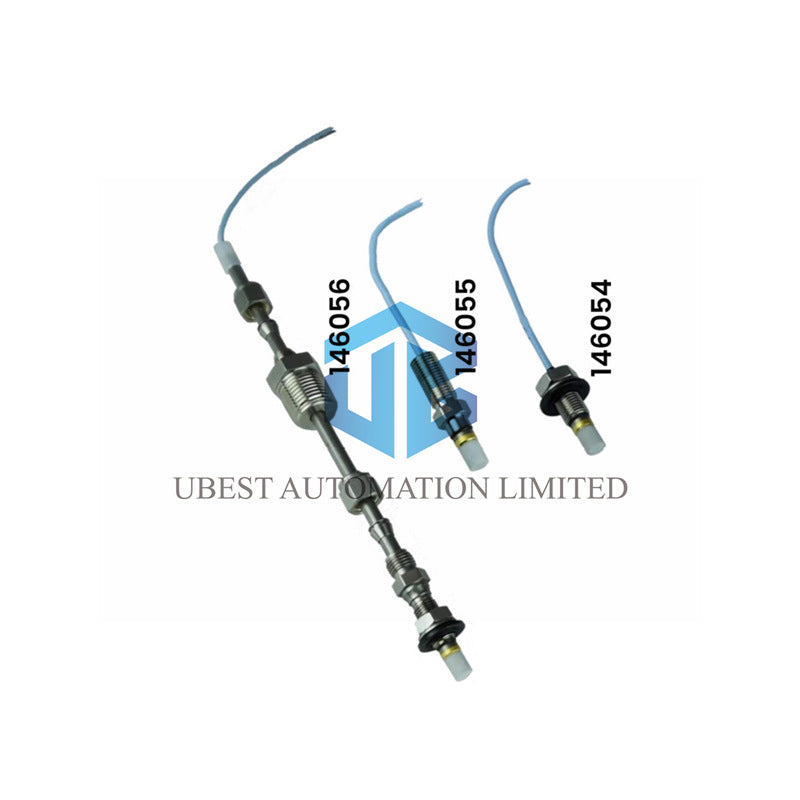

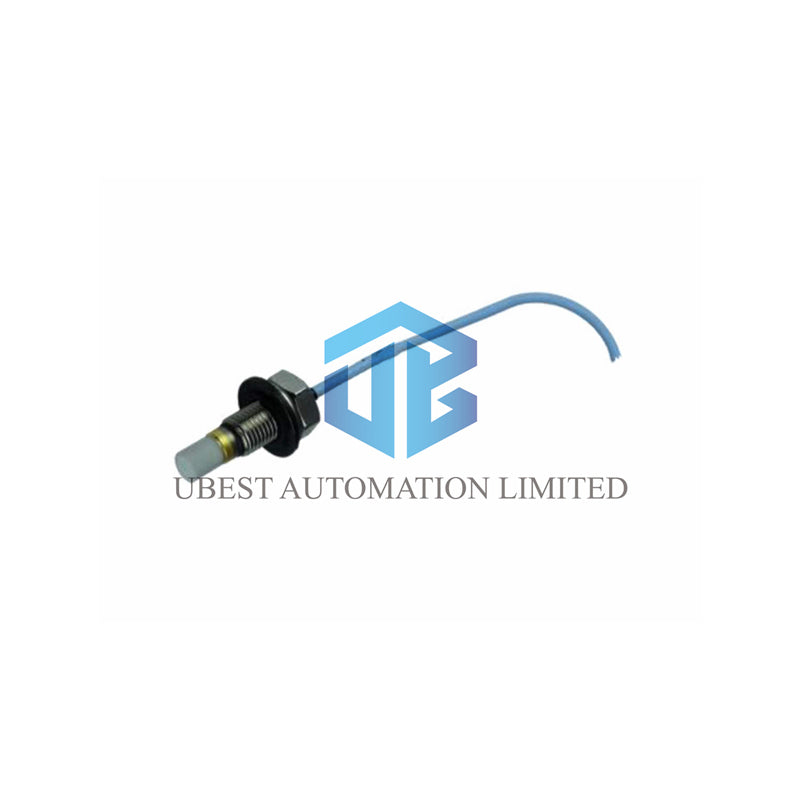

Bently Nevada 3300 Ceramic Probe
New 146054-08-50-00-05 proximity sensor. Original factory sealed. Includes 12 month protection. Ships via FedEx, UPS, DHL worldwide.
Model Number Details
- Base: 146054 - 3300 Ceramic Probe
- Case: -08 - 0.8 inch length
- Cable: -50 - 5.0 meters
- Connector: -00 - No connector
- Approval: -05 - Safety certified
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL System
- Part Number: 146054-08-50-00-05
- Measurement Range: 1.52 mm (60 mils)
- Output Voltage: -4 to -16 Vdc
- Sensitivity: 7.87 V/mm ±6.5%
- DC Resistance: 8.73 ± 0.70 ohms
- Temperature Range: -51°C to +177°C
- Pressure Rating: 34 Bar nitrogen
- Cable Type: 75 ohm coaxial FEP
- Thread Size: 3/8-24 UNF
- Max Thread Engagement: 0.563 inch
Installation Notes
Use 3/8-24 UNF mounting thread. Do not exceed 0.563 inch engagement. Works with 5 meter Proximitor only. Keep target gap 0.25 to 1.78 mm.
System Compatibility
Designed for Bently Nevada 3300 systems. Requires 5 meter Proximitor Sensor. Use with AISI 4140 steel targets. Ideal for vibration monitoring.
Quality Assurance
We provide 12 month quality guarantee. All items are genuine Bently Nevada. Fast technical support available. Reliable worldwide shipping.
Professional Questions
What applications need this short case probe?
Use in tight spaces with limited clearance. Perfect for compact machinery. Ideal where long probes cannot fit.
Why choose no connector version?
Direct wiring saves space. Reduces connection points. Better for permanent installations. Lower maintenance needs.
How does cable length affect performance?
This 5 meter version needs matching Proximitor. Cable length changes system calibration. Always use correct components.
What maintenance does the ceramic tip need?
Ceramic tips resist wear well. Just keep clean and dry. Check gap during routine maintenance. No special care needed.
Can this probe measure different metals?
Calibrated for AISI 4140 steel. Other metals need recalibration. Contact us for special applications. We can help with setup.
