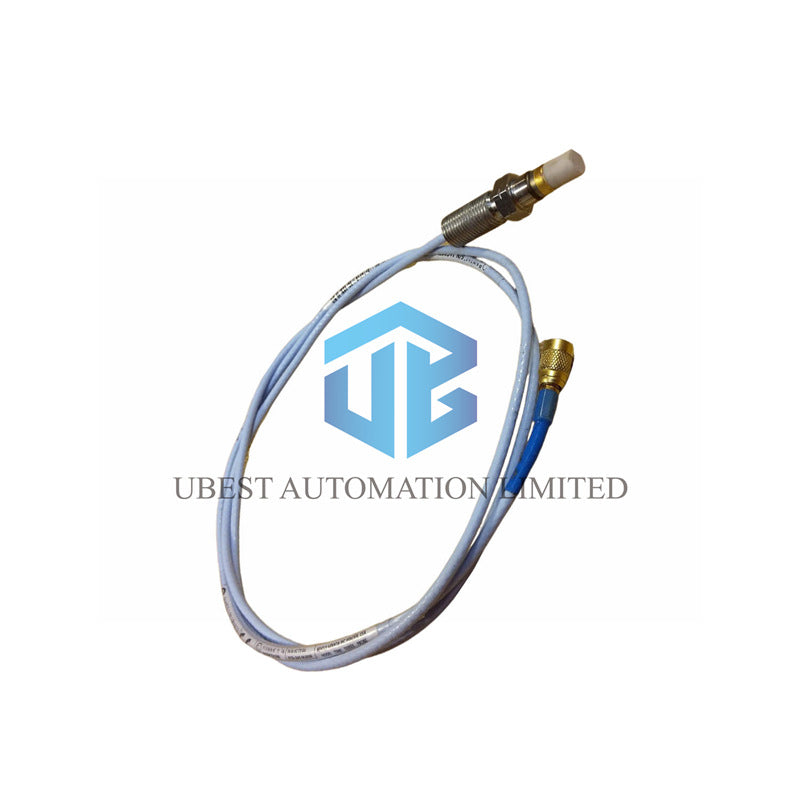

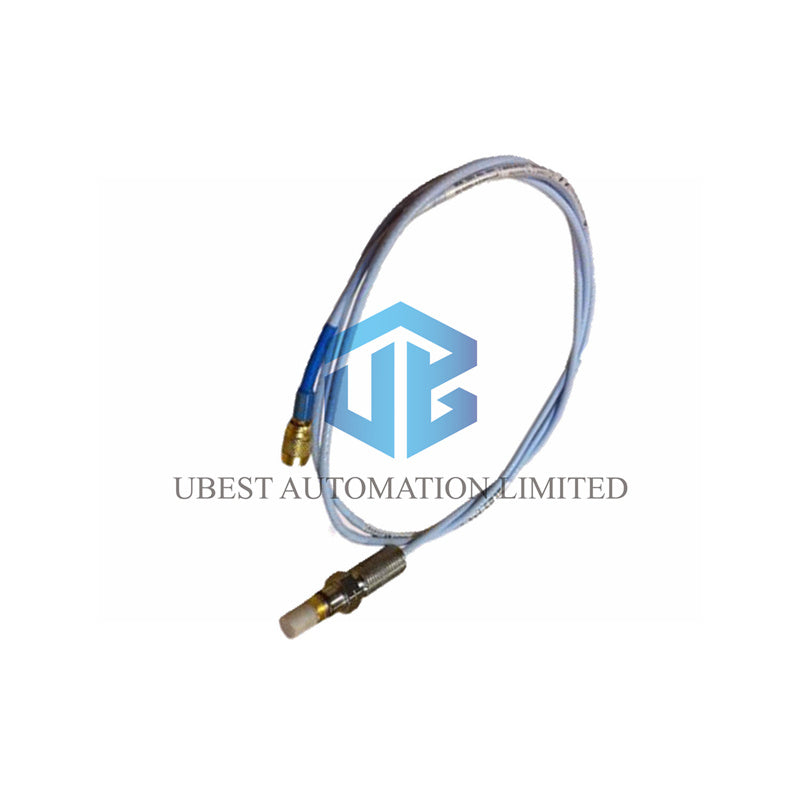

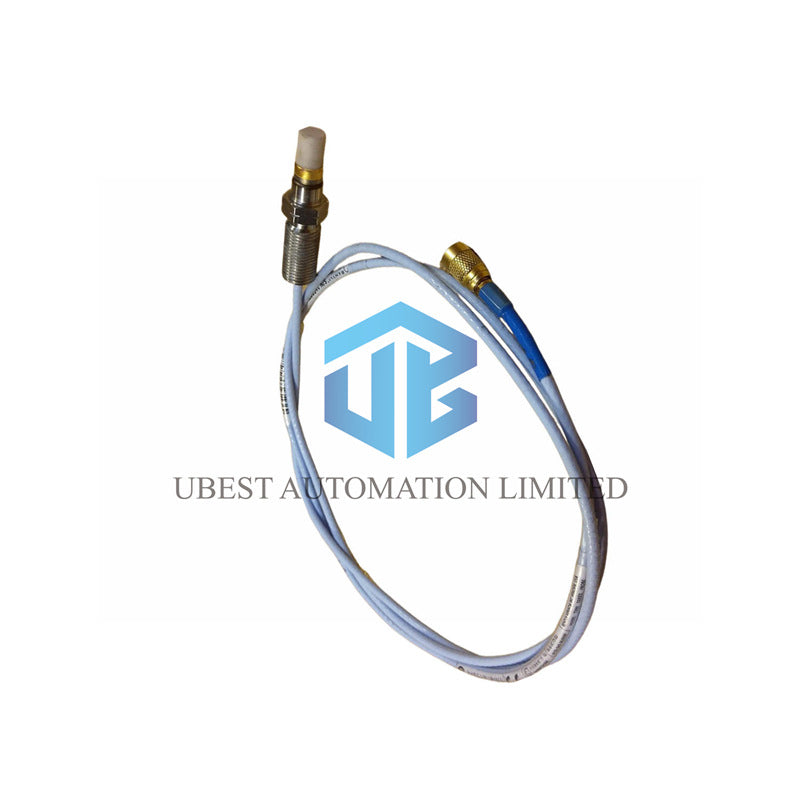

Bently Nevada Compact Reverse Mount Probe

New original 146055-05-02-00 with ultra-short 0.5m cable. Reverse mount design for confined spaces. ClickLoc connector for reliable connections. Includes 12-month warranty. Ships via FedEx, UPS, DHL.

Compact Design Advantages

• Short 0.5 meter cable for minimal routing
• Reverse mount fits space-limited applications
• ClickLoc connector ensures secure attachment
• Ceramic tip resists wear and corrosion
• Stainless steel body for industrial durability

Model Number Explanation

• 146055: Reverse Mount Probe Series
• 05: 0.5 Meter Cable Length
• 02: ClickLoc Coaxial Connector
• 00: Standard Industrial Application

Detailed Technical Specifications

• Brand: Bently Nevada
• Series: 3300 XL Vibration Monitoring
• Model Number: 146055-05-02-00
• Measurement Range: 10 to 70 mils (0.25-1.78mm)
• Output Voltage: -4 to -16 VDC
• Sensitivity: 200 mV/mil (7.87 V/mm)
• Electrical Resistance: 7.45 ohms ±0.50
• Cable Type: 75 ohm FEP coaxial
• Operating Temperature: -60°F to +351°F (-51°C to +177°C)
• Pressure Rating: 500 psi (34 Bar) nitrogen
• Mounting Thread: 3/8-24 UNF
• Maximum Thread Engagement: 0.563 inch
• Probe Tip Material: Alumina ceramic
• Housing Material: 304 stainless steel
• Connector Type: Miniature ClickLoc coaxial
• Linear Range: 60 mils (1.52mm)
• Scale Factor Tolerance: ±6.5%

Installation Guidelines

• Mount in reverse orientation for space savings
• Connect using ClickLoc connector for quick setup
• Maintain 10-70 mils target distance for accuracy
• Secure cable properly despite short length
• Verify 7.45 ohms resistance after installation

Applications & Compatibility

• Ideal for tight-space machinery monitoring
• Works with Bently Nevada 3300 XL systems
• Perfect for OEM equipment integration
• Suits general industrial environments
• Compatible with AISI 4140 steel targets

Package Contents

• One 146055-05-02-00 reverse mount probe
• Original factory packaging
• Manufacturer documentation
• Installation guidance materials

Shipping & Service

• Fast worldwide shipping via FedEx
• UPS express delivery available
• DHL international service options
• 12-month quality guarantee included

Technical Questions Answered

What applications need short 0.5m cable?

Compact machinery with limited space. Applications where proximitor mounts close by. OEM equipment with integrated systems. Installations requiring minimal cable routing.

How does short cable affect electrical values?

Shorter cables show lower resistance values. This 0.5m model measures 7.45 ohms. System performance remains optimal. Calibration stays within specifications.

What maintenance does reverse mount need?

Regular visual inspection of mounting. Check connector for secure fit. Verify target gap periodically. Clean ceramic tip as needed.

Can this probe handle high-temperature environments?

Yes, rated for -51°C to +177°C operation. Ceramic tip withstands thermal cycling. Stainless steel maintains integrity. Suitable for most industrial applications.

What makes reverse mount different from standard?

Reverse mount allows alternative orientation. Solves clearance issues in tight spaces. Provides installation flexibility. Maintains same performance as standard mounts.
